Part Details for SN74ALS10AN by Texas Instruments
Results Overview of SN74ALS10AN by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (7 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74ALS10AN Information
SN74ALS10AN by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74ALS10AN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 783 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 5 | 447 |
|
$0.3665 / $1.1453 | Buy Now |
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
|
Rochester Electronics | SN74ALS10AN - Triple 3-Input Positive-NAND Gates RoHS: Not Compliant Status: Rochester Active Min Qty: 1 | 81023 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 717 |
|
RFQ | |
|
|
Component Electronics, Inc | DIP 14P TUBE | 119 |
|
$0.2500 / $0.3800 | Buy Now |
US Tariff Estimator: SN74ALS10AN by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74ALS10AN
SN74ALS10AN CAD Models
-

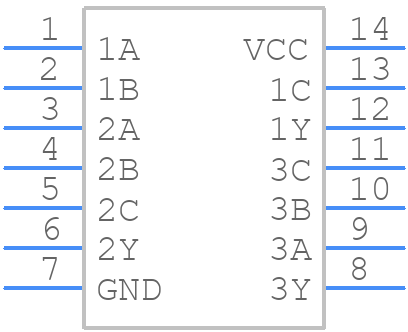

Part Symbol
-

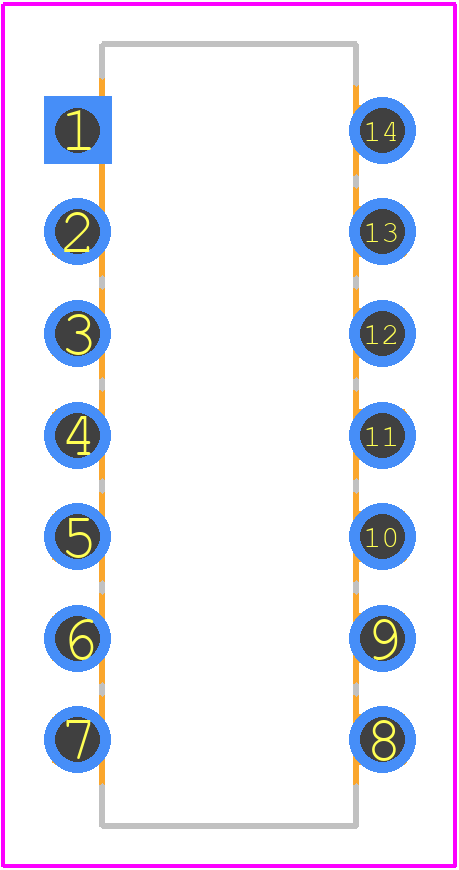

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74ALS10AN Part Data Attributes
|
|
SN74ALS10AN
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74ALS10AN
Texas Instruments
3-ch, 3-input, 4.5-V to 5.5-V bipolar NAND gates 14-PDIP 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip14,.3 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Family | Als | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.305 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Nand Gate | |
| Max I(ol) | 0.008 A | |
| Number of Functions | 3 | |
| Number of Inputs | 3 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Tube | |
| Power Supply Current-Max (ICC) | 2.2 Ma | |
| Prop. Delay@Nom-Sup | 11 Ns | |
| Propagation Delay (tpd) | 10 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | No | |
| Seated Height-Max | 5.08 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | No | |
| Technology | Ttl | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm |
Alternate Parts for SN74ALS10AN
This table gives cross-reference parts and alternative options found for SN74ALS10AN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74ALS10AN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SNJ54ALS10AJ | Texas Instruments | Check for Price | Military 3-ch, 3-input, 4.5-V to 5.5-V bipolar NAND gates 14-CDIP -55 to 125 | SN74ALS10AN vs SNJ54ALS10AJ |
| M38510/37002BCA | Texas Instruments | Check for Price | Military 3-ch, 3-input, 4.5-V to 5.5-V bipolar NAND gates 14-CDIP -55 to 125 | SN74ALS10AN vs M38510/37002BCA |
| SN74ALS10AN1 | Texas Instruments | Check for Price | IC,LOGIC GATE,3 3-INPUT NAND,ALS-TTL,DIP,14PIN,PLASTIC | SN74ALS10AN vs SN74ALS10AN1 |
| SN74ALS10AJ4 | Texas Instruments | Check for Price | IC,LOGIC GATE,3 3-INPUT NAND,ALS-TTL,DIP,14PIN,CERAMIC | SN74ALS10AN vs SN74ALS10AJ4 |
| 5962-8686501CA | Texas Instruments | Check for Price | Military 3-ch, 3-input, 4.5-V to 5.5-V bipolar NAND gates 14-CDIP -55 to 125 | SN74ALS10AN vs 5962-8686501CA |
| SN74ALS10ANP1 | Texas Instruments | Check for Price | IC,LOGIC GATE,3 3-INPUT NAND,ALS-TTL,DIP,14PIN,PLASTIC | SN74ALS10AN vs SN74ALS10ANP1 |
| SN74ALS10AJ | Texas Instruments | Check for Price | IC,LOGIC GATE,3 3-INPUT NAND,ALS-TTL,DIP,14PIN,CERAMIC | SN74ALS10AN vs SN74ALS10AJ |
SN74ALS10AN Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74ALS10AN is typically around 40 MHz, but it can vary depending on the specific application and operating conditions.
-
It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This helps to prevent unwanted output states during power-up and power-down.
-
The recommended operating voltage range for the SN74ALS10AN is 4.5V to 5.5V, with a typical operating voltage of 5V.
-
It is recommended to use a 0.1uF ceramic capacitor between the VCC pin and GND pin, and a 10uF electrolytic capacitor between the VCC pin and GND pin, to ensure proper decoupling and noise reduction.
-
The maximum input voltage that can be applied to the SN74ALS10AN is 7V, but it is recommended to keep the input voltage within the recommended operating voltage range of 4.5V to 5.5V to ensure proper operation.
