SN74AUP1G74DCURG4 Information
SN74AUP1G74DCURG4 by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AUP1G74DCURG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | Low-PowerSinglePositive-Edge-TriggeredD-TypeFlip-Flop8-VSSOP-40to85 | 88294 |
|
RFQ | |
|
|
Vyrian | Logic ICs | 1584 |
|
RFQ | |
|
|
Win Source Electronics | IC FF D-TYPE SNGL 1BIT 8VSSOP / Flip Flop 1 Element D-Type 1 Bit Positive Edge 8-VFSOP (0.091", 2.30mm Width) | 123310 |
|
$0.1543 / $0.1992 | Buy Now |
US Tariff Estimator: SN74AUP1G74DCURG4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AUP1G74DCURG4
SN74AUP1G74DCURG4 CAD Models
-

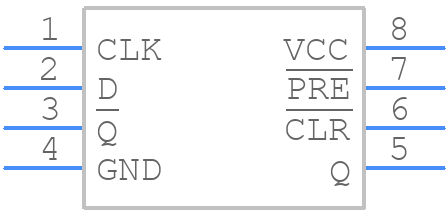

Part Symbol
-
Footprint
-

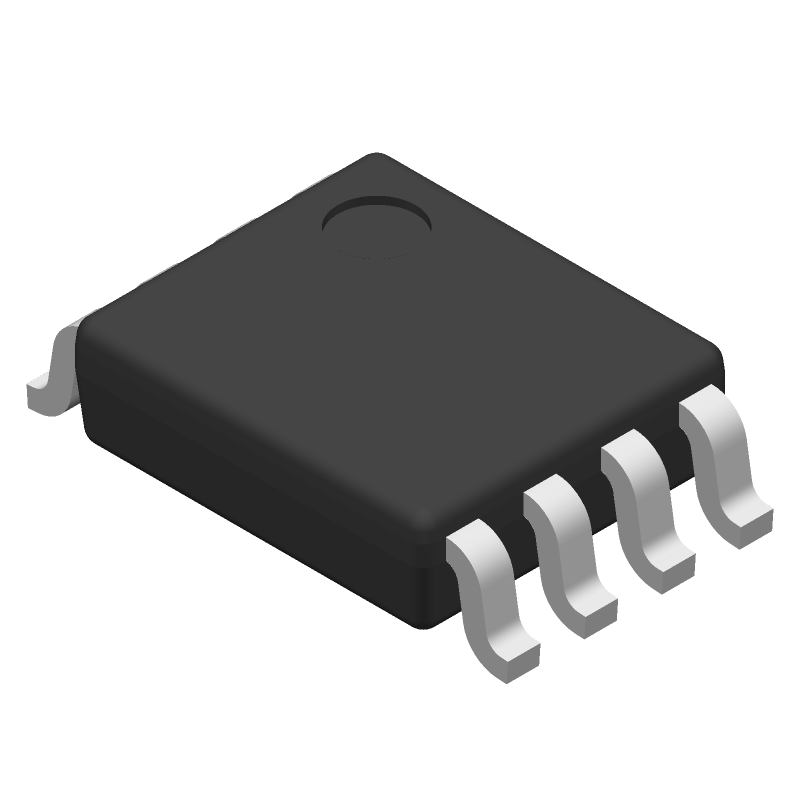

3D Model
