SN74AVC4T245DR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AVC4T245DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 3271 |
|
RFQ | ||
|
|
Ameya Holding Limited | SN74AVC4T245DR, 双 4位 非反相 总线收发器, 16针 SOIC封装 | 2500 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SN74AVC4T245DR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3318 |
|
$0.6000 / $1.0000 | Buy Now |
|
|
Chip Stock | Four-bitdual-supplybustransceiverwithconfigurablevoltage-levelshifting16-SOIC-40to85 | 30600 |
|
RFQ | |
|
|
LCSC | 380Mbps SOIC-16 Buffers Drivers Receivers Transceivers RoHS | 120 |
|
$0.5558 / $1.0730 | Buy Now |
|
|
Win Source Electronics | IC BUS TRANSCVR 4BIT 16SOIC | 27100 |
|
$0.5230 / $0.7845 | Buy Now |
US Tariff Estimator: SN74AVC4T245DR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AVC4T245DR
SN74AVC4T245DR CAD Models
-

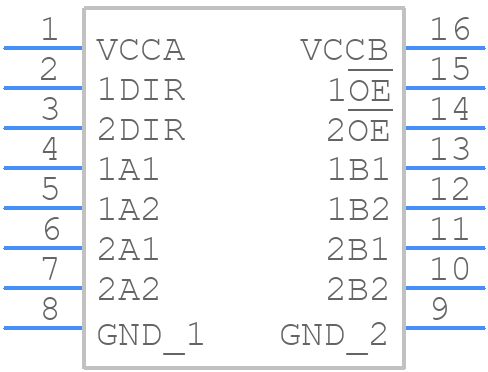

Part Symbol
-
