Part Details for SN74F04N by Texas Instruments
Results Overview of SN74F04N by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (9 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74F04N Information
SN74F04N by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74F04N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH5039
|
Newark | Ic, Inverter, Logic Family/Base Number:74F04, Logic Type:Inverter, Output Current:20Ma, No. Of Inputs:1, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Logic Case Style:Dip, No. Of Pins:14Pins, Logic Ic Family:74F, Logic Ic Baserohs Compliant: Yes |Texas Instruments SN74F04N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Bristol Electronics | Min Qty: 7 | 969 |
|
$0.2216 / $0.7916 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 727 |
|
$1.7909 / $4.3680 | Buy Now |
|
|
Bristol Electronics | 323 |
|
RFQ | ||
|
|
Rochester Electronics | Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14 RoHS: Compliant Status: Active Min Qty: 1 | 37362 |
|
$0.2705 / $0.4363 | Buy Now |
|
DISTI #
SN74F04N
|
TME | IC: digital, NOT, Ch: 6, THT, DIP14, 4.5÷5.5VDC, F Min Qty: 1 | 915 |
|
$0.2790 / $0.5700 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
DISTI #
SN74F04N
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Tube | 780 |
|
$0.2430 / $0.3510 | Buy Now |
|
|
Component Electronics, Inc | DIP 14P TUBE | 40 |
|
$0.5000 / $0.7700 | Buy Now |
US Tariff Estimator: SN74F04N by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74F04N
SN74F04N CAD Models
-

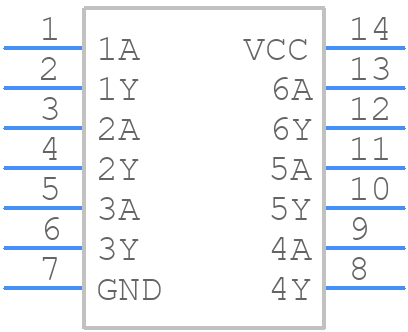

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74F04N Part Data Attributes
|
|
SN74F04N
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74F04N
Texas Instruments
6-ch, 4.5-V to 5.5-V bipolar inverters 14-PDIP 0 to 70
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip14,.3 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Family | F/Fast | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.305 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Inverter | |
| Max I(ol) | 0.02 A | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Tube | |
| Power Supply Current-Max (ICC) | 15.3 Ma | |
| Prop. Delay@Nom-Sup | 6 Ns | |
| Propagation Delay (tpd) | 6 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | No | |
| Seated Height-Max | 5.08 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | No | |
| Technology | Ttl | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm |
Alternate Parts for SN74F04N
This table gives cross-reference parts and alternative options found for SN74F04N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74F04N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74F04DC | National Semiconductor Corporation | Check for Price | IC F/FAST SERIES, HEX 1-INPUT INVERT GATE, CDIP14, Gate | SN74F04N vs 74F04DC |
| N74F04N,602 | Nexperia | Check for Price | Inverter | SN74F04N vs N74F04N,602 |
| N74F14N | YAGEO Corporation | Check for Price | Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14 | SN74F04N vs N74F14N |
| 54F04/BCAJC | Motorola Semiconductor Products | Check for Price | Inverter, F/FAST Series, 6-Func, 1-Input, TTL, CDIP14, CERDIP-14 | SN74F04N vs 54F04/BCAJC |
| M38510/33002SCA | NXP Semiconductors | Check for Price | IC F/FAST SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERAMIC, DIP-14, Gate | SN74F04N vs M38510/33002SCA |
| GD74F04 | Goldstar Electron Co Ltd | Check for Price | Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14, | SN74F04N vs GD74F04 |
| N74F14N | NXP Semiconductors | Check for Price | F/FAST SERIES, HEX 1-INPUT INVERT GATE, PDIP14, 0.300 INCH, PLASTIC, SOT-27-1, DIP-14 | SN74F04N vs N74F14N |
| N74F14N,602 | NXP Semiconductors | Check for Price | 74F14 - Hex inverter Schmitt trigger DIP 14-Pin | SN74F04N vs N74F14N,602 |
| 74F04SPC | Fairchild Semiconductor Corporation | Check for Price | Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14, SLIM, PLASTIC, DIP-14 | SN74F04N vs 74F04SPC |
SN74F04N Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the SN74F04N is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper power supply, connect VCC to a stable 5V power source, and GND to a reliable ground connection. Also, decouple the power supply with a 0.1uF capacitor to reduce noise and ensure stable operation.
-
The SN74F04N can sink or source up to 24mA of current per output, but it's recommended to limit the current to 16mA or less to ensure reliable operation.
-
The SN74F04N is designed to operate within a temperature range of 0°C to 70°C. To handle heat, ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high frequencies.
-
The SN74F04N is designed for 5V operation, but it can be used in a 3.3V system with some limitations. However, the output voltage will be reduced, and the device may not meet the specified propagation delay and rise/fall times.
