SN74LV244ATPWR Information
SN74LV244ATPWR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LV244ATPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC BUFF/DVR TRI-ST DUAL 20TSSOP | 1631 |
|
RFQ | |
|
|
LCSC | 4 20uA 4.5V5.5V 2 5.9ns5V50pF TSSOP-20 Buffers Drivers Receivers Transceivers RoHS | 2003 |
|
$0.3724 / $0.6875 | Buy Now |
US Tariff Estimator: SN74LV244ATPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LV244ATPWR
SN74LV244ATPWR CAD Models
-

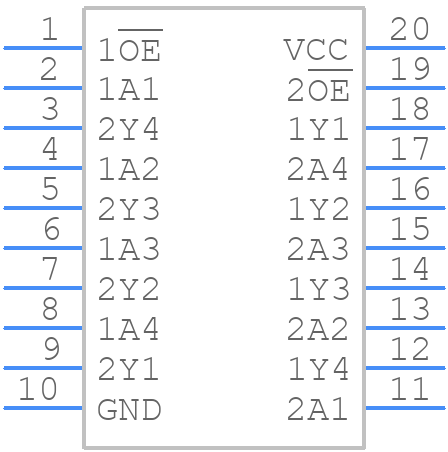

Part Symbol
-
