SN74LVC1G07QDBVRQ1 Information
SN74LVC1G07QDBVRQ1 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC1G07QDBVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 82 |
|
RFQ | ||
|
DISTI #
SN74LVC1G07QDBVRQ1
|
TME | IC: digital, buffer,non-inverting,line driver, Ch: 1, CMOS, SMD Min Qty: 1 | 1000 |
|
$0.1180 / $0.2460 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 769 |
|
RFQ | |
|
|
Win Source Electronics | SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT | 44960 |
|
$0.1104 / $0.1656 | Buy Now |
US Tariff Estimator: SN74LVC1G07QDBVRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LVC1G07QDBVRQ1
SN74LVC1G07QDBVRQ1 CAD Models
-

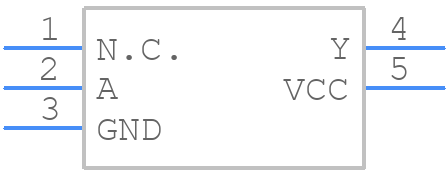

Part Symbol
-
