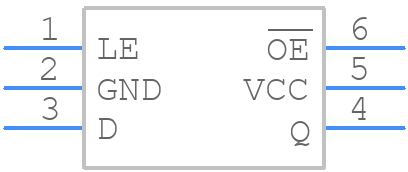

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC1G373DBVR by Texas Instruments
Overview of SN74LVC1G373DBVR by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (4 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
Price & Stock for SN74LVC1G373DBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42AH2013
|
Newark | D-Latch, Single, Tri State O/P, Sot-23-6, Logic Family/Base Number:74Lvc1G373, Latch Type:D Type, Ic Output Type:Tri State Non Inverted, Propagation Delay:3.5Ns, Output Current:32Ma, Logic Case Style:Sot-23, No. Of Pins:6Pins, Rohs Compliant: Yes |TEXAS INSTRUMENTS SN74LVC1G373DBVR Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 68 |
|
$0.0830 | Buy Now |
|
DISTI #
87W8551
|
Newark | D-Latch, Single, Tri State O/P, Sot-23-6, Logic Family/Base Number:74Lvc1G373, Latch Type:D Type, Ic Output Type:Tri State Non Inverted, Propagation Delay:3.5Ns, Output Current:32Ma, Logic Case Style:Sot-23, No. Of Pins:6Pins Rohs Compliant: Yes |TEXAS INSTRUMENTS SN74LVC1G373DBVR Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1280 | Buy Now |
|
DISTI #
296-18588-1-ND
|
DigiKey | IC LTCH D-TYP SGL 3-OUT SOT-23-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21323 In Stock |
|
$0.1063 / $0.4800 | Buy Now |
|
DISTI #
595-SN74LVC1G373DBVR
|
Mouser Electronics | Latches Sngl D Type Latch RoHS: Compliant | 9879 |
|
$0.0990 / $0.4400 | Buy Now |
|
|
Bristol Electronics | 1018 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 10 | 330 |
|
$0.1575 / $0.5250 | Buy Now |
|
|
Quest Components | BUS DRIVER, LVC/LCX/Z SERIES, 1-FUNC, 1-BIT, TRUE OUTPUT, CMOS, PDSO6 | 96 |
|
$0.1407 / $0.4690 | Buy Now |
|
|
Quest Components | BUS DRIVER, LVC/LCX/Z SERIES, 1-FUNC, 1-BIT, TRUE OUTPUT, CMOS, PDSO6 | 264 |
|
$0.1400 / $0.7000 | Buy Now |
|
|
Quest Components | BUS DRIVER, LVC/LCX/Z SERIES, 1-FUNC, 1-BIT, TRUE OUTPUT, CMOS, PDSO6 | 1548 |
|
$0.2229 / $0.7430 | Buy Now |
|
DISTI #
SN74LVC1G373DBVR
|
TME | IC: digital, D latch, Ch: 1, CMOS, 1.65÷5.5VDC, SMD, SOT23, -40÷125°C Min Qty: 3 | 0 |
|
$0.1490 / $0.3250 | RFQ |
Part Details for SN74LVC1G373DBVR
SN74LVC1G373DBVR CAD Models
SN74LVC1G373DBVR Part Data Attributes:
|
|
SN74LVC1G373DBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC1G373DBVR
Texas Instruments
Single D-Type Latch with 3S Output 6-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, PLASTIC, SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | ENABLE LOW/HIGH | |
| Count Direction | UNIDIRECTIONAL | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Load Capacitance (CL) | 15 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 17 ns | |
| Propagation Delay (tpd) | 16.3 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for SN74LVC1G373DBVR
This table gives cross-reference parts and alternative options found for SN74LVC1G373DBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC1G373DBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| 74LVC1G373DBVRG4 | LVC/LCX/Z SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO6, GREEN, PLASTIC, SOT-23, 6 PIN | Texas Instruments | SN74LVC1G373DBVR vs 74LVC1G373DBVRG4 |
| 74LVC1G373DBVRE4 | Single D-Type Latch with 3S Output 6-SOT-23 -40 to 125 | Texas Instruments | SN74LVC1G373DBVR vs 74LVC1G373DBVRE4 |
| SN74LVC1G373DBVR | LVC/LCX/Z SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO6, GREEN, PLASTIC, SOT-23, 6 PIN | Rochester Electronics LLC | SN74LVC1G373DBVR vs SN74LVC1G373DBVR |
| SN74LVC1G373DBVT | IC LVC/LCX/Z SERIES, 1-BIT DRIVER, TRUE OUTPUT, PDSO6, PLASTIC, SOT-23, 6 PIN, Bus Driver/Transceiver | Texas Instruments | SN74LVC1G373DBVR vs SN74LVC1G373DBVT |
