SN74LVC2G126DCUT by:
Texas Instruments

2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125

Part Details for SN74LVC2G126DCUT by Texas Instruments

Results Overview of SN74LVC2G126DCUT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Aerospace and Defense Healthcare Telecommunications Automotive

SN74LVC2G126DCUT Information

SN74LVC2G126DCUT by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SN74LVC2G126DCUT

Part # Distributor Description Stock Price Buy
DISTI # 40AH5405
Newark Logic, Bus Buff Tri-St Dl, 8Vssop, Logic Device Type:Buffer, Non Inverting, Logic Family/Base Number:74Lvc2G126, Logic Case Style:Vssop, No. Of Pins:8Pins, Supply Voltage Min:1.65V, Supply Voltage Max:5.5V, Logic Ic Family:74Lvc, Rohs Compliant: Yes |Texas Instruments SN74LVC2G126DCUT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
Buy Now
Bristol Electronics   500
RFQ
Bristol Electronics   Min Qty: 4 245
  • 4 $1.3372
  • 16 $0.8692
  • 59 $0.5014
  • 201 $0.4279
$0.4279 / $1.3372 Buy Now
Rochester Electronics Bus Driver, LVC/LCX/Z Series, 2-Func, 1-Bit, True Output, CMOS, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 245
  • 100 $0.6418
  • 500 $0.5776
  • 1,000 $0.5327
  • 10,000 $0.4749
  • 100,000 $0.3979
$0.3979 / $0.6418 Buy Now
DISTI # SN74LVC2G126DCUT-0
TME IC: digital, buffer,non-inverting,line driver, IN: 2, CMOS, SMD Min Qty: 250 250
  • 250 $0.7183
  • 750 $0.7170
$0.7170 / $0.7183 Buy Now
Ameya Holding Limited DUAL BUS BUFFER GATE WITH 3-STATE OUTPUTS 14
RFQ
ComSIT USA AVAILABLE EU 321
RFQ
Chip Stock Buffer/LineDriver2-CHNon-Inverting3-STCMOS8-PinVSSOPT/R 40560
RFQ
LCSC 1.65V5.5V VSSOP-8-0.5mm Buffers Drivers Receivers Transceivers RoHS 30
  • 1 $0.1935
  • 10 $0.1889
  • 30 $0.1858
  • 100 $0.1827
$0.1827 / $0.1935 Buy Now
Win Source Electronics IC BUS BUFF TRI-ST DL US8 55560
  • 420 $0.1195
  • 895 $0.1118
  • 1,390 $0.1080
  • 1,995 $0.1003
  • 2,595 $0.0964
  • 3,240 $0.0926
$0.0926 / $0.1195 Buy Now

US Tariff Estimator: SN74LVC2G126DCUT by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SN74LVC2G126DCUT
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SN74LVC2G126DCUT

SN74LVC2G126DCUT CAD Models

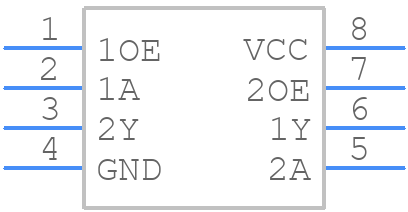

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN74LVC2G126DCUT Part Data Attributes

Parametric Data
SN74LVC2G126DCUT Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74LVC2G126DCUT Texas Instruments 2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOIC
Package Description Vssop, Tssop8,.12,20
Pin Count 8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.60
Control Type Enable High
Count Direction Unidirectional
Family Lvc/Lcx/Z
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 2.3 Mm
Load Capacitance (CL) 50 Pf
Logic IC Type Bus Driver
Max I(ol) 0.032 A
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 2
Number of Ports 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Characteristics 3-State
Output Polarity True
Package Body Material Plastic/Epoxy
Package Code VSSOP
Package Equivalence Code TSSOP8,.12,20
Package Shape Rectangular
Package Style Small Outline, Very Thin Profile, Shrink Pitch
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.01 Ma
Prop. Delay@Nom-Sup 4 Ns
Propagation Delay (tpd) 9.8 Ns
Qualification Status Not Qualified
Seated Height-Max 0.9 Mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.65 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 2 Mm

Alternate Parts for SN74LVC2G126DCUT

This table gives cross-reference parts and alternative options found for SN74LVC2G126DCUT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC2G126DCUT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SN74LVC2G126DCUR Rochester Electronics LLC Check for Price LVC/LCX/Z SERIES, DUAL 1-BIT DRIVER, TRUE OUTPUT, PDSO8, GREEN, PLASTIC, VSSOP-8 SN74LVC2G126DCUT vs SN74LVC2G126DCUR
74LVC2G126DCUTE4 Texas Instruments Check for Price Dual Bus Buffer Gate With 3-State Outputs 8-VSSOP -40 to 125 SN74LVC2G126DCUT vs 74LVC2G126DCUTE4
SN74LVC2G126DCUT Rochester Electronics LLC Check for Price LVC/LCX/Z SERIES, DUAL 1-BIT DRIVER, TRUE OUTPUT, PDSO8, GREEN, PLASTIC, VSSOP-8 SN74LVC2G126DCUT vs SN74LVC2G126DCUT
74LVC2G126DC NXP Semiconductors Check for Price LVC/LCX/Z SERIES, DUAL 1-BIT DRIVER, TRUE OUTPUT, PDSO8, 2.30 MM, PLASTIC, MO-187, SOT765-1, VSSOP-8 SN74LVC2G126DCUT vs 74LVC2G126DC
Part Number Manufacturer Composite Price Description Compare
SN74LVC2G126DCUR Texas Instruments $0.2187 2-ch, 1.65-V to 5.5-V buffers with 3-state outputs 8-VSSOP -40 to 125 SN74LVC2G126DCUT vs SN74LVC2G126DCUR
74LVC2G126DC-Q100 Nexperia Check for Price Bus Driver, LVC/LCX/Z Series, 2-Func, 1-Bit, True Output, CMOS, PDSO8 SN74LVC2G126DCUT vs 74LVC2G126DC-Q100
74LVC2G126DC Nexperia Check for Price Bus Driver, LVC/LCX/Z Series, 2-Func, 1-Bit, True Output, CMOS, PDSO8 SN74LVC2G126DCUT vs 74LVC2G126DC
935300912125 Nexperia Check for Price Bus Driver, LVC/LCX/Z Series, 2-Func, 1-Bit, True Output, CMOS, PDSO8 SN74LVC2G126DCUT vs 935300912125
74LVC2G126DC-G NXP Semiconductors Check for Price Dual bus buffer/line driver; 3-state - Description: 3.3V Dual Buffer/Line Driver with Active LOW Output Enable (3-State) ; Logic switching levels: TTL ; Number of pins: 8 ; Output drive capability: +/- 32 mA ; Power dissipation considerations: Low Power or Battery Applications ; Propagation delay: 2.4@3.3V ns; Voltage: 1.65 - 5.5 SN74LVC2G126DCUT vs 74LVC2G126DC-G
74LVC2G125DC-Q100H Nexperia Check for Price 74LVC2G125-Q100 - Dual bus buffer/line driver; 3-state@en-us SSOP 8-Pin SN74LVC2G126DCUT vs 74LVC2G125DC-Q100H
935300892125 Nexperia Check for Price Bus Driver, LVC/LCX/Z Series, 2-Func, 1-Bit, True Output, CMOS, PDSO8 SN74LVC2G126DCUT vs 935300892125
74LVC2G126DC-Q100 NXP Semiconductors Check for Price LVC/LCX/Z SERIES, DUAL 1-BIT DRIVER, TRUE OUTPUT, PDSO8 SN74LVC2G126DCUT vs 74LVC2G126DC-Q100
SN74LVC2G126DCU Texas Instruments Check for Price LVC/LCX/Z SERIES, DUAL 1-BIT DRIVER, TRUE OUTPUT, PDSO8, PLASTIC, TSSOP-8 SN74LVC2G126DCUT vs SN74LVC2G126DCU
74LVC2G126DCURG4 Texas Instruments Check for Price LVC/LCX/Z SERIES, DUAL 1-BIT DRIVER, TRUE OUTPUT, PDSO8, GREEN, PLASTIC, VSSOP-8 SN74LVC2G126DCUT vs 74LVC2G126DCURG4
