Part Details for SN74LVC4245APWR by Texas Instruments
Results Overview of SN74LVC4245APWR by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (7 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
SN74LVC4245APWR Information
SN74LVC4245APWR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74LVC4245APWR | Texas Instruments | Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs 24-TSSOP -40 to 85 | |
| SN74LVC4245APWRG4 | Texas Instruments | Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs 24-TSSOP -40 to 85 | |
| SN74LVC4245APWRE4 | Texas Instruments | Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs 24-TSSOP -40 to 85 |
Price & Stock for SN74LVC4245APWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH1506
|
Newark | Ic, Transceiver, Octal, Smd, Logic Device Type:Transceiver, Non Inverting, Logic Family/Base Number:74Lvc424, Logic Case Style:Tssop, No. Of Pins:24Pins, Supply Voltage Min:2.7V, Supply Voltage Max:3.6V, Logic Ic Family:74Lvc, Rohs Compliant: Yes |Texas Instruments SN74LVC4245APWR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1428 |
|
$0.9310 / $1.1800 | Buy Now |
|
|
Bristol Electronics | 1855 |
|
RFQ | ||
|
|
Bristol Electronics | 295 |
|
RFQ | ||
|
|
Bristol Electronics | 1 |
|
RFQ | ||
|
DISTI #
SN74LVC4245APWR
|
TME | IC: digital, bus transceiver, Ch: 8, SMD, TSSOP24, -40÷85°C, 74LVC Min Qty: 1 | 1779 |
|
$0.5430 / $1.0100 | Buy Now |
|
|
Ameya Holding Limited | IC: digital, 3-state,8bit,bus transceiver,non-inverting, SMD | 969 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SN74LVC4245APWR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3160 |
|
$0.5600 / $1.0600 | Buy Now |
|
|
Chip Stock | OctalBusTransceiverAnd3.3-VTo5-VShifterWith3-StateOutputs24-TSSOP-40to85 | 194980 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT TUBE | 20 |
|
$1.0000 / $1.5400 | Buy Now |
US Tariff Estimator: SN74LVC4245APWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LVC4245APWR
SN74LVC4245APWR CAD Models
-

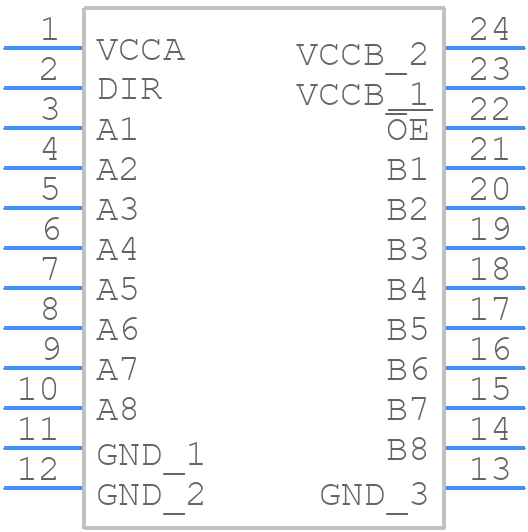

Part Symbol
-

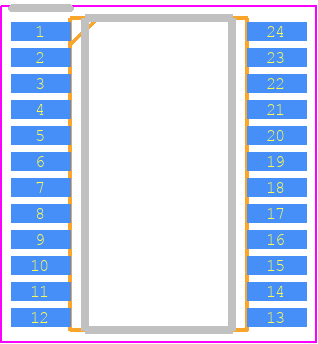

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74LVC4245APWR Part Data Attributes
|
|
SN74LVC4245APWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC4245APWR
Texas Instruments
Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs 24-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop24,.25 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | 5v Supply For Port A; 3.3v Supply For Port B | |
| Control Type | Common Control | |
| Count Direction | Bidirectional | |
| Family | Lvc/Lcx/Z | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Transceiver | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.13 Ma | |
| Prop. Delay@Nom-Sup | 6.7 Ns | |
| Propagation Delay (tpd) | 6.7 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
Alternate Parts for SN74LVC4245APWR
This table gives cross-reference parts and alternative options found for SN74LVC4245APWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC4245APWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC4245APWE4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO24, GREEN, PLASTIC, TSSOP-24 | SN74LVC4245APWR vs SN74LVC4245APWE4 |
SN74LVC4245APWR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC4245APWR is 100 MHz.
-
Yes, the SN74LVC4245APWR is 5V tolerant, meaning it can accept input voltages up to 5.5V even though its recommended operating voltage is 1.65V to 3.6V.
-
The propagation delay of the SN74LVC4245APWR is approximately 2.5 ns at 3.3V and 25°C.
-
Yes, the SN74LVC4245APWR is suitable for high-temperature applications, with an operating temperature range of -40°C to 125°C.
-
The power consumption of the SN74LVC4245APWR is typically 10 μA at 3.3V and 25°C, making it a low-power device.
