SN74LVCC4245APWR Information
SN74LVCC4245APWR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74LVCC4245APWRE4 | Texas Instruments | Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs 24-TSSOP -40 to 85 | |
| SN74LVCC4245APWRG4 | Texas Instruments | Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs 24-TSSOP -40 to 85 | |
| SN74LVCC4245APWR | Texas Instruments | Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs 24-TSSOP -40 to 85 |
Price & Stock for SN74LVCC4245APWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 3 | 1217 |
|
$0.6051 / $1.8336 | Buy Now |
|
|
Ameya Holding Limited | SN74LVCC4245APWR , 8位 非反相 总线收发器, 24针 TSSOP封装 | 53700 |
|
RFQ | |
|
|
ComSIT USA | OCTAL DUAL-SUPPLY BUS TRANSCEIVER Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SN74LVCC4245APWR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 4106 |
|
$0.7530 / $1.8200 | Buy Now |
|
|
Component Electronics, Inc | SMT TAPE | 46 |
|
$0.7500 / $1.1500 | Buy Now |
|
|
LCSC | 1 8 TSSOP-24 Translators Level Shifters RoHS | 1023 |
|
$0.2013 / $0.4474 | Buy Now |
US Tariff Estimator: SN74LVCC4245APWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LVCC4245APWR
SN74LVCC4245APWR CAD Models
-
Part Symbol
-

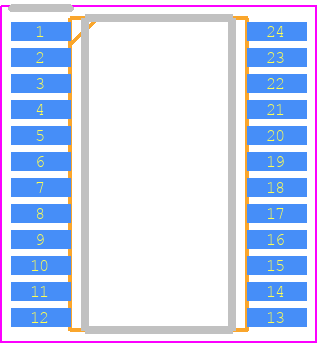

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74LVCC4245APWR Part Data Attributes
|
|
SN74LVCC4245APWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVCC4245APWR
Texas Instruments
Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs 24-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop24,.25 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Control Type | Common Control | |
| Count Direction | Bidirectional | |
| Family | Lvc/Lcx/Z | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Transceiver | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.13 Ma | |
| Prop. Delay@Nom-Sup | 7.1 Ns | |
| Propagation Delay (tpd) | 7.1 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
Alternate Parts for SN74LVCC4245APWR
This table gives cross-reference parts and alternative options found for SN74LVCC4245APWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVCC4245APWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVCC4245APWT | Texas Instruments | $0.6991 | Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs 24-TSSOP -40 to 85 | SN74LVCC4245APWR vs SN74LVCC4245APWT |
| HD74LVCC4245ATEL | Renesas Electronics Corporation | Check for Price | LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO24, 4.40 X 7.80 MM, 0.65 PITCH, PLASTIC, TSSOP-24 | SN74LVCC4245APWR vs HD74LVCC4245ATEL |
| SN74LVCC4245APWE4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO24, GREEN, PLASTIC, TSSOP-24 | SN74LVCC4245APWR vs SN74LVCC4245APWE4 |
| PI74LVCC4245ALX | Pericom Semiconductor Corporation | Check for Price | Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.173 INCH, PLASTIC, TSSOP-24 | SN74LVCC4245APWR vs PI74LVCC4245ALX |
| SN74LVCC4245APWRG4 | Texas Instruments | Check for Price | Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs 24-TSSOP -40 to 85 | SN74LVCC4245APWR vs SN74LVCC4245APWRG4 |
| SN74LVCC4245PWLE | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO24 | SN74LVCC4245APWR vs SN74LVCC4245PWLE |
| HD74LVCC4245ATEL | Hitachi Ltd | Check for Price | Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, TSSOP-24 | SN74LVCC4245APWR vs HD74LVCC4245ATEL |
SN74LVCC4245APWR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVCC4245APWR is 250 MHz.
-
Yes, the SN74LVCC4245APWR is 3.3V tolerant, making it compatible with 3.3V systems.
-
The propagation delay of the SN74LVCC4245APWR is approximately 2.5 ns.
-
Yes, the SN74LVCC4245APWR can be used in a 5V system, but it requires an external voltage regulator to step down the voltage to 3.3V.
-
Yes, the SN74LVCC4245APWR is lead-free and RoHS (Restriction of Hazardous Substances) compliant.
