SN74LVT16245BDL Information
SN74LVT16245BDL by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVT16245BDL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
|
Chip Stock | 3.3-VABT16-BitBusTransceiversWith3-StateOutputs48-SSOP-40to85 | 5300 |
|
RFQ |
US Tariff Estimator: SN74LVT16245BDL by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74LVT16245BDL
SN74LVT16245BDL CAD Models
-

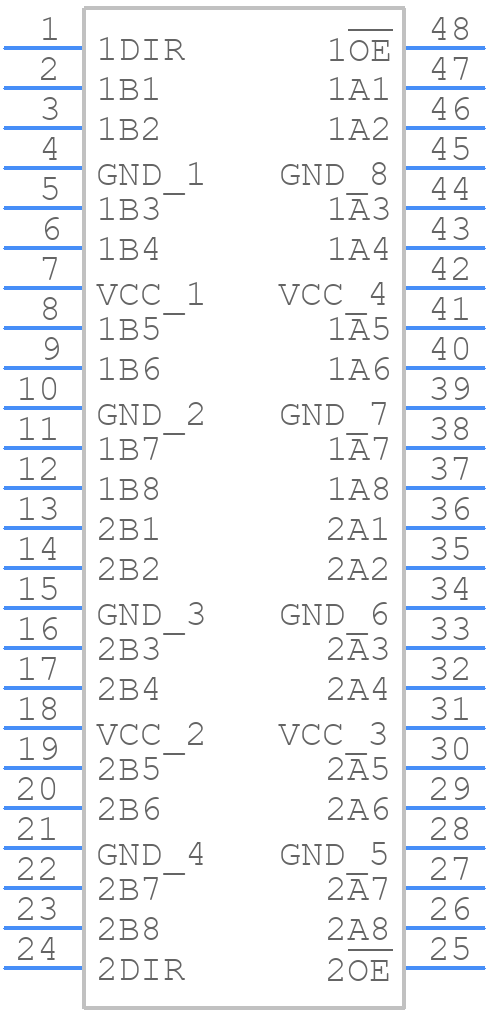

Part Symbol
-

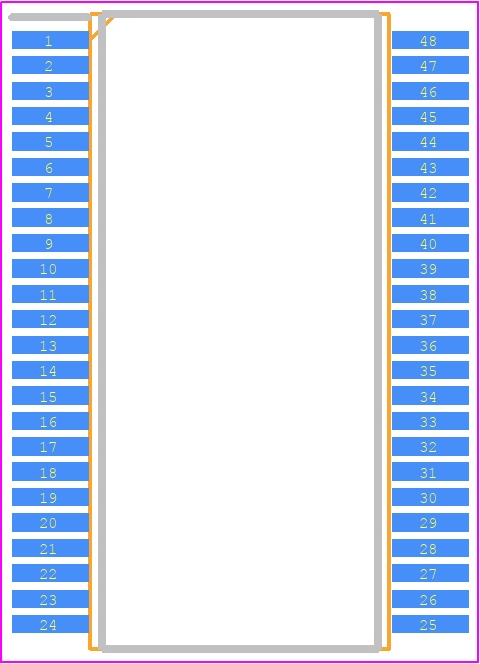

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74LVT16245BDL Part Data Attributes
|
|
SN74LVT16245BDL
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVT16245BDL
Texas Instruments
3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs 48-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SSOP | |
| Package Description | Ssop, Ssop48,.4 | |
| Pin Count | 48 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | With Direction Control | |
| Control Type | Common Control | |
| Count Direction | Bidirectional | |
| Family | Lvt | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e4 | |
| Length | 15.875 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Bus Transceiver | |
| Max I(ol) | 0.064 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 16 | |
| Number of Ports | 2 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP48,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 5 Ma | |
| Prop. Delay@Nom-Sup | 3.7 Ns | |
| Propagation Delay (tpd) | 3.7 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | No | |
| Seated Height-Max | 2.79 Mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.635 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.49 Mm |
Alternate Parts for SN74LVT16245BDL
This table gives cross-reference parts and alternative options found for SN74LVT16245BDL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVT16245BDL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74ALVTH162245DL | Texas Instruments | $0.9144 | 2.5-V/3.3-V 16-Bit Bus Transceivers With 3-State Outputs 48-SSOP -40 to 85 | SN74LVT16245BDL vs SN74ALVTH162245DL |
| 74LVT16245DL-T | NXP Semiconductors | Check for Price | IC LVT SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver | SN74LVT16245BDL vs 74LVT16245DL-T |
| PI74LCX16245V | Pericom Semiconductor Corporation | Check for Price | Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48 | SN74LVT16245BDL vs PI74LCX16245V |
| SN74LVTH16245BDL | Texas Instruments | Check for Price | LVT SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, PLASTIC, SSOP-48 | SN74LVT16245BDL vs SN74LVTH16245BDL |
| PI74LPT16245VE | Pericom Semiconductor Corporation | Check for Price | Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, GREEN, PLASTIC, SSOP-48 | SN74LVT16245BDL vs PI74LPT16245VE |
| PI74LPT16245AV | Pericom Semiconductor Corporation | Check for Price | Bus Transceiver, LPT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48 | SN74LVT16245BDL vs PI74LPT16245AV |
| 935238460112 | Nexperia | Check for Price | Bus Transceiver, LVC/LCX/Z Series, 16-Func, 1-Bit, True Output, CMOS, PDSO48 | SN74LVT16245BDL vs 935238460112 |
| PI74LVTC16245V | Pericom Semiconductor Corporation | Check for Price | Bus Transceiver, LVT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, PLASTIC, SSOP-48 | SN74LVT16245BDL vs PI74LVTC16245V |
| PI74LCX16245VX | Pericom Semiconductor Corporation | Check for Price | Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-48 | SN74LVT16245BDL vs PI74LCX16245VX |
| SN74LVT16245ADLRG4 | Texas Instruments | Check for Price | 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs 48-SSOP -40 to 85 | SN74LVT16245BDL vs SN74LVT16245ADLRG4 |
SN74LVT16245BDL Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVT16245BDL is 100 MHz.
-
Yes, the SN74LVT16245BDL is 3.3V tolerant, meaning it can accept input signals up to 3.3V even though its VCC is 2.5V or lower.
-
The propagation delay of the SN74LVT16245BDL is approximately 2.5 ns.
-
No, the SN74LVT16245BDL is not recommended for use in a 5V system. It is designed to operate at 2.5V or lower.
-
Yes, the SN74LVT16245BDL has a flow-through pinout, which means that the input pins are on one side of the package and the output pins are on the other side, making it easier to layout on a PCB.
