SP3243EUEA-L/TR Information
SP3243EUEA-L/TR by MaxLinear Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SP3243EUEA-L/TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SP3243EUEA-L/TR
|
Avnet Americas | RS-232 1MBPS 3TX/5RX TRANSCEIVER, 3V TO - Tape and Reel (Alt: SP3243EUEA-L/TR) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Reel | 1500 |
|
$0.5980 / $0.6104 | Buy Now |
|
|
Chip Stock | TripleTransmitterQuintReceiverRS-23228-PinSSOPT/R/ICTXRXRS232INTELLIGENT28SSOP | 24490 |
|
RFQ | |
|
|
Flip Electronics | Stock, ship today | 203500 |
|
RFQ | |
|
|
LCSC | Transceiver 3V5.5V SSOP-28-208mil Drivers Receivers Transceivers RoHS | 11104 |
|
$0.4935 / $0.9978 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1500 | 9000 |
|
$0.8462 / $0.9167 | Buy Now |
US Tariff Estimator: SP3243EUEA-L/TR by MaxLinear Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SP3243EUEA-L/TR
SP3243EUEA-L/TR CAD Models
-

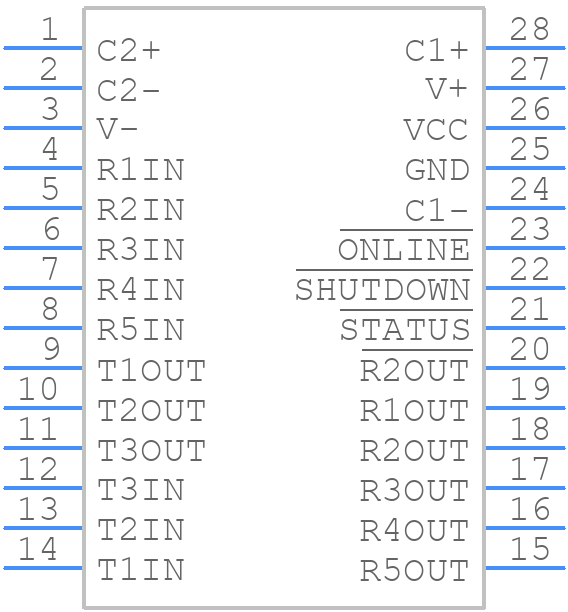

Part Symbol
-
Footprint
-

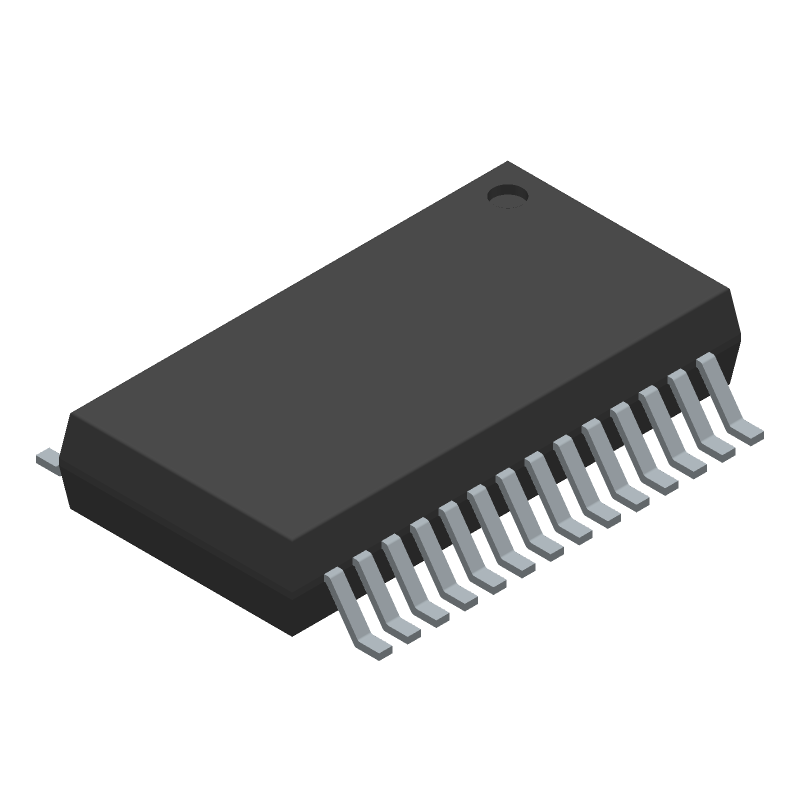

3D Model
