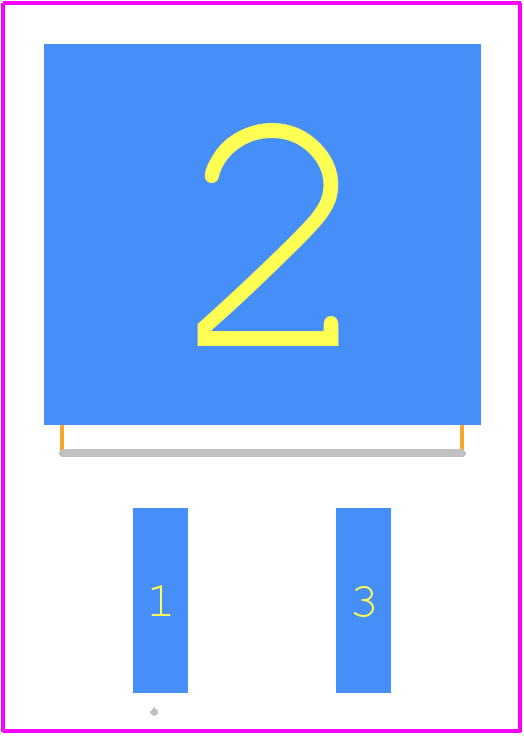

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPB17N80C3 by Infineon Technologies AG
Results Overview of SPB17N80C3 by Infineon Technologies AG
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
SPB17N80C3 Information
SPB17N80C3 by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SPB17N80C3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SPB17N80C3
|
TME | Transistor: N-MOSFET, unipolar, 800V, 17A, 227W, PG-TO263-3 Min Qty: 1 | 323 |
|
$3.9300 / $5.7100 | Buy Now |
|
|
Ameya Holding Limited | 800V,17A,N channel Power MOSFET | 20000 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
LCSC | 800V 17A 227W 290m10V11A 3.9V 1 N-Channel TO-263 Single FETs MOSFETs RoHS | 1075 |
|
$0.8931 / $1.6795 | Buy Now |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 9720 |
|
$2.2700 / $3.0300 | Buy Now |
|
DISTI #
SPB17N80C3
|
Maritex | MOSFET Devices, INFINEON, SPB17N80C3, 800 V, 17 A, 20 V, 227 W Min Qty: 1 Package Multiple: 1 | 11578 |
|
$1.7150 / $3.7830 | Buy Now |
|
|
Win Source Electronics | MOSFET N-CH 800V 17A D2PAK | 69600 |
|
$1.2011 / $1.5513 | Buy Now |
Part Details for SPB17N80C3
SPB17N80C3 CAD Models
SPB17N80C3 Part Data Attributes
|
|
SPB17N80C3
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
SPB17N80C3
Infineon Technologies AG
Power Field-Effect Transistor, 17A I(D), 800V, 0.29ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, ROHS COMPLIANT, PLASTIC, TO-263, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | D2PAK | |
| Package Description | ROHS COMPLIANT, PLASTIC, TO-263, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 670 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 800 V | |
| Drain Current-Max (ID) | 17 A | |
| Drain-source On Resistance-Max | 0.29 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 208 W | |
| Pulsed Drain Current-Max (IDM) | 51 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Element Material | SILICON |
