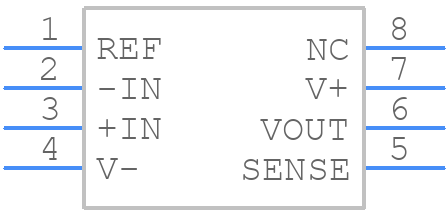

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SSM2143S by Analog Devices Inc
Results Overview of SSM2143S by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SSM2143S Information
SSM2143S by Analog Devices Inc is an Other Analog IC.
Other Analog ICs are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for SSM2143S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 60 |
|
RFQ | ||
|
|
Chip Stock | Non-RoHSCompliantR-PDSO-G8TINLEADTubeopampbuffercircuit4.9mm45mA6V7MHz | 3600 |
|
RFQ | |
|
|
Component Electronics, Inc | SMT | 5 |
|
$2.0000 / $3.0800 | Buy Now |
Part Details for SSM2143S
SSM2143S CAD Models
SSM2143S Part Data Attributes
|
|
SSM2143S
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
SSM2143S
Analog Devices Inc
IC SPECIALTY ANALOG CIRCUIT, PDSO8, SOIC-8, Analog IC:Other
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOIC | |
| Package Description | Sop, | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| Analog IC - Other Type | Analog Circuit | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -18 V | |
| Neg Supply Voltage-Min (Vsup) | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 6 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin Lead | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for SSM2143S
This table gives cross-reference parts and alternative options found for SSM2143S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SSM2143S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| INA157UA | Texas Instruments | $1.7618 | High-Speed, Precision Difference Amplifier 8-SOIC | SSM2143S vs INA157UA |
| INA157U/2K5 | Texas Instruments | $1.8640 | High-Speed, Precision Difference Amplifier 8-SOIC | SSM2143S vs INA157U/2K5 |
| INA157U | Texas Instruments | $2.4849 | High-Speed, Precision Difference Amplifier 8-SOIC -40 to 85 | SSM2143S vs INA157U |
| INA157U/2K5E4 | Texas Instruments | Check for Price | SPECIALTY ANALOG CIRCUIT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | SSM2143S vs INA157U/2K5E4 |
| SSM-2143S | Analog Devices Inc | Check for Price | IC SPECIALTY ANALOG CIRCUIT, PDSO8, SOIC-8, Analog IC:Other | SSM2143S vs SSM-2143S |
| INA157UAG4 | Texas Instruments | Check for Price | High-Speed, Precision Difference Amplifier 8-SOIC | SSM2143S vs INA157UAG4 |
