Part Details for SST25VF512A-33-4C-SAE by Microchip Technology Inc
Results Overview of SST25VF512A-33-4C-SAE by Microchip Technology Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SST25VF512A-33-4C-SAE Information
SST25VF512A-33-4C-SAE by Microchip Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for SST25VF512A-33-4C-SAE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92R4588
|
Newark | Flash Memory, 512 Kbit, 33 Mhz, 8-Soic, Flash Memory Type:Serial Nor, Memory Configuration:64K X 8Bit, Interfaces:Spi, Ic Case/Package:Soic, No. Of Pins:8Pins, Clock Frequency Max:33Mhz, Access Time:-, Supply Voltage Min:2.7V Rohs Compliant: Yes |Microchip SST25VF512A-33-4C-SAE RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5500 | Buy Now |
|
DISTI #
SST25VF512A-33-4C-SAE
|
Avnet Americas | NOR Flash Serial-SPI 3.3V 512Kbit 64K x 8bit 12ns 8-Pin SOIC N Tube - Rail/Tube (Alt: SST25VF512A-33-4C-SAE) COO: Thailand RoHS: Compliant Min Qty: 1600 Package Multiple: 100 Lead time: 4 Weeks, 0 Days Container: Tube | 0 |
|
$0.4125 / $0.4714 | Buy Now |
|
DISTI #
SST25VF512A-33-4C-SAE
|
Microchip Technology Inc | 2.7V to 3.6V 512Kbit SPI Serial Flash, SOIC, Projected EOL: 2035-10-02 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 438 and Alternates Available |
|
$0.4800 / $0.5900 | Buy Now |
|
DISTI #
70048111
|
RS | IC, MEMORY, TYPE, SERIAL SPI,512K (64KX8),33MHZ, SOIC-8 Min Qty: 1600 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5300 / $0.5900 | RFQ |
|
|
Bristol Electronics | 158 |
|
RFQ | ||
|
DISTI #
25VF512A-33CSAE
|
TME | IC: FLASH memory, 512kbFLASH, SPI, 33MHz, 2.7÷3.6V, SO8, serial Min Qty: 1 | 0 |
|
$0.5700 / $0.9900 | RFQ |
|
DISTI #
SST25VF512A-33-4C-SAE
|
IBS Electronics | NAND FLASH SERIAL-SPI 3.3V 512KBIT 64K X 8BIT 12NS 8-PIN SOIC N TUBE Min Qty: 100 Package Multiple: 1 | 1600 |
|
$0.4988 / $0.5530 | Buy Now |
|
|
NAC | 2.7V to 3.6V 512Kbit SPI Serial Flash. Package: 8 SOIC 3.90mm(.150in) TUBE - SER NOR Flash Product Line RoHS: Compliant Min Qty: 800 Package Multiple: 100 Container: Tube | 0 |
|
$0.4100 / $0.5100 | Buy Now |
|
DISTI #
SST25VF512A-33-4C-SAE
|
Avnet Silica | NOR Flash SerialSPI 33V 512Kbit 64K x 8bit 12ns 8Pin SOIC N Tube (Alt: SST25VF512A-33-4C-SAE) RoHS: Compliant Min Qty: 1600 Package Multiple: 100 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SST25VF512A-33-4C-SAE
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Tube | 4677 |
|
$0.3530 / $0.4430 | Buy Now |
US Tariff Estimator: SST25VF512A-33-4C-SAE by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SST25VF512A-33-4C-SAE
SST25VF512A-33-4C-SAE CAD Models
-

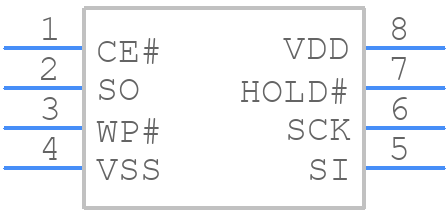

Part Symbol
-

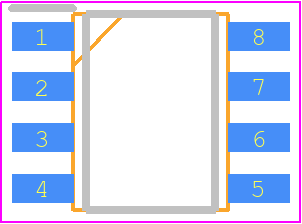

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SST25VF512A-33-4C-SAE Part Data Attributes
|
|
SST25VF512A-33-4C-SAE
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SST25VF512A-33-4C-SAE
Microchip Technology Inc
2.7V to 3.6V 512Kbit SPI Serial Flash
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOIC-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 6 Weeks | |
| Clock Frequency-Max (fCLK) | 33 Mhz | |
| Data Retention Time-Min | 100 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Memory Density | 524288 Bit | |
| Memory IC Type | Flash | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 65536 Words | |
| Number of Words Code | 64000 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 64kx8 | |
| Output Characteristics | 3-State | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Parallel/Serial | Serial | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Serial Bus Type | Spi | |
| Standby Current-Max | 0.000015 A | |
| Supply Current-Max | 0.03 Ma | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Type | Nor Type | |
| Width | 3.9 Mm | |
| Write Protection | Hardware/Software |
Alternate Parts for SST25VF512A-33-4C-SAE
This table gives cross-reference parts and alternative options found for SST25VF512A-33-4C-SAE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SST25VF512A-33-4C-SAE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SST25VF512A-33-4I-SAE | Microchip Technology Inc | $0.3648 | 2.7V to 3.6V 512Kbit SPI Serial Flash | SST25VF512A-33-4C-SAE vs SST25VF512A-33-4I-SAE |
SST25VF512A-33-4C-SAE Frequently Asked Questions (FAQ)
-
The SST25VF512A has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
-
The hold pin (HOLD#) is used to pause the serial flash memory operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume. Make sure to follow the timing specifications in the datasheet.
-
The recommended power-up sequence is to apply VCC first, followed by the clock signal (SCK), and then the chip select (CS#) and other signals. This ensures proper initialization of the device.
-
The WP# pin is used to enable or disable write protection. To enable write protection, pull the WP# pin low. To disable write protection, pull the WP# pin high or leave it floating.
-
The maximum operating frequency for the SST25VF512A is 33 MHz, as indicated by the '33' in the part number.
