Part Details for SST39VF1601-70-4I-EKE-T by Microchip Technology Inc
Results Overview of SST39VF1601-70-4I-EKE-T by Microchip Technology Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
SST39VF1601-70-4I-EKE-T Information
SST39VF1601-70-4I-EKE-T by Microchip Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for SST39VF1601-70-4I-EKE-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44AC2879
|
Newark | Flash Memory, 16Mbit, 70Ns, Tsop-48, Flash Memory Type:Parallel Nor, Memory Size:16Mbit, Flash Memory Configuration:1M X 16Bit, Ic Interface Type:Cfi, Parallel, Memory Case Style:Tsop, No. Of Pins:48Pins, Clock Frequency:-, Access Rohs Compliant: Yes |Microchip SST39VF1601-70-4I-EKE-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1931 |
|
$4.2700 / $4.7100 | Buy Now |
|
DISTI #
92R4772
|
Newark | 2.7V To 3.6V 16Mbit Multi-Purpose Flash 48 Tsop 12X20Mm T/R Rohs Compliant: Yes |Microchip SST39VF1601-70-4I-EKE-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$4.4000 | Buy Now |
|
DISTI #
SST39VF1601-70-4I-EKE-T
|
Avnet Americas | NOR Flash Parallel 3.3V 16Mbit 1M x 16bit 70ns 48-Pin TSOP T/R - Tape and Reel (Alt: SST39VF1601-70-4I-EKE-T) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$3.1526 / $3.4182 | Buy Now |
|
DISTI #
SST39VF1601-70-4I-EKE-T
|
Microchip Technology Inc | 2.7V to 3.6V 16Mbit Multi-Purpose Flash, TSOP, Projected EOL: 2035-11-07 COO: South Korea ECCN: EAR99 RoHS: Compliant Lead time: 17 Weeks, 0 Days Container: Reel | In Stock: 0 and Alternates Available |
|
$3.7100 / $4.7100 | Buy Now |
|
DISTI #
70453563
|
RS | 2.7V TO 3.6V 16MBIT MULTI-PURPOSE FLASH48 TSOP 12X20MM T/R Min Qty: 1000 Package Multiple: 1 Lead time: 29 Weeks, 0 Days Container: Bulk | 0 |
|
$4.6600 / $5.4800 | RFQ |
|
DISTI #
SST39VF1601-70-4I-EKE-T
|
IBS Electronics | SST39VF1601-70-4I-EKE-T by MICROCHIP TECH. is a 16Mb flash memory with 70ns access time, 2.7-3.6V voltage range, and industrial temperature range of -40°, C to 85°, C, ideal for embedded applications. Min Qty: 5 Package Multiple: 1 | 616 |
|
$5.7400 / $7.1680 | Buy Now |
|
|
NAC | 2.7V to 3.6V 16Mbit Multi-Purpose Flash. Package: 48 TSOP 12x20mm T/R - PAR NOR Flash Product Line RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$2.6200 / $3.1600 | Buy Now |
|
DISTI #
SST39VF1601-70-4I-EKE-T
|
Avnet Silica | NOR Flash Parallel 33V 16Mbit 1M x 16bit 70ns 48Pin TSOP TR (Alt: SST39VF1601-70-4I-EKE-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | ParallelFlash,2.7-3.6V,16Mbit,x16,70ns,-40°Cto+85°C,TSOP-48,RoHS | 9120 |
|
RFQ | |
|
DISTI #
SST39VF1601-70-4I-EKE-T
|
EBV Elektronik | NOR Flash Parallel 33V 16Mbit 1M x 16bit 70ns 48Pin TSOP TR (Alt: SST39VF1601-70-4I-EKE-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: SST39VF1601-70-4I-EKE-T by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SST39VF1601-70-4I-EKE-T
SST39VF1601-70-4I-EKE-T CAD Models
-

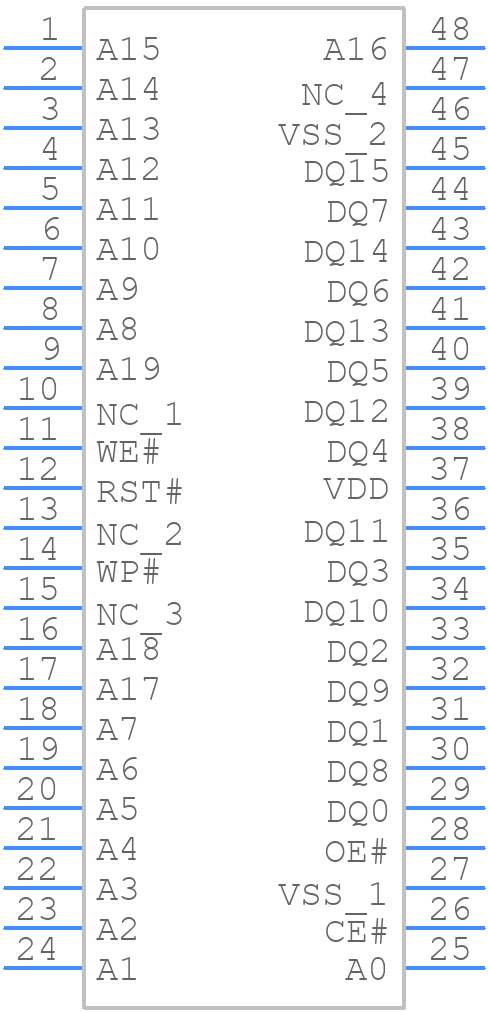

Part Symbol
-

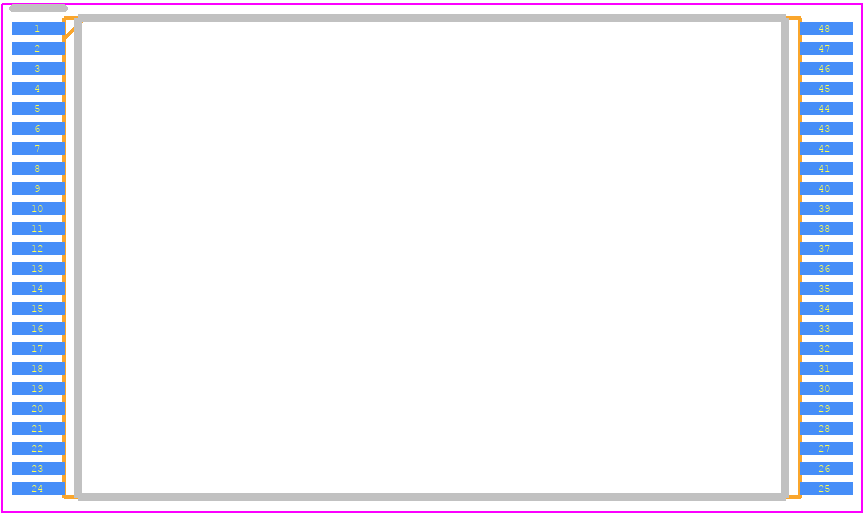

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SST39VF1601-70-4I-EKE-T Part Data Attributes
|
|
SST39VF1601-70-4I-EKE-T
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
SST39VF1601-70-4I-EKE-T
Microchip Technology Inc
2.7V to 3.6V 16Mbit Multi-Purpose Flash
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Pin Count | 48 | |
| Manufacturer Package Code | TSOP-48 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.B.1.A | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 17 Weeks | |
| Access Time-Max | 70 Ns | |
| Boot Block | Bottom | |
| Command User Interface | Yes | |
| Common Flash Interface | Yes | |
| Data Polling | Yes | |
| Data Retention Time-Min | 100 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e3 | |
| Length | 18.4 Mm | |
| Memory Density | 16777216 Bit | |
| Memory IC Type | Flash | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Sectors/Size | 512 | |
| Number of Terminals | 48 | |
| Number of Words | 1048576 Words | |
| Number of Words Code | 1000000 | |
| Operating Mode | Asynchronous | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1mx16 | |
| Output Characteristics | 3-State | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP48,.8,20 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Parallel/Serial | Parallel | |
| Programming Voltage | 3 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Sector Size | 2k | |
| Standby Current-Max | 0.00002 A | |
| Supply Current-Max | 0.035 Ma | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Toggle Bit | Yes | |
| Type | Nor Type | |
| Width | 12 Mm |
Alternate Parts for SST39VF1601-70-4I-EKE-T
This table gives cross-reference parts and alternative options found for SST39VF1601-70-4I-EKE-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SST39VF1601-70-4I-EKE-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SST39VF1601-70-4I-EKE | Microchip Technology Inc | $2.0056 | 2.7V to 3.6V 16Mbit Multi-Purpose Flash | SST39VF1601-70-4I-EKE-T vs SST39VF1601-70-4I-EKE |
| SST39VF1601-70-4I-B3KE-T | Microchip Technology Inc | $4.8050 | 2.7V to 3.6V 16Mbit Multi-Purpose Flash | SST39VF1601-70-4I-EKE-T vs SST39VF1601-70-4I-B3KE-T |
SST39VF1601-70-4I-EKE-T Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SST39VF1601 is 70 MHz.
-
The SST39VF1601 can endure up to 100,000 program/erase cycles before it starts to degrade.
-
The typical programming time for the SST39VF1601 is 10-15 microseconds per byte.
-
Yes, the SST39VF1601 is rated for industrial temperature ranges from -40°C to +85°C.
-
No, the SST39VF1601 does not have built-in error correction. Error correction is typically handled by the host controller.
