SSW-102-23-G-D-RA by: Samtec Inc

Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT

Part Details for SSW-102-23-G-D-RA by Samtec Inc

Results Overview of SSW-102-23-G-D-RA by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SSW-102-23-G-D-RA Information

SSW-102-23-G-D-RA by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DAO3W3P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets.
DAL3V3P543G30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 1.6mm PCB Thickness.
DAV3V3P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for SSW-102-23-G-D-RA

Part # Distributor Description Stock Price Buy
DISTI # 82P1931
Newark Tiger Buy Socket Strip With Pcb Tails |Samtec SSW-102-23-G-D-RA RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $1.6200
  • 50 $1.5000
  • 100 $1.2700
  • 500 $1.1300
  • 1,000 $0.8830
$0.8830 / $1.6200 Buy Now
DISTI # SSW-102-23-G-D-RA
Avnet Americas - Bulk (Alt: SSW-102-23-G-D-RA) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 0
  • 1 $1.6856
  • 1,000 $0.9126
  • 2,000 $0.8062
  • 5,000 $0.6312
  • 10,000 $0.5637
$0.5637 / $1.6856 Buy Now
DISTI # 000000000002689345
Sager Headers & Wire Housings Tiger Buy Socket Strip with PCB Tails, .100 Pitch Min Qty: 1 0
  • 1 $1.7200
  • 50 $1.5900
  • 100 $1.3500
  • 500 $1.2000
  • 1,000 $0.9360
  • 2,000 $0.8270
$0.8270 / $1.7200 Buy Now

US Tariff Estimator: SSW-102-23-G-D-RA by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SSW-102-23-G-D-RA
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SSW-102-23-G-D-RA

SSW-102-23-G-D-RA CAD Models

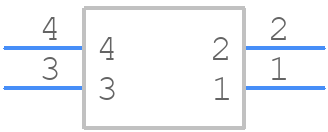

  • Part Symbol

    schematic symbol

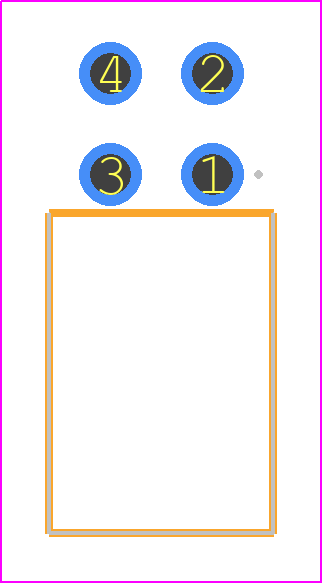

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SSW-102-23-G-D-RA Part Data Attributes

Parametric Data
SSW-102-23-G-D-RA Samtec Inc
Buy Now Datasheet
Compare Parts:
SSW-102-23-G-D-RA Samtec Inc Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Additional Feature Tiger Buy Contact
Body Breadth 0.195 Inch
Body Depth 0.335 Inch
Body Length 0.22 Inch
Body/Shell Style Socket
Connector Type Board Connector
Contact Finish Mating Gold (20) Over Nickel (50)
Contact Finish Termination Gold (Au) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Resistance 10 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Filter Feature No
IEC Conformance No
Insulator Color Black
Insulator Material Liquid Crystal Polymer
JESD-609 Code e4
MIL Conformance No
Mating Contact Pitch 0.1 Inch
Mating Contact Row Spacing 0.1 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Right Angle
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 2.54 Mm
Plating Thickness 20u Inch
Rated Current (Signal) 3 A
Reference Standard Ul, Csa
Terminal Length 0.3 Inch
Terminal Pitch 2.54 Mm
Termination Type Solder
Total Number of Contacts 4
UL Flammability Code 94V-0

Alternate Parts for SSW-102-23-G-D-RA

This table gives cross-reference parts and alternative options found for SSW-102-23-G-D-RA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SSW-102-23-G-D-RA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SSW-102-23-F-D-RA Samtec Inc $0.9798 Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket, ROHS COMPLIANT SSW-102-23-G-D-RA vs SSW-102-23-F-D-RA
SSW-102-23-S-D-RA Samtec Inc Check for Price Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT SSW-102-23-G-D-RA vs SSW-102-23-S-D-RA
SSW-102-23-H-D-RA Samtec Inc Check for Price Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket, SSW-102-23-G-D-RA vs SSW-102-23-H-D-RA
SSW-102-23-FM-D-RA Samtec Inc Check for Price Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket, SSW-102-23-G-D-RA vs SSW-102-23-FM-D-RA
Part Number Manufacturer Composite Price Description Compare
SSW-102-22-L-D-RA Samtec Inc Check for Price Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket, ROHS COMPLIANT SSW-102-23-G-D-RA vs SSW-102-22-L-D-RA
68670-069LF Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE SSW-102-23-G-D-RA vs 68670-069LF
55102-F36-2 Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, SSW-102-23-G-D-RA vs 55102-F36-2
78207-404HLF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT SSW-102-23-G-D-RA vs 78207-404HLF
10-96-4047 Molex Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal SSW-102-23-G-D-RA vs 10-96-4047
77317-120-04LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT SSW-102-23-G-D-RA vs 77317-120-04LF
76768-903 Amphenol Communications Solutions Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, SSW-102-23-G-D-RA vs 76768-903
68147-304 Amphenol FCi Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal SSW-102-23-G-D-RA vs 68147-304
8614-20-04-2-LO-6-LF Amphenol FCi Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE SSW-102-23-G-D-RA vs 8614-20-04-2-LO-6-LF
77319-103-S04 Amphenol FCi Check for Price Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal SSW-102-23-G-D-RA vs 77319-103-S04
