Microcontrollers and Processors / Microcontrollers / STM32F051R8T7
Datasheets
STM32F051R8T7 by: STMicroelectronics

Mainstream Arm Cortex-M0 Access line MCU with 64 Kbytes of Flash memory, 48 MHz CPU, motor control and CEC functions

Part Details for STM32F051R8T7 by STMicroelectronics

Results Overview of STM32F051R8T7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32F051R8T7 Information

STM32F051R8T7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F051R8T7

Part # Distributor Description Stock Price Buy
DISTI # 99W9761
Newark Microcontroller Mcu, 32 Bit, Cortex-M0, 48Mhz, Lqfp-64, Product Range:Stm32 Family Stm32F0 Series Microcontrollers, Device Core:Arm Cortex-M0, Data Bus Width:32 Bit, Operating Frequency Max:48Mhz, Program Memory Size:64Kb Rohs Compliant: Yes |Stmicroelectronics STM32F051R8T7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2346
  • 1 $5.0400
  • 10 $4.1400
  • 25 $3.9500
  • 50 $3.8300
  • 100 $3.6700
  • 320 $3.5600
$3.5600 / $5.0400 Buy Now
DISTI # STM32F051R8T7
Avnet Americas ARM MCU, Access Line, STM32 Family STM32F0 Series Microcontrollers, ARM Cortex-M0, 32 bit, 48 MHz - Trays (Alt: STM32F051R8T7) COO: Singapore RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 960 $2.5737
  • 1,920 $2.4346
  • 3,840 $2.3705
  • 5,760 $2.3097
  • 7,680 $2.2520
$2.2520 / $2.5737 Buy Now
DISTI # 70520735
RS STM32F051R8T7,32BIT ARM CORTEX M0 MICROCONTROLLER,48MHZ,64 KB FLASH,64-PIN LQFP Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $6.4700
  • 25 $6.1500
  • 50 $5.8300
  • 100 $5.5100
$5.5100 / $6.4700 RFQ
STMicroelectronics Mainstream Arm Cortex-M0 Access line MCU with 64 Kbytes of Flash memory, 48 MHz CPU, motor control and CEC functions COO: Singapore RoHS: Compliant Min Qty: 1 213
  • 1 $3.7100
  • 10 $2.8200
  • 25 $2.6000
  • 100 $2.2800
  • 250 $2.2200
  • 500 $2.2200
$2.2200 / $3.7100 Buy Now
DISTI # STM32F051R8T7
TME IC: STM32 ARM microcontroller, 48MHz, LQFP64, 2÷3.6VDC, -40÷105°C Min Qty: 1 0
  • 1 $5.1600
  • 3 $4.8000
  • 10 $4.4700
  • 25 $4.1400
  • 100 $3.7800
  • 160 $3.3600
  • 480 $3.2200
  • 960 $3.0800
  • 1,920 $2.9800
  • 3,840 $2.8800
$2.8800 / $5.1600 RFQ
ComSIT USA ARM-BASED 32-BIT MCU RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64 ECCN: 3A991.A.2 RoHS: Compliant Stock DE - 755
Stock ES - 3
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # STM32F051R8T7
Avnet Silica ARM MCU Access Line STM32 Family STM32F0 Series Microcontrollers ARM CortexM0 32 bit 48 MHz (Alt: STM32F051R8T7) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days Silica - 640
Buy Now
DISTI # STM32F051R8T7
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 950
  • 1 $3.7800
  • 10 $2.8600
  • 50 $2.5900
  • 100 $2.2800
  • 200 $2.1600
  • 500 $2.0200
  • 1,920 $1.9000
  • 7,680 $1.7400
$1.7400 / $3.7800 Buy Now
Chip Stock Arm-based32-BITMcuRiscMicrocontroller,32-BIT,Flash,CORTEX-M0Cpu,48MHZ,Cmos,PQFP64 21500
RFQ
DISTI # STM32F051R8T7
EBV Elektronik ARM MCU Access Line STM32 Family STM32F0 Series Microcontrollers ARM CortexM0 32 bit 48 MHz (Alt: STM32F051R8T7) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days EBV - 4000
Buy Now
Win Source Electronics IC MCU 32BIT 64KB FLASH 64LQFP 18000
  • 18 $3.3250
  • 43 $2.7283
  • 66 $2.6430
  • 91 $2.5578
  • 117 $2.4725
  • 157 $2.2167
$2.2167 / $3.3250 Buy Now

US Tariff Estimator: STM32F051R8T7 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F051R8T7
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F051R8T7

STM32F051R8T7 CAD Models

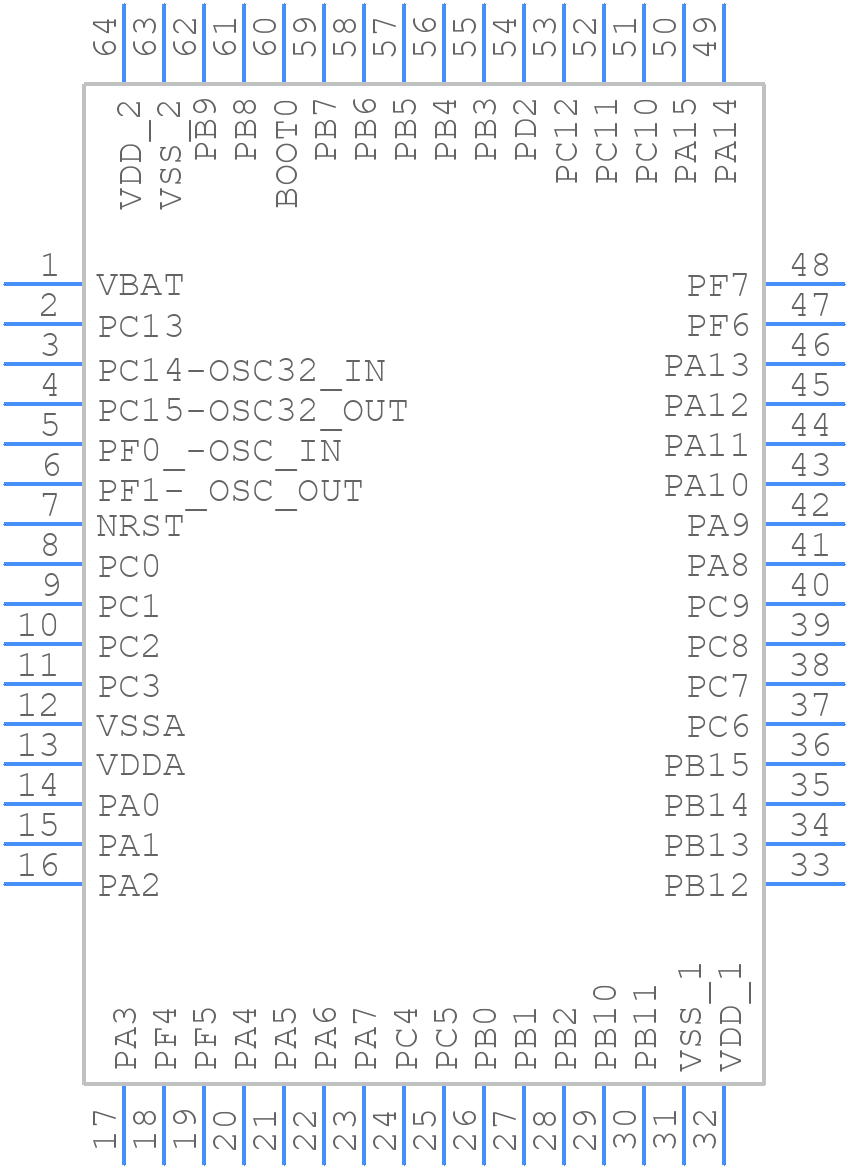

  • Part Symbol

    schematic symbol

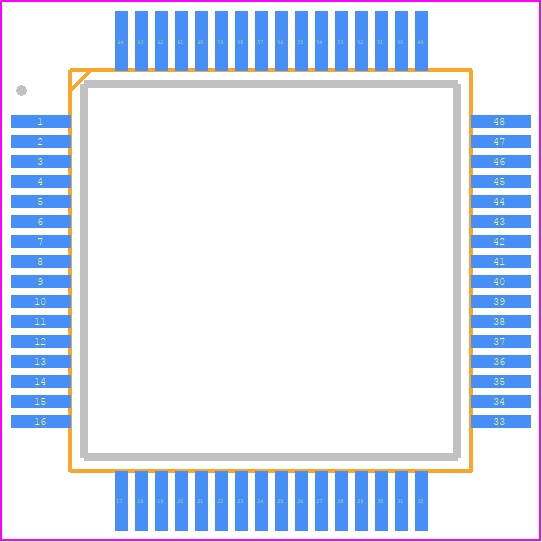

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F051R8T7 Part Data Attributes

Parametric Data
STM32F051R8T7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F051R8T7 STMicroelectronics Mainstream Arm Cortex-M0 Access line MCU with 64 Kbytes of Flash memory, 48 MHz CPU, motor control and CEC functions
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description LFQFP, QFP64,.47SQ,20
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M0
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Length 10 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 5
Number of External Interrupts 5
Number of I/O Lines 55
Number of Terminals 64
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 48 MHz
Supply Current-Max 23.2 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F051R8T7

This table gives cross-reference parts and alternative options found for STM32F051R8T7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F051R8T7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F051R8T6XXXTR STMicroelectronics Check for Price STM32F051R8T6XXXTR STM32F051R8T7 vs STM32F051R8T6XXXTR
STM32F051R8T7XXXTR STMicroelectronics Check for Price STM32F051R8T7XXXTR STM32F051R8T7 vs STM32F051R8T7XXXTR
equivalents icon

STM32F051R8T7 Related Parts

STM32F051R8T7 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F051R8T7 is 48 MHz.

  • The STM32F051R8T7 has 64 KB of flash memory.

  • The STM32F051R8T7 can operate at 2.0V to 3.6V, but it is not recommended to operate it at 5V.

  • No, the STM32F051R8T7 does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.

  • The STM32F051R8T7 has two UARTs (USART1 and USART2).
