Microcontrollers and Processors / Microcontrollers / STM32G070KBT6
Datasheets
STM32G070KBT6 by: STMicroelectronics

Mainstream Value line, Arm Cortex-M0+ MCU with 128 Kbytes of Flash memory, 36 Kbytes RAM, 64 MHz CPU, 4x USART, timers, ADC, comm. I/F, 2-3.6V

Part Details for STM32G070KBT6 by STMicroelectronics

Results Overview of STM32G070KBT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Industrial Automation Smart Cities Renewable Energy Robotics and Drones

STM32G070KBT6 Information

STM32G070KBT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32G070KBT6

Part # Distributor Description Stock Price Buy
DISTI # 54AH7008
Newark Mcu, 32Bit, 64Mhz, Lqfp-32, Product Range:Stm32 Family Stm32G0 Series Microcontrollers, Device Core:Arm Cortex-M0+, Data Bus Width:32 Bit, Operating Frequency Max:64Mhz, Program Memory Size:128Kb, No. Of Pins:32Pins, Qualification:- Rohs Compliant: Yes |Stmicroelectronics STM32G070KBT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1273
  • 1 $1.5800
  • 10 $1.4500
  • 100 $1.4500
  • 500 $1.3300
  • 1,000 $1.3300
  • 2,500 $1.3300
  • 5,000 $1.3300
$1.3300 / $1.5800 Buy Now
DISTI # 54AH7008
Avnet Americas NEW MCU ARM CORTEX-M0+MCU - Bulk (Alt: 54AH7008) COO: China RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 1273 Partner Stock
  • 1 $2.5900
  • 10 $2.0600
  • 100 $1.7800
  • 500 $1.7200
  • 1,000 $1.6600
$1.6600 / $2.5900 Buy Now
DISTI # STM32G070KBT6
Avnet Americas NEW MCU ARM CORTEX-M0+MCU - Trays (Alt: STM32G070KBT6) COO: China RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1,500 $1.0663
  • 3,000 $1.0087
  • 6,000 $0.9821
  • 12,000 $0.9614
  • 24,000 $0.9564
$0.9564 / $1.0663 Buy Now
STMicroelectronics Mainstream Value line, Arm Cortex-M0+ MCU with 128 Kbytes of Flash memory, 36 Kbytes RAM, 64 MHz CPU, 4x USART, timers, ADC, comm. I/F, 2-3.6V COO: France RoHS: Compliant Min Qty: 1 18090
  • 1 $2.0100
  • 10 $1.4900
  • 25 $1.3500
  • 100 $1.2200
  • 250 $1.1500
  • 500 $1.1000
$1.1000 / $2.0100 Buy Now
Bristol Electronics   9515
RFQ
Bristol Electronics   1500
RFQ
DISTI # STM32G070KBT6
Avnet Silica NEW MCU ARM CORTEXM0MCU (Alt: STM32G070KBT6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock RISCMicrocontroller,32-Bit,FLASH,Cortex-M0+CPU,64MHz,CMOS,PQFP32 25801
RFQ
DISTI # STM32G070KBT6
EBV Elektronik NEW MCU ARM CORTEXM0MCU (Alt: STM32G070KBT6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation RISC Microcontroller, 32-Bit RoHS: Compliant Min Qty: 1 Package Multiple: 1 605
  • 1 $6.0500
$6.0500 Buy Now
Win Source Electronics IC MCU 32BIT 128KB FLASH 32LQFP 24600
  • 45 $1.1292
  • 95 $1.0564
  • 150 $1.0200
  • 215 $0.9471
  • 275 $0.9107
  • 345 $0.8743
$0.8743 / $1.1292 Buy Now

US Tariff Estimator: STM32G070KBT6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32G070KBT6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32G070KBT6

STM32G070KBT6 CAD Models

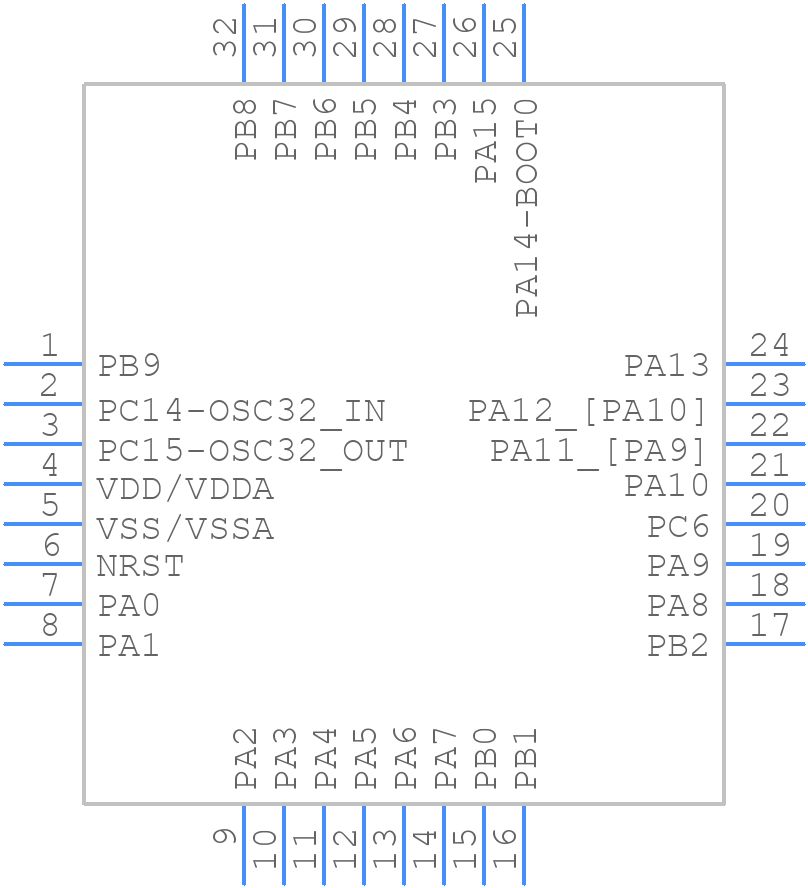

  • Part Symbol

    schematic symbol

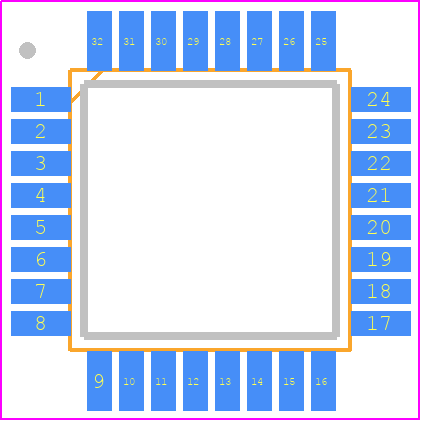

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32G070KBT6 Part Data Attributes

Parametric Data
STM32G070KBT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32G070KBT6 STMicroelectronics Mainstream Value line, Arm Cortex-M0+ MCU with 128 Kbytes of Flash memory, 36 Kbytes RAM, 64 MHz CPU, 4x USART, timers, ADC, comm. I/F, 2-3.6V
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description LQFP, QFP32,.35SQ,32
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Additional Feature 36-KBYTES SRAM AVAILABLE WITHOUT PARITY; ALSO HAVE TWO INTERNAL ADC CHANNEL
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family Cortex-M0+
Clock Frequency-Max 48 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G32
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 7
Number of I/O Lines 29
Number of Serial I/Os 4
Number of Terminals 32
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 32768
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 64 MHz
Supply Current-Max 8.4 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn) - immersion
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
equivalents icon

STM32G070KBT6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32G070KBT6 is 64 MHz.

  • The STM32G070KBT6 has 64 KB of flash memory.

  • No, the STM32G070KBT6 is a 3.3V device and should not be operated at 5V.

  • No, the STM32G070KBT6 does not have a built-in USB interface.

  • The STM32G070KBT6 has 3 UARTs.
