STM32H750XBH6 by: STMicroelectronics

High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 128KBytes of Flash memory, 1MB RAM, 480 MHz CPU, L1 cache, external memory interface, JPEG codec, HW crypto, large set of peripherals

Part Details for STM32H750XBH6 by STMicroelectronics

Results Overview of STM32H750XBH6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Telecommunications

STM32H750XBH6 Information

STM32H750XBH6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32H750XBH6

Part # Distributor Description Stock Price Buy
DISTI # 84AC2909
Newark Mcu, 32Bit, 400Mhz, Tfbga-240, Product Range:Stm32 Family Stm32H7 Series Microcontrollers, Architecture:Arm Cortex-M7, No. Of Bits:32Bit, Cpu Speed:400Mhz, Program Memory Size:128Kb, Ram Memory Size:1Mb, No. Of Pins:240Pins, Mcu Caserohs Compliant: Yes |Stmicroelectronics STM32H750XBH6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 7605
  • 1 $12.7400
  • 10 $10.0200
  • 25 $9.3400
  • 50 $8.9300
  • 100 $8.5200
  • 357 $8.1300
  • 595 $7.9800
$7.9800 / $12.7400 Buy Now
DISTI # STM32H750XBH6
Avnet Americas MCU 32-Bit ARM Cortex-M7F RISC 128KB Flash 1.62V to 3.6V 240-Pin TFBGA Tray - Trays (Alt: STM32H750XBH6) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 714 Package Multiple: 714 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 714 $8.2254
  • 1,428 $7.7808
  • 2,856 $7.5761
  • 4,284 $7.3818
  • 5,712 $7.1973
$7.1973 / $8.2254 Buy Now
STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 128KBytes of Flash memory, 1MB RAM, 480 MHz CPU, L1 cache, external memory interface, JPEG codec, HW crypto, large set of peripherals COO: Taiwan RoHS: Compliant Min Qty: 1 812
  • 1 $12.4900
  • 10 $9.8200
  • 25 $9.1500
  • 100 $8.3500
  • 250 $7.9700
  • 500 $7.8200
$7.8200 / $12.4900 Buy Now
DISTI # STM32H750XBH6
Avnet Silica MCU 32Bit ARM CortexM7F RISC 128KB Flash 162V to 36V 240Pin TFBGA Tray (Alt: STM32H750XBH6) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32H750XBH6
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 115
  • 1 $12.7000
  • 10 $9.8100
  • 50 $9.1500
  • 100 $8.3400
  • 200 $7.2400
  • 500 $6.7800
  • 714 $6.6800
  • 1,428 $6.4100
  • 2,856 $5.7100
$5.7100 / $12.7000 Buy Now
Chip Stock MCU32-BitARMCortex-M7FRISC128KBFlash1.62Vto3.6V240-PinTFBGATray 11500
RFQ
DISTI # STM32H750XBH6
EBV Elektronik MCU 32Bit ARM CortexM7F RISC 128KB Flash 162V to 36V 240Pin TFBGA Tray (Alt: STM32H750XBH6) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 17 Weeks, 0 Days EBV - 9877
Buy Now
LCSC ARM Cortex-M Series 480MHz 168 TFBGA-265 Microcontrollers RoHS 1035
  • 1 $5.2853
  • 10 $4.3211
  • 30 $3.7334
  • 100 $3.2397
$3.2397 / $5.2853 Buy Now
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018, Lead time:3-5days 1148 Stock,946 Available
  • 1 $10.6300
  • 10 $9.8700
  • 25 $9.1200
  • 100 $8.3700
$8.3700 / $10.6300 Buy Now
Win Source Electronics IC MCU 32BIT 128KB FLASH TFBGA 10000
  • 10 $5.2027
  • 21 $4.8671
  • 32 $4.6993
  • 46 $4.3636
  • 60 $4.1958
  • 75 $4.0279
$4.0279 / $5.2027 Buy Now

US Tariff Estimator: STM32H750XBH6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32H750XBH6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32H750XBH6

STM32H750XBH6 CAD Models

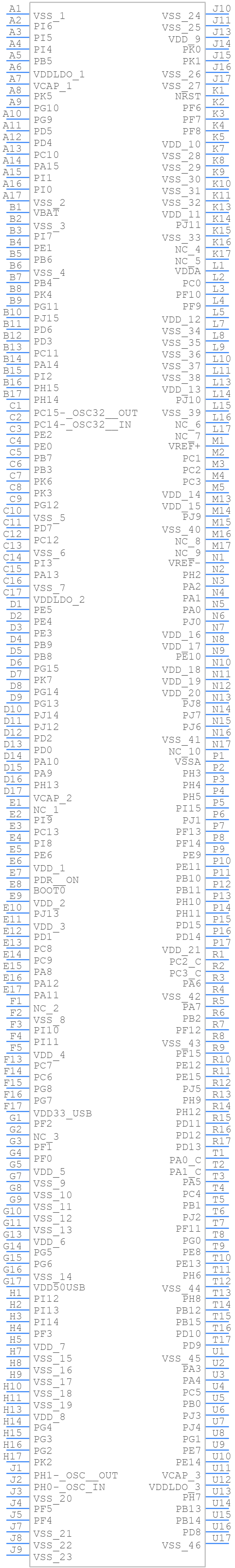

  • Part Symbol

    schematic symbol

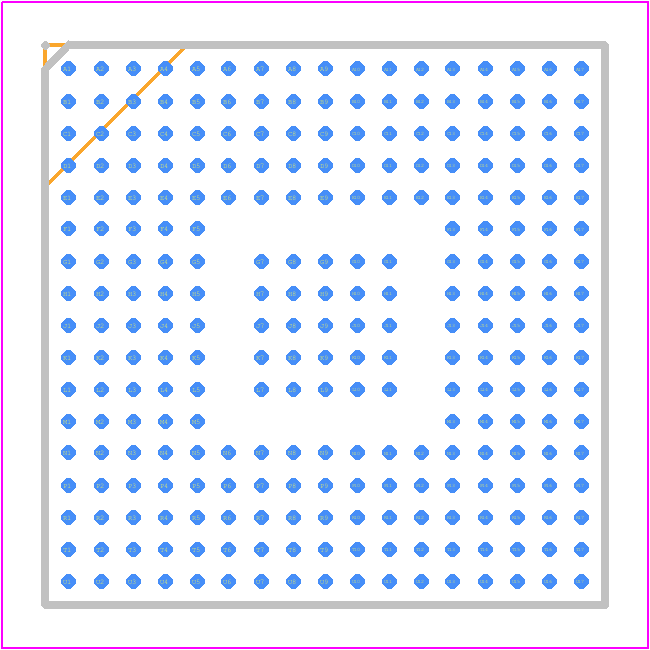

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32H750XBH6 Part Data Attributes

Parametric Data
STM32H750XBH6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32H750XBH6 STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 128KBytes of Flash memory, 1MB RAM, 480 MHz CPU, L1 cache, external memory interface, JPEG codec, HW crypto, large set of peripherals
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description TFBGA, BGA265,17X17,32
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Date Of Intro 2018-07-09
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M7
Clock Frequency-Max 48 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING-POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B265
Length 14 mm
Low Power Mode YES
Number of DMA Channels 16
Number of I/O Lines 168
Number of Serial I/Os 9
Number of Terminals 265
Number of Timers 20
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA265,17X17,32
Package Shape SQUARE
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
RAM (bytes) 1085440
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 1.1 mm
Speed 400 MHz
Supply Current-Max 400 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
equivalents icon

STM32H750XBH6 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the STM32H750XBH6 is 480 MHz.

  • The STM32H750XBH6 has 128 KB of flash memory.

  • The maximum ambient temperature range for the STM32H750XBH6 is -40°C to 125°C.

  • Yes, the STM32H750XBH6 supports USB OTG (On-The-Go) with a dedicated USB OTG_FS controller.

  • The power consumption of the STM32H750XBH6 in low-power mode (Stop mode) is approximately 20 μA/MHz.
