Microcontrollers and Processors / Microcontrollers / STM32L011D3P6
Datasheets
STM32L011D3P6 by: STMicroelectronics

Ultra-low-power ARM Cortex-M0+ MCU with 8-Kbytes Flash, 32 MHz CPU

Part Details for STM32L011D3P6 by STMicroelectronics

Results Overview of STM32L011D3P6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM32L011D3P6 Information

STM32L011D3P6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L011D3P6

Part # Distributor Description Stock Price Buy
DISTI # 52AC7537
Newark Mcu, Arm Cortex-M0+, 32Mhz, Tssop-14, Product Range:Stm32 Family Stm32L0 Series Microcontrollers, Device Core:Arm Cortex-M0+, Data Bus Width:32 Bit, Operating Frequency Max:32Mhz, Program Memory Size:8Kb, No. Of Pins:14Pins Rohs Compliant: Yes |Stmicroelectronics STM32L011D3P6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 681
  • 1 $1.4200
  • 10 $1.0400
  • 192 $0.8000
  • 576 $0.7770
  • 1,056 $0.7700
  • 2,592 $0.7270
  • 5,088 $0.6840
$0.6840 / $1.4200 Buy Now
DISTI # 52AC7537
Avnet Americas MCU 32-Bit STM32 ARM Cortex M0 RISC 8KB Flash 2.5V/3.3V 14-Pin TSSOP Tube - Bulk (Alt: 52AC7537) COO: France RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 681 Partner Stock
  • 1 $1.4200
  • 10 $1.0400
  • 192 $0.8360
  • 576 $0.7760
  • 1,056 $0.7470
  • 2,592 $0.7250
  • 5,088 $0.7000
$0.7000 / $1.4200 Buy Now
DISTI # STM32L011D3P6
Avnet Americas MCU 32-Bit STM32 ARM Cortex M0 RISC 8KB Flash 2.5V/3.3V 14-Pin TSSOP Tube - Trays (Alt: STM32L011D3P6) COO: France RoHS: Compliant Min Qty: 1920 Package Multiple: 960 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,920 $0.6794
  • 3,840 $0.6427
  • 5,760 $0.6258
  • 9,600 $0.6097
  • 19,200 $0.5945
$0.5945 / $0.6794 Buy Now
STMicroelectronics Ultra-low-power ARM Cortex-M0+ MCU with 8-Kbytes Flash, 32 MHz CPU COO: France RoHS: Compliant Min Qty: 1 591
  • 1 $2.3000
  • 10 $1.4700
  • 25 $1.3100
  • 100 $1.0800
  • 250 $0.9400
  • 500 $0.8900
$0.8900 / $2.3000 Buy Now
DISTI # STM32L011D3P6
TME IC: STM32 ARM microcontroller, 32MHz, TSSOP14, 1.8÷3.6VDC, Cmp: 2 Min Qty: 1 117
  • 1 $1.3500
  • 10 $0.9900
  • 25 $0.9100
  • 50 $0.8900
$0.8900 / $1.3500 Buy Now
DISTI # STM32L011D3P6
Avnet Silica MCU 32Bit STM32 ARM Cortex M0 RISC 8KB Flash 25V33V 14Pin TSSOP Tube (Alt: STM32L011D3P6) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock MCU32-bitARMCortexM0+RISC8KBFlash1.8V/2.5V/3.3V14-PinTSSOPTube 85350
RFQ
DISTI # STM32L011D3P6
EBV Elektronik MCU 32Bit STM32 ARM Cortex M0 RISC 8KB Flash 25V33V 14Pin TSSOP Tube (Alt: STM32L011D3P6) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MCU 32BIT 8KB FLASH 14TSSOP / ARM® Cortex®-M0+ series Microcontroller IC 32-Bit Single-Core 32MHz 8KB (8K x 8) FLASH 14-TSSOP 72850
  • 40 $1.5321
  • 95 $1.2573
  • 145 $1.2178
  • 200 $1.1786
  • 255 $1.1393
  • 340 $1.0215
$1.0215 / $1.5321 Buy Now

US Tariff Estimator: STM32L011D3P6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32L011D3P6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32L011D3P6

STM32L011D3P6 CAD Models

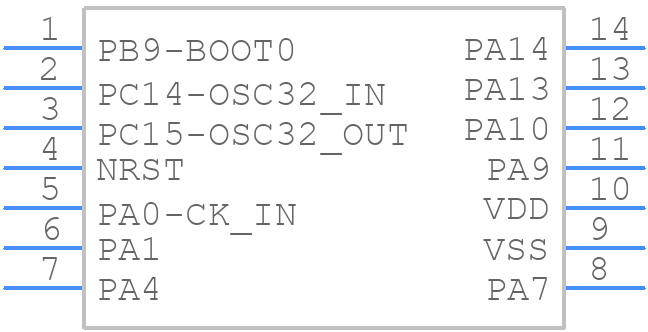

  • Part Symbol

    schematic symbol

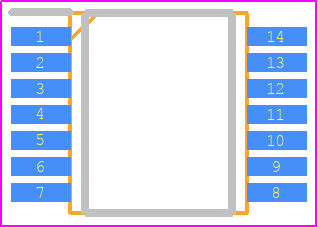

  • Footprint

    pcb footprint

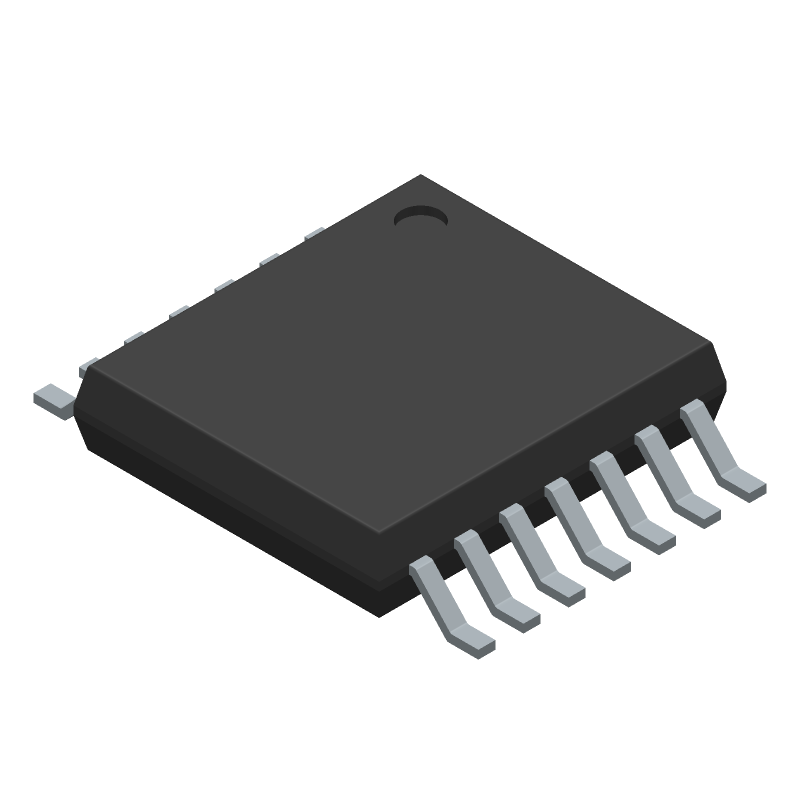

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L011D3P6 Part Data Attributes

Parametric Data
STM32L011D3P6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L011D3P6 STMicroelectronics Ultra-low-power ARM Cortex-M0+ MCU with 8-Kbytes Flash, 32 MHz CPU
Rohs Code Yes
Part Life Cycle Code Active
Package Description Tssop, Tssop14,.25
Manufacturer Package Code TSSOP 14
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0
Clock Frequency-Max 32 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of DMA Channels 5
Number of External Interrupts 16
Number of I/O Lines 11
Number of Serial I/Os 2
Number of Terminals 14
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape Rectangular
Package Style Small Outline, Thin Profile, Shrink Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 2048
ROM (words) 8192
ROM Programmability Flash
Seated Height-Max 1.2 Mm
Speed 32 Mhz
Supply Current-Max 6.5 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 4.4 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32L011D3P6

This table gives cross-reference parts and alternative options found for STM32L011D3P6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L011D3P6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32L011D3P7TR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011D3P6 vs STM32L011D3P7TR
STM32L011D3P7 STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011D3P6 vs STM32L011D3P7
STM32L011D3P3 STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011D3P6 vs STM32L011D3P3
STM32L011D3P3TR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L011D3P6 vs STM32L011D3P3TR
equivalents icon

STM32L011D3P6 Related Parts

STM32L011D3P6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L011D3P6 is 32 MHz.

  • The STM32L011D3P6 has 8 KB of flash memory.

  • Yes, the STM32L011D3P6 can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.

  • No, the STM32L011D3P6 does not have a built-in USB interface.

  • The STM32L011D3P6 has one UART.
