STM32L051K8T6 by:
STMicroelectronics

Ultra-low-power Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 32 MHz CPU

Part Details for STM32L051K8T6 by STMicroelectronics

Results Overview of STM32L051K8T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32L051K8T6 Information

STM32L051K8T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L051K8T6

Part # Distributor Description Stock Price Buy
DISTI # 83X7780
Newark Mcu, 32Bit, Cortex-M0+, 32Mhz, Lqfp-32, Product Range:Stm32 Family Stm32L0 Series Microcontrollers, Device Core:Arm Cortex-M0+, Data Bus Width:32 Bit, Operating Frequency Max:32Mhz, Program Memory Size:64Kb, No. Of Pins:32Pins Rohs Compliant: Yes |Stmicroelectronics STM32L051K8T6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1404
  • 1 $3.3300
  • 10 $2.7600
  • 25 $2.6000
  • 50 $2.5200
  • 100 $2.4400
  • 250 $2.3500
  • 500 $2.2900
$2.2900 / $3.3300 Buy Now
DISTI # 83X7780
Avnet Americas MCU 32-Bit Ultra Low Power STM32L ARM Cortex M0+ RISC 64kB Flash 32-Pin LQFP Tray - Bulk (Alt: 83X7780) COO: France RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 1404 Partner Stock
  • 1 $3.3300
  • 10 $2.7600
  • 25 $2.6000
  • 50 $2.5200
  • 100 $2.4400
$2.4400 / $3.3300 Buy Now
DISTI # STM32L051K8T6
Avnet Americas MCU 32-Bit Ultra Low Power STM32L ARM Cortex M0+ RISC 64kB Flash 32-Pin LQFP Tray - Trays (Alt: STM32L051K8T6) COO: France RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,500 $1.4024
  • 3,000 $1.3266
  • 6,000 $1.2917
  • 9,000 $1.2586
  • 12,000 $1.2271
$1.2271 / $1.4024 Buy Now
STMicroelectronics Ultra-low-power Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 32 MHz CPU COO: France RoHS: Compliant Min Qty: 1 7180
  • 1 $2.5200
  • 10 $1.9600
  • 25 $1.8000
  • 100 $1.6500
  • 250 $1.5600
  • 500 $1.5000
$1.5000 / $2.5200 Buy Now
DISTI # STM32L051K8T6
TME IC: STM32 ARM microcontroller, 32MHz, LQFP32, 1.65÷3.6VDC Min Qty: 1 68
  • 1 $3.7800
  • 5 $3.7200
  • 25 $3.5800
  • 100 $3.4800
  • 250 $3.4200
  • 500 $3.2400
  • 1,000 $3.1200
$3.1200 / $3.7800 Buy Now
DISTI # STM32L051K8T6
Avnet Silica MCU 32Bit Ultra Low Power STM32L ARM Cortex M0 RISC 64kB Flash 32Pin LQFP Tray (Alt: STM32L051K8T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days Silica - 500
Buy Now
Chip Stock MCU32-BitUltraLowPowerSTM32LARMCortexM0+RISC64kBFlash32-PinLQFPTray 23500
RFQ
DISTI # STM32L051K8T6
EBV Elektronik MCU 32Bit Ultra Low Power STM32L ARM Cortex M0 RISC 64kB Flash 32Pin LQFP Tray (Alt: STM32L051K8T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 15 Weeks, 0 Days EBV - 1000
Buy Now
LCSC ARM-M0 32MHz 27 LQFP-32(7x7) Microcontrollers RoHS 880
  • 1 $2.5924
  • 10 $2.2231
  • 30 $1.9929
  • 100 $1.7566
  • 500 $1.6484
  • 1,500 $1.6021
$1.6021 / $2.5924 Buy Now
Win Source Electronics IC MCU 32BIT 64KB FLASH 32LQFP 20000
  • 25 $2.0653
  • 60 $1.6947
  • 92 $1.6417
  • 126 $1.5887
  • 163 $1.5358
  • 218 $1.3769
$1.3769 / $2.0653 Buy Now

US Tariff Estimator: STM32L051K8T6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32L051K8T6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32L051K8T6

STM32L051K8T6 CAD Models

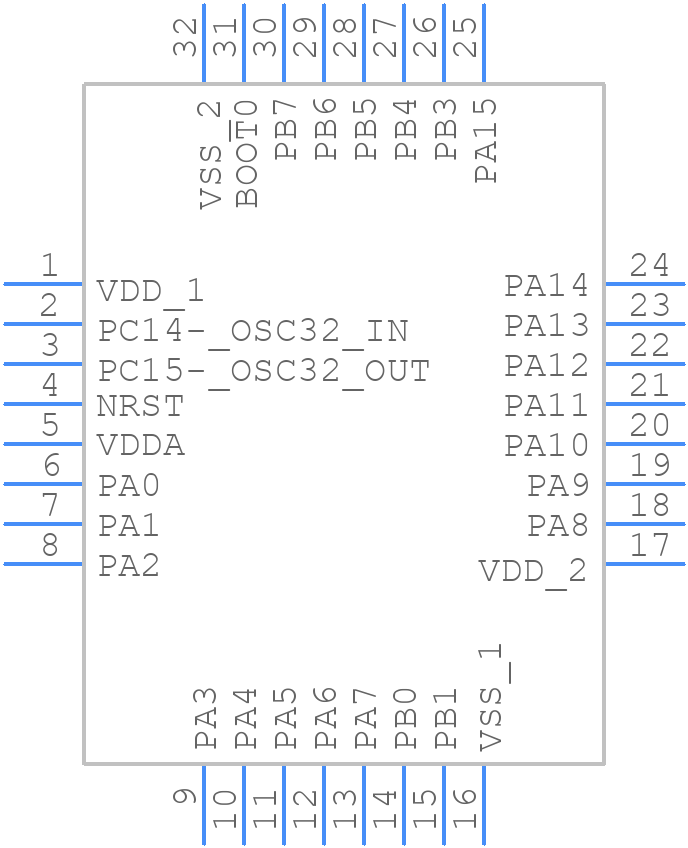

  • Part Symbol

    schematic symbol

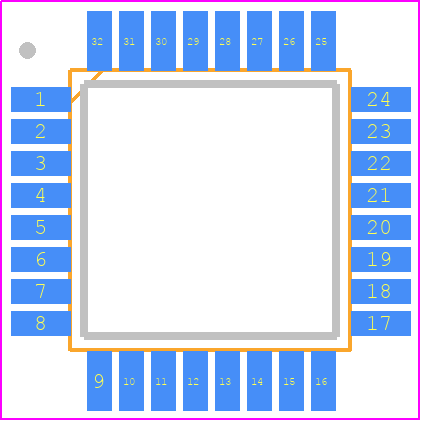

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L051K8T6 Part Data Attributes

Parametric Data
STM32L051K8T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L051K8T6 STMicroelectronics Ultra-low-power Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 32 MHz CPU
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description LQFP, QFP32,.35SQ,32
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M0
Clock Frequency-Max 25 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Integrated Cache NO
JESD-30 Code S-PQFP-G32
JESD-609 Code e3
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 7
Number of I/O Lines 25
Number of Terminals 32
Number of Timers 5
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 8192
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 32 MHz
Supply Current-Max 6.8 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn) - immersion
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
equivalents icon

STM32L051K8T6 Related Parts

STM32L051K8T6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L051K8T6 is 32 MHz.

  • The STM32L051K8T6 has 64 KB of flash memory.

  • Yes, the STM32L051K8T6 can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.

  • No, the STM32L051K8T6 does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.

  • Yes, the STM32L051K8T6 can be used in industrial temperature range (-40°C to 85°C), but it requires a specific qualification and testing process.
