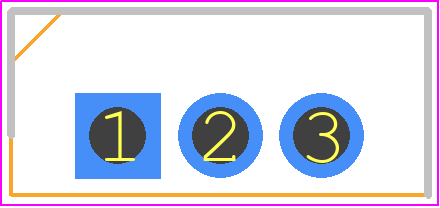

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STP60NF06FP by STMicroelectronics
Results Overview of STP60NF06FP by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
STP60NF06FP Information
STP60NF06FP by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STP60NF06FP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STP60NF06FP
|
Avnet Americas | - Rail/Tube (Alt: STP60NF06FP) COO: Singapore RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Tube | 0 |
|
$0.5042 / $0.5361 | Buy Now |
|
|
STMicroelectronics | N-channel 60 V, 14 mOhm, 60 A StripFET II POWER MOSFET in a TO-220FP package COO: Singapore RoHS: Compliant Min Qty: 1 | 507 |
|
$0.6800 / $2.0000 | Buy Now |
|
DISTI #
STP60NF06FP
|
Avnet Silica | (Alt: STP60NF06FP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days | Silica - 400 |
|
Buy Now | |
|
DISTI #
STP60NF06FP
|
EBV Elektronik | (Alt: STP60NF06FP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 15 Weeks, 0 Days | EBV - 750 |
|
Buy Now | |
|
|
LCSC | 60V 30A 30W 16m10V30A 4V250uA 1 N-Channel TO-220FP Single FETs MOSFETs RoHS | 40 |
|
$0.6933 / $0.7317 | Buy Now |
Part Details for STP60NF06FP
STP60NF06FP CAD Models
STP60NF06FP Part Data Attributes
|
|
STP60NF06FP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STP60NF06FP
STMicroelectronics
N-Channel 60V - 0.014Ohm - 60A - TO-220FP StripFET(TM) II POWER MOSFET
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | ROHS COMPLIANT, TO-220FP, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 13 Weeks | |
| Date Of Intro | 1980-01-04 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Avalanche Energy Rating (Eas) | 370 mJ | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 30 A | |
| Drain-source On Resistance-Max | 0.016 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 30 W | |
| Pulsed Drain Current-Max (IDM) | 120 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for STP60NF06FP
This table gives cross-reference parts and alternative options found for STP60NF06FP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STP60NF06FP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STP4NK80ZFP | STMicroelectronics | $0.5677 | N-channel 800 V, 2.7 Ohm typ., 3 A SuperMESH Power MOSFET in a TO-220FP package | STP60NF06FP vs STP4NK80ZFP |
| STP3NK60ZFP | STMicroelectronics | $1.1139 | N-channel 600 V, 3.2 Ohm typ., 2.4 A SuperMESH PowerMOSFET in TO-220FP package | STP60NF06FP vs STP3NK60ZFP |
| STP9NK70ZFP | STMicroelectronics | $1.9478 | N-Channel 700V - 1Ohm - 7.5A - TO-220FP Zener-Protected SuperMesh(TM) POWER MOSFET | STP60NF06FP vs STP9NK70ZFP |
| NDF03N60ZG | onsemi | Check for Price | Power MOSFET 600V 3A 3.6 Ohm Single N-Channel TO-220FP, TO-220 3 LEAD FULLPAK, 50-TUBE | STP60NF06FP vs NDF03N60ZG |
| STF3HNK90Z | STMicroelectronics | Check for Price | 3A, 900V, 4.2ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220FP, 3 PIN | STP60NF06FP vs STF3HNK90Z |
| STF6NK70Z | STMicroelectronics | Check for Price | 5A, 700V, 1.8ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220FP, 3 PIN | STP60NF06FP vs STF6NK70Z |
| STP5NA80FP | STMicroelectronics | Check for Price | 2.8A, 800V, 2.4ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220FP, 3 PIN | STP60NF06FP vs STP5NA80FP |
| STP10NC50FP | STMicroelectronics | Check for Price | 10A, 500V, 0.52ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220FP, 3 PIN | STP60NF06FP vs STP10NC50FP |
| STP4NC50FP | STMicroelectronics | Check for Price | 3.5A, 500V, 2.7ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220FP, 3 PIN | STP60NF06FP vs STP4NC50FP |
| STP16NS25FP | STMicroelectronics | Check for Price | 16A, 250V, 0.28ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220FP, 3 PIN | STP60NF06FP vs STP16NS25FP |
STP60NF06FP Frequently Asked Questions (FAQ)
-
The maximum operating temperature of the STP60NF06FP is 150°C, as specified in the datasheet.
-
To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
-
The maximum current rating of the STP60NF06FP is 60A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
-
To protect the STP60NF06FP from overvoltage and overcurrent, a voltage regulator or a voltage clamp can be used to limit the voltage across the device. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
-
The recommended gate drive voltage for the STP60NF06FP is between 10V and 15V, as specified in the datasheet. A higher gate drive voltage can improve the device's switching performance, but may also increase power consumption.
