Part Details for STR711FR2T6 by STMicroelectronics
Results Overview of STR711FR2T6 by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STR711FR2T6 Information
STR711FR2T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STR711FR2T6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
STMicroelectronics | ARM7TDMI™, 16/32-BIT MCU WITH FLASH, USB, CAN, 5 TIMERS, ADC, 10 COMMUNICATIONS INTERFACES COO: Malaysia RoHS: Compliant Min Qty: 1 | 1 |
|
$12.9100 / $18.6800 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 619 |
|
$13.7760 / $16.8000 | Buy Now |
|
|
Bristol Electronics | 4 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 2562 |
|
RFQ | |
|
|
Chip Stock | ARM7TDMIâ„¢16/32-BITMcuWithFlash,Usb,Can,5Timers,Adc,10CommunicationsInterfaces | 8500 |
|
RFQ | |
|
|
Vyrian | Discontinued | 1476 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 64LQFP | 7000 |
|
$30.8001 / $39.7833 | Buy Now |
US Tariff Estimator: STR711FR2T6 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STR711FR2T6
STR711FR2T6 CAD Models
-

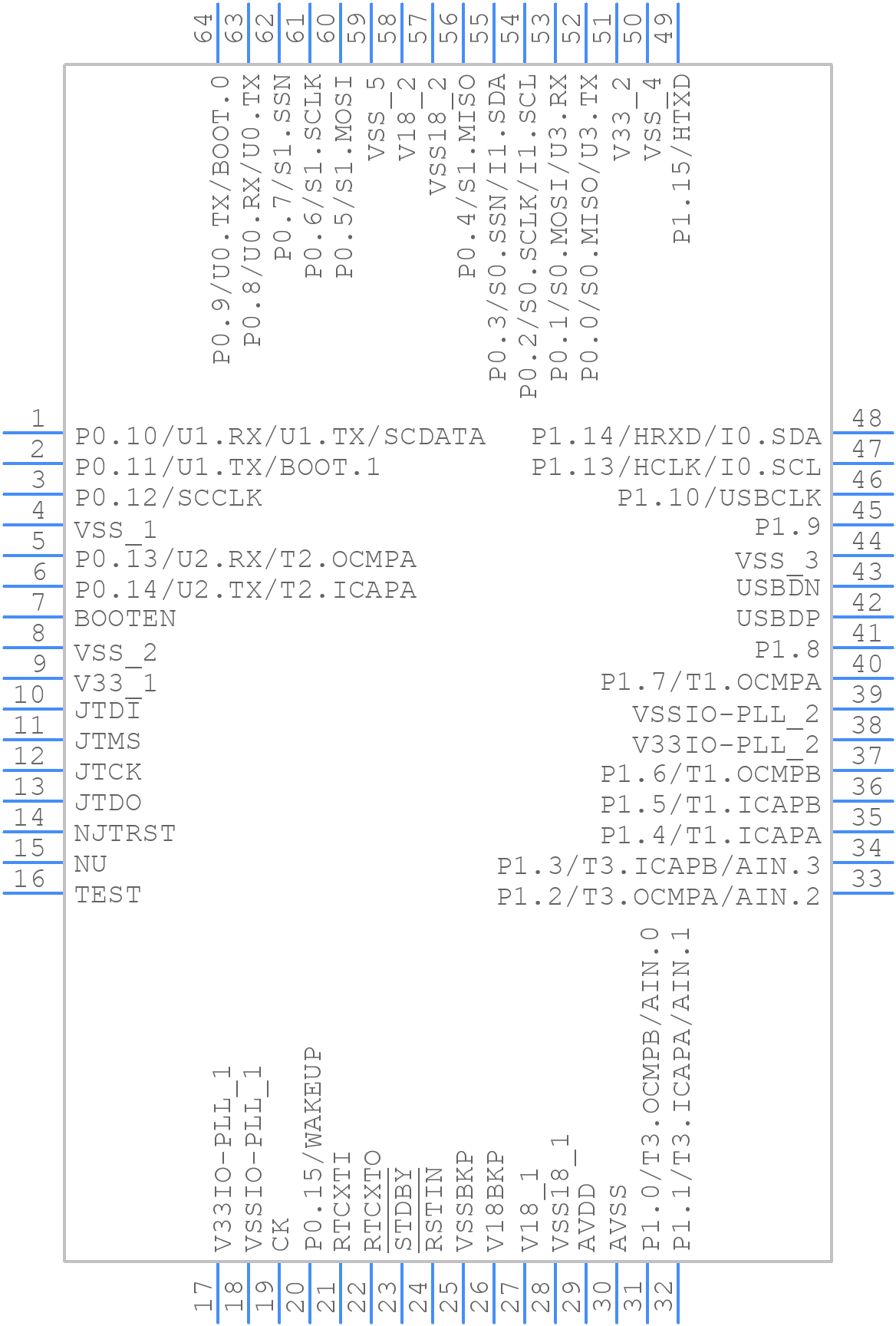

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STR711FR2T6 Part Data Attributes
|
|
STR711FR2T6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STR711FR2T6
STMicroelectronics
ARM7TDMI™ 16/32-BIT MCU WITH FLASH, USB, CAN, 5 TIMERS, ADC, 10 COMMUNICATIONS INTERFACES
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | QFP | |
| Package Description | 10 X 10 Mm, Lqfp-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | Arm7 | |
| Clock Frequency-Max | 16.5 Mhz | |
| DAC Channels | No | |
| DMA Channels | No | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 30 | |
| Number of Terminals | 64 | |
| On Chip Program ROM Width | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 65536 | |
| ROM (words) | 32768 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.6 Mm | |
| Speed | 66 Mhz | |
| Supply Current-Max | 100 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel Palladium Gold | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
Alternate Parts for STR711FR2T6
This table gives cross-reference parts and alternative options found for STR711FR2T6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STR711FR2T6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STR711FR2T3TR | STMicroelectronics | Check for Price | 32-BIT, FLASH, 66MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, LQFP-64 | STR711FR2T6 vs STR711FR2T3TR |
| STR711FR2T3 | STMicroelectronics | Check for Price | 32-BIT, FLASH, 66MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, LQFP-64 | STR711FR2T6 vs STR711FR2T3 |
| STR711FR2T1 | STMicroelectronics | Check for Price | 32-BIT, FLASH, 66MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, LQFP-64 | STR711FR2T6 vs STR711FR2T1 |
STR711FR2T6 Frequently Asked Questions (FAQ)
-
The STR711FR2T6 can operate in a temperature range of -40°C to 85°C.
-
The clock speed of the STR711FR2T6 can be configured using the Clock Control Register (CKCU). The clock speed can be set to 32 kHz, 4 MHz, or 8 MHz.
-
The maximum current consumption of the STR711FR2T6 is 20 mA at 3.3V and 25°C.
-
The ADC on the STR711FR2T6 can be used by configuring the ADC Control Register (ADC_CR) and the ADC Configuration Register (ADC_CFGR). The ADC can be triggered by a software trigger or an external trigger.
-
Yes, the STR711FR2T6 can be used with an external crystal oscillator. The external crystal oscillator can be connected to the OSC_IN and OSC_OUT pins.
