STTH16L06CFP Information
STTH16L06CFP by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH16L06CFP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2806747
|
Farnell | RECTIFIER, DUAL, 16A, 600V, TO-220FPAB COO: CN RoHS: Compliant Min Qty: 1 Lead time: 17 Weeks, 1 Days Container: Each | 1640 |
|
$1.0042 / $2.1584 | Buy Now |
|
DISTI #
STTH16L06CFP
|
Avnet Americas | Diode Switching 600V 16A 3-Pin(3+Tab) TO-220FPAB Tube - Rail/Tube (Alt: STTH16L06CFP) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.6743 / $0.7706 | Buy Now |
|
|
STMicroelectronics | 600 V, 16 A dual Low Drop Ultrafast Diode COO: France RoHS: Compliant Min Qty: 1 | 1127 |
|
$0.7000 / $1.9500 | Buy Now |
|
DISTI #
STTH16L06CFP
|
TME | Diode: rectifying, THT, 600V, 10Ax2, tube, Ifsm: 120A, TO220FPAB Min Qty: 1 | 145 |
|
$1.3900 / $1.8700 | Buy Now |
|
|
ComSIT USA | TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER Rectifier Diode, 1 Phase, 2 Element, 8A, 600V V(RRM), Silicon, TO-220AB ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
STTH16L06CFP
|
Avnet Silica | Diode Switching 600V 16A 3Pin3Tab TO220FPAB Tube (Alt: STTH16L06CFP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STTH16L06CFP
|
EBV Elektronik | Diode Switching 600V 16A 3Pin3Tab TO220FPAB Tube (Alt: STTH16L06CFP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 17 Weeks, 0 Days | EBV - 2350 |
|
Buy Now |
US Tariff Estimator: STTH16L06CFP by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STTH16L06CFP
STTH16L06CFP CAD Models
-
Part Symbol
-

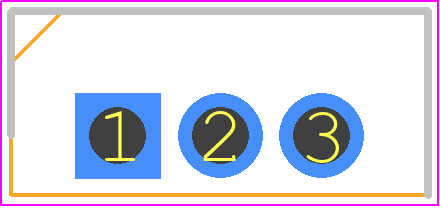

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STTH16L06CFP Part Data Attributes
|
|
STTH16L06CFP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH16L06CFP
STMicroelectronics
600 V, 16 A dual Low Drop Ultrafast Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | TO-220FPAB, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Application | HIGH VOLTAGE ULTRA FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 2.08 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 120 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 8 µA | |
| Reverse Recovery Time-Max | 0.055 µs | |
| Reverse Test Voltage | 600 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
