Capacitors / Fixed Capacitors / T495D476M025ATE120
Datasheets
packagee
T495D476M025ATE120 by: KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2917, CHIP

Part Details for T495D476M025ATE120 by KEMET Corporation

Results Overview of T495D476M025ATE120 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T495D476M025ATE120 Information

T495D476M025ATE120 by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for T495D476M025ATE120

Part # Distributor Description Stock Price Buy
DISTI # 02AC0116
Newark Cap, 47Μf, 25V, 20%, 2917, Capacitance:47Μf, Voltage Rating:25V, Tantalum Capacitor Case:2917 [7343 Metric], Product Range:T495 Series, Capacitance Tolerance:± 20%, Operating Temperature Min:-55°C, Operating Temperature Max:125°C, Rohs Compliant: Yes |Kemet T495D476M025ATE120 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 453
  • 1 $2.3100
  • 10 $1.5900
  • 25 $1.5100
$1.5100 / $2.3100 Buy Now
DISTI # 11AC4347
Newark Cap, 47Μf, 25V, 20%, Capacitance:47Μf, Voltage Rating:25V, Tantalum Capacitor Case:2917 [7343-31 Metric], Product Range:T495 Series, Capacitance Tolerance:± 20%, Operating Temperature Min:-55°C, Operating Temperature Max:125°C, Rohs Compliant: Yes |Kemet T495D476M025ATE120 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 500 $1.2400
  • 1,000 $1.2000
  • 2,000 $1.1500
  • 3,000 $1.1400
  • 5,000 $1.1300
$1.1300 / $1.2400 Buy Now
DISTI # T495D476M025ATE120
Avnet Americas - Tape and Reel (Alt: T495D476M025ATE120) COO: Mexico RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 500 $0.7748
  • 1,000 $0.7496
  • 2,000 $0.7264
  • 3,000 $0.7031
  • 4,000 $0.6836
$0.6836 / $0.7748 Buy Now
Bristol Electronics   34630
RFQ
Bristol Electronics   Min Qty: 3 293
  • 3 $1.8000
  • 13 $1.3500
  • 39 $1.1250
  • 135 $0.6750
$0.6750 / $1.8000 Buy Now
DISTI # T495D476M025ATE120
TME Capacitor: tantalum, low ESR, 47uF, 25VDC, SMD, D, 2917, ±20%, T495 Min Qty: 1 206
  • 1 $1.7000
  • 10 $1.2800
  • 50 $1.2000
$1.2000 / $1.7000 Buy Now
DISTI # T495D476M025ATE120
Avnet Abacus - Tape and Reel (Alt: T495D476M025ATE120) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Chip Stock CapTantSolid47uF25VDCASE20%(7.3X4.3X2.8mm)SMD7343-310.12Ohm125CT/R 625
RFQ

US Tariff Estimator: T495D476M025ATE120 by KEMET Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

T495D476M025ATE120
KEMET Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for T495D476M025ATE120

T495D476M025ATE120 CAD Models

  • Part Symbol

    schematic symbol

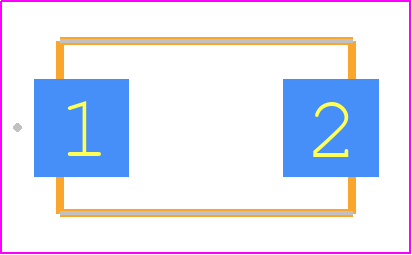

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T495D476M025ATE120 Part Data Attributes

Parametric Data
T495D476M025ATE120 KEMET Corporation
Buy Now Datasheet
Compare Parts:
T495D476M025ATE120 KEMET Corporation Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2917, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 12 Weeks
Additional Feature Ripple Current And Esr Is Measured At 100khz
Capacitance 47 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Dry/Solid)
ESR 120 MΩ
Height 2.8 Mm
JESD-609 Code e3
Leakage Current 0.0118 Ma
Length 7.3 Mm
Mounting Feature Surface Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Embossed Plastic, 7 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 25 V
Ripple Current 178.8 Ma
Size Code 2917
Surface Mount Yes
Tan Delta 0.06
Terminal Finish Matte Tin Over Nickel
Terminal Shape J Bend
Width 4.3 Mm

Alternate Parts for T495D476M025ATE120

This table gives cross-reference parts and alternative options found for T495D476M025ATE120. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T495D476M025ATE120, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T493D476M025AT6112 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025AT6112
T493D476M025AB6312 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025AB6312
T493D476M025BH6230WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025BH6230WAFL
T493D476M025AH64307640 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025AH64307640
T493D476M025BC6112 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025BC6112
T493D476M025CT6332 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025CT6332
T493D476M025CH6130WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025CH6130WAFL
T493D476M025CB6323 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025CB6323
T493D476M025AT63107610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495D476M025ATE120 vs T493D476M025AT63107610
CTC3ED47UF20%25V EXXELIA Group Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2917, CHIP T495D476M025ATE120 vs CTC3ED47UF20%25V
equivalents icon

T495D476M025ATE120 Related Parts

T495D476M025ATE120 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the T495D476M025ATE120 is 260°C for 10 seconds or less, with a peak temperature of 240°C.

  • Yes, the T495D476M025ATE120 is a high-reliability capacitor that meets the requirements of various industries, including aerospace, defense, and medical devices.

  • Yes, the T495D476M025ATE120 is designed to withstand high-vibration environments and meets the requirements of various vibration tests, including IEC 60068-2-6.

  • The ESR of the T495D476M025ATE120 is typically around 10-20 milliohms, depending on the frequency and operating conditions.

  • Yes, the T495D476M025ATE120 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
