T520D477M006ATE025 by: KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT

Part Details for T520D477M006ATE025 by KEMET Corporation

Results Overview of T520D477M006ATE025 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T520D477M006ATE025 Information

T520D477M006ATE025 by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for T520D477M006ATE025

Part # Distributor Description Stock Price Buy
DISTI # 94W4871
Newark Tantalum Capacitor 470Uf6.3V 0.025 Ohm 7343-31 20%, Capacitance:470Μf, Capacitance Tolerance:± 20%, Voltage(Dc):6.3V, Manufacturer Size Code:D, Esr:0.025Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm Rohs Compliant: Yes |Kemet T520D477M006ATE025 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 100 $1.6300
$1.6300 Buy Now
DISTI # 88K7320
Newark Tantalum Capacitor 470Uf6.3V 0.025 Ohm 7343-31 20%, Full Reel, Capacitance:470Μf, Capacitance Tolerance:± 20%, Voltage(Dc):6.3V, Manufacturer Size Code:D, Esr:0.025Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Width:4.3Mmrohs Compliant: Yes |Kemet T520D477M006ATE025 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 500 $1.2100
  • 1,000 $1.1700
  • 2,000 $1.1500
  • 3,000 $1.1200
  • 5,000 $1.1000
$1.1000 / $1.2100 Buy Now
DISTI # T520D477M006ATE025
Avnet Americas - Tape and Reel (Alt: T520D477M006ATE025) COO: Mexico RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 32 Weeks, 0 Days Container: Reel 0
  • 500 $1.1159
  • 1,000 $1.0879
  • 2,000 $1.0544
  • 4,000 $1.0210
  • 8,000 $0.9963
$0.9963 / $1.1159 Buy Now
Bristol Electronics   281
RFQ
DISTI # T520D477M006ATE025
TME Capacitor: tantalum-polymer, low ESR, 470uF, 6.3VDC, 296.1uA, D Min Qty: 500 0
  • 500 $1.4800
$1.4800 RFQ
DISTI # T520D477M006ATE025
Avnet Abacus - Tape and Reel (Alt: T520D477M006ATE025) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 32 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Chip Stock CapTantSolid470uF6.3VDCASE20%(7.3X4.3X2.8mm)SMD7343-310.025Ohm105CT/R 3300
RFQ
Win Source Electronics Polymer Tantalum Capacitors 470UF 6.3V 2917 1800
  • 45 $1.2272
  • 100 $1.0070
  • 155 $0.9755
  • 215 $0.9440
  • 275 $0.9126
  • 370 $0.8182
$0.8182 / $1.2272 Buy Now

US Tariff Estimator: T520D477M006ATE025 by KEMET Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

T520D477M006ATE025
KEMET Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for T520D477M006ATE025

T520D477M006ATE025 CAD Models

  • Part Symbol

    schematic symbol

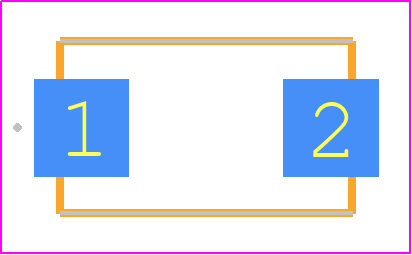

  • Footprint

    pcb footprint

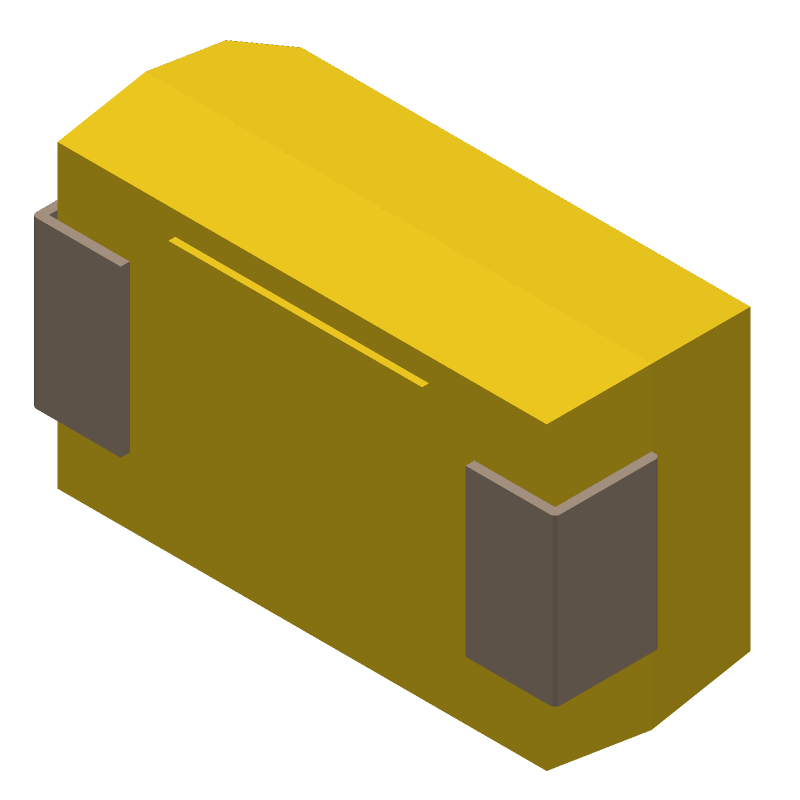

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T520D477M006ATE025 Part Data Attributes

Parametric Data
T520D477M006ATE025 KEMET Corporation
Buy Now Datasheet
Compare Parts:
T520D477M006ATE025 KEMET Corporation Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 28 Weeks
Additional Feature Esr And Ripple Current Is Measured At 100khz
Capacitance 470 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Solid Polymer)
ESR 25 MΩ
Height 2.8 Mm
JESD-609 Code e3
Leakage Current 0.2961 Ma
Length 7.3 Mm
Mounting Feature Surface Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Embossed Plastic, 7 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 6.3 V
Ripple Current 750 Ma
Size Code 2917
Surface Mount Yes
Tan Delta 0.1
Terminal Finish Matte Tin (Sn)
Terminal Shape J Bend
Width 4.3 Mm

Alternate Parts for T520D477M006ATE025

This table gives cross-reference parts and alternative options found for T520D477M006ATE025. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T520D477M006ATE025, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T55D477M6R3C0018 Vishay Intertechnologies $1.0426 Tantalum Capacitor, Tantalum (solid Polymer), T520D477M006ATE025 vs T55D477M6R3C0018
T55D477M6R3C0015 Vishay Intertechnologies $1.2354 Tantalum Capacitor, Tantalum (dry/solid), T520D477M006ATE025 vs T55D477M6R3C0015
T55D477M6R3C0007 Vishay Intertechnologies $1.9082 Tantalum Capacitor, Tantalum (solid Polymer), T520D477M006ATE025 vs T55D477M6R3C0007
T520D477M006AHE0257280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP T520D477M006ATE025 vs T520D477M006AHE0257280
T520D477M006AME015 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520D477M006ATE025 vs T520D477M006AME015
T520D477M006AME025 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520D477M006ATE025 vs T520D477M006AME025
T520D477M006APE0307280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520D477M006ATE025 vs T520D477M006APE0307280
T55D477M6R3C0025 Vishay Intertechnologies Check for Price Tantalum Capacitor, Tantalum (dry/solid), T520D477M006ATE025 vs T55D477M6R3C0025
T520D477M006AGE030 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520D477M006ATE025 vs T520D477M006AGE030
T543D477M006AKE025 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 6.3V, 20% +Tol, 20% -Tol, 470uF, 2917, T520D477M006ATE025 vs T543D477M006AKE025
equivalents icon

T520D477M006ATE025 Related Parts

T520D477M006ATE025 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the T520D477M006ATE025 is 260°C for 10 seconds or less, with a peak temperature of 240°C.

  • Yes, the T520D477M006ATE025 is a high-reliability capacitor that meets the requirements of various industries, including aerospace, defense, and medical devices.

  • Yes, the T520D477M006ATE025 is designed to withstand high-vibration environments and meets the requirements of various vibration tests, including IEC 60068-2-6.

  • The ESR of the T520D477M006ATE025 is typically around 10-20 milliohms, depending on the frequency and operating conditions.

  • Yes, the T520D477M006ATE025 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
