T521X156M075ATE035 by: KEMET Corporation

Tantalum Capacitor, Tantalum (solid Polymer)

Part Details for T521X156M075ATE035 by KEMET Corporation

Results Overview of T521X156M075ATE035 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

T521X156M075ATE035 Information

T521X156M075ATE035 by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for T521X156M075ATE035

Part # Distributor Description Stock Price Buy
DISTI # 81Y7473
Newark Cap, 15Uf, 2.6A, 75V, X Case, 2917, Capacitance:15Μf, Voltage Rating:75V, Product Range:T52X Ko-Cap® Series, Capacitance Tolerance:± 20%, Manufacturer Size Code:X, Esr:0.035Ohm, Operating Temperature Min:-55°C, Operating Rohs Compliant: Yes |Kemet T521X156M075ATE035 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 392
  • 1 $7.7100
  • 10 $5.1900
  • 25 $5.0800
  • 50 $5.0100
  • 100 $4.9300
  • 250 $4.7400
  • 500 $4.5400
$4.5400 / $7.7100 Buy Now
DISTI # 42AC9644
Newark Cap, Tant, Polymer, 15Uf, 75V, Case X, Capacitance:15Μf, Capacitance Tolerance:± 20%, Voltage(Dc):75V, Manufacturer Size Code:X, Esr:0.035Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm, Product Width:4.3Mm Rohs Compliant: Yes |Kemet T521X156M075ATE035 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 100 $4.4000
$4.4000 Buy Now
DISTI # 78Y8608
Newark Cap, Tant, Polymer, 15Uf, 75V, Case X, Capacitance:15Μf, Capacitance Tolerance:± 20%, Voltage(Dc):75V, Manufacturer Size Code:X, Esr:0.035Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm, Product Width:4.3Mm Rohs Compliant: Yes |Kemet T521X156M075ATE035 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 500 $4.7100
  • 1,000 $4.6700
  • 2,000 $4.6200
  • 3,000 $4.5800
$4.5800 / $4.7100 Buy Now
DISTI # T521X156M075ATE035
Avnet Americas - Tape and Reel (Alt: T521X156M075ATE035) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 25 Weeks, 0 Days Container: Reel 0
  • 500 $3.7976
  • 1,000 $3.7023
  • 2,000 $3.5885
  • 4,000 $3.4747
  • 8,000 $3.4262
$3.4262 / $3.7976 Buy Now
DISTI # 73942645
RS T521 TANTALUM CAPACITOR 15UF 75V 20% Min Qty: 500 Package Multiple: 1 Lead time: 27 Weeks, 0 Days Container: Bulk 0
  • 500 $6.1000
$6.1000 RFQ
Bristol Electronics   355
RFQ
DISTI # T521X156M075ATE035
TME Capacitor: tantalum-polymer, low ESR, 15uF, 75VDC, 112.5uA, X, 2917 Min Qty: 1 505
  • 1 $7.6100
  • 10 $5.2200
  • 50 $4.6500
  • 500 $4.0000
  • 1,000 $3.8200
  • 1,500 $3.7300
  • 2,500 $3.6000
$3.6000 / $7.6100 Buy Now
DISTI # T521X156M075ATE035
Avnet Abacus - Tape and Reel (Alt: T521X156M075ATE035) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 44 Weeks, 0 Days Container: Reel Abacus - 1000
Buy Now
DISTI # T521X156M075ATE035
Avnet Asia (Alt: T521X156M075ATE035) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 35 Weeks, 0 Days 0
  • 500 $4.7570
  • 1,000 $4.6910
  • 1,500 $4.6267
  • 2,500 $4.5642
  • 5,000 $4.4441
  • 12,500 $4.3301
  • 25,000 $4.2219
$4.2219 / $4.7570 Buy Now
Chip Stock TantalumCapacitor,Polarized,Tantalum(solidPolymer),75V,20%+Tol,20%-Tol,15uF,SurfaceMount,2917 8500
RFQ

US Tariff Estimator: T521X156M075ATE035 by KEMET Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

T521X156M075ATE035
KEMET Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for T521X156M075ATE035

T521X156M075ATE035 CAD Models

  • Part Symbol

    schematic symbol

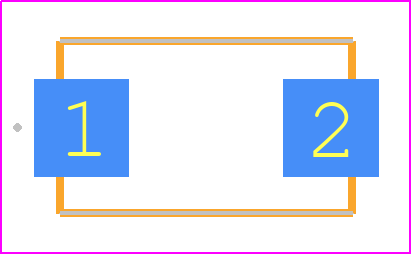

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T521X156M075ATE035 Part Data Attributes

Parametric Data
T521X156M075ATE035 KEMET Corporation
Buy Now Datasheet
Compare Parts:
T521X156M075ATE035 KEMET Corporation Tantalum Capacitor, Tantalum (solid Polymer)
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 28 Weeks
Samacsys Manufacturer KEMET
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 15 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 35 mΩ
Height 4 mm
JESD-609 Code e3
Leakage Current 0.1125 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 75 V
Ripple Current 845 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.1
Terminal Finish Matte Tin (Sn)
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for T521X156M075ATE035

This table gives cross-reference parts and alternative options found for T521X156M075ATE035. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T521X156M075ATE035, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T598X156M075ATE075 KEMET Corporation $3.4725 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 75V, 20% +Tol, 20% -Tol, 15uF, Surface Mount, 2917, CHIP T521X156M075ATE035 vs T598X156M075ATE075
T521X156M075AHE0357280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer) T521X156M075ATE035 vs T521X156M075AHE0357280
T521X156M075ATE0357280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer) T521X156M075ATE035 vs T521X156M075ATE0357280
T521X156M075AGE035 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X156M075ATE035 vs T521X156M075AGE035
T521X156M075APE035 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X156M075ATE035 vs T521X156M075APE035
T521X156M075AME0357280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X156M075ATE035 vs T521X156M075AME0357280
T521X156M075AME035 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X156M075ATE035 vs T521X156M075AME035
T591X156M075ATE075 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 75V, 20% +Tol, 20% -Tol, 15uF, Surface Mount, 2917, CHIP T521X156M075ATE035 vs T591X156M075ATE075
equivalents icon

T521X156M075ATE035 Related Parts

T521X156M075ATE035 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the T521X156M075ATE035 is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the T521X156M075ATE035 is a high-reliability capacitor that meets the requirements of AEC-Q200, making it suitable for automotive and other high-reliability applications.

  • The ESR of the T521X156M075ATE035 is typically around 10-15 mohms, but this can vary depending on the frequency and operating conditions.

  • The T521X156M075ATE035 has a rated voltage of 75V, but it can be used in high-voltage applications up to 100V with proper derating and consideration of the capacitor's electrical characteristics.

  • Yes, the T521X156M075ATE035 is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
