Capacitors / Fixed Capacitors / TAJB476M010RNJ
Datasheets
packagee
TAJB476M010RNJ by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP

Part Details for TAJB476M010RNJ by Kyocera AVX Components

Results Overview of TAJB476M010RNJ by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TAJB476M010RNJ Information

TAJB476M010RNJ by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TAJB476M010RNJ

Part # Distributor Description Stock Price Buy
DISTI # 65M4825
Newark Tantalum Capacitor, 47Uf, 10V, 1 Ohm, 0.2, 1210, Full Reel, Capacitance:47Μf, Voltage(Dc):10V, Capacitor Case/Package:1411 [3528 Metric], Capacitance Tolerance:± 20%, Esr:1Ohm, Manufacturer Size Code:B, Failure Rate:- Rohs Compliant: Yes |Kyocera Avx TAJB476M010RNJ RoHS: Compliant Min Qty: 124 Package Multiple: 1 Date Code: 1 Container: Reel 2000
  • 124 $0.1230
  • 248 $0.1230
  • 496 $0.1230
  • 744 $0.1230
  • 1,240 $0.1230
$0.1230 Buy Now
DISTI # 60R5918
Newark Tantalum Capacitor, 47Uf, 10V, 1 Ohm, 0.2, 1210, Capacitance:47Μf, Voltage(Dc):10V, Capacitor Case/Package:1411 [3528 Metric], Capacitance Tolerance:± 20%, Esr:1Ohm, Manufacturer Size Code:B, Failure Rate:-, Ripple Current:292Ma Rohs Compliant: Yes |Kyocera Avx TAJB476M010RNJ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1014
  • 1 $0.4240
  • 10 $0.2200
  • 25 $0.2080
$0.2080 / $0.4240 Buy Now
DISTI # TAJB476M010RNJ
Avnet Americas - Tape and Reel (Alt: TAJB476M010RNJ) COO: El Salvador RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel 62000
  • 2,000 $0.1119
  • 4,000 $0.1043
  • 8,000 $0.1025
  • 16,000 $0.1007
  • 32,000 $0.0989
$0.0989 / $0.1119 Buy Now
DISTI # 65M4825
Avnet Americas - Tape and Reel (Alt: 65M4825) COO: El Salvador RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Container: Reel 2000 Partner Stock
  • 1 $0.1780
  • 248 $0.1720
  • 496 $0.1660
  • 744 $0.1600
  • 1,240 $0.1510
$0.1510 / $0.1780 Buy Now
DISTI # 60R5918
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 60R5918) COO: El Salvador RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 1114 Partner Stock
  • 1 $0.4240
  • 10 $0.2200
  • 25 $0.2080
  • 50 $0.1960
  • 100 $0.1840
  • 250 $0.1570
$0.1570 / $0.4240 Buy Now
DISTI # 70002342
RS CAPACITOR, TANTALUM, CAP 47UF, TOL 20%, SMT, VOL-RTG 10V, CODE 3528, TR Min Qty: 2000 Package Multiple: 1 Container: Bulk 0
  • 2,000 $0.3930
$0.3930 RFQ
Bristol Electronics   Min Qty: 11 2250
  • 11 $0.4875
  • 32 $0.2437
  • 207 $0.1462
  • 1,027 $0.0975
$0.0975 / $0.4875 Buy Now
DISTI # TAJB476M010RNJ
TME Capacitor: tantalum, 47uF, 10VDC, SMD, B, 1210, ±20%, -55÷125°C, TAJ Min Qty: 1 0
  • 1 $0.4200
  • 2,000 $0.1130
  • 4,000 $0.1060
  • 6,000 $0.1050
$0.1050 / $0.4200 RFQ
ComSIT USA STANDARD AND LOW PROFILE TANTALUM CAPACITOR Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1210 ECCN: EAR99 RoHS: Compliant Stock DE - 6630
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # TAJB476M010RNJ
IBS Electronics CAP TANT SOLID 47UF 10V B CASE 20% (3.5 X 2.8 X 1.9MM) SMD 3528-21 1 OHM 125A&#x81, HA&#x81, &#x8E, T/R Min Qty: 1 Package Multiple: 1 1150
  • 1 $0.5530
  • 15 $0.4410
  • 50 $0.3920
  • 250 $0.3220
  • 1,000 $0.2646
  • 2,000 $0.1282
  • 4,000 $0.1259
  • 6,000 $0.1246
  • 8,000 $0.1236
$0.1236 / $0.5530 Buy Now
DISTI # KTA6839
Rutronik TC 47uF 10V 20% Case B RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Container: Reel Stock DE - 0
Stock HK - 0
Stock US - 14000
Stock SG - 0
  • 2,000 $0.1416
  • 4,000 $0.1345
  • 6,000 $0.1333
  • 8,000 $0.1321
  • 10,000 $0.1262
$0.1262 / $0.1416 Buy Now
Chip 1 Exchange INSTOCK 1876
RFQ
DISTI # TAJB476M010RNJ
Avnet Abacus - Tape and Reel (Alt: TAJB476M010RNJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # TAJB476M010RNJ
Avnet Asia (Alt: TAJB476M010RNJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days 8000
RFQ
LCSC 47uF 10V 1100kHz 20% CASE-B-3528-21(mm) Tantalum Capacitors RoHS 10705
  • 5 $0.1366
  • 50 $0.1226
  • 150 $0.1166
  • 500 $0.1091
  • 2,000 $0.0868
  • 4,000 $0.0848
$0.0848 / $0.1366 Buy Now
New Advantage Corporation TAJ Series 47 uF �20 % 10 V Surface Mount Standard Tantalum Chip Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 2000 332000
  • 2,000 $0.1527
  • 332,000 $0.1409
$0.1409 / $0.1527 Buy Now

US Tariff Estimator: TAJB476M010RNJ by Kyocera AVX Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

TAJB476M010RNJ
Kyocera AVX Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for TAJB476M010RNJ

TAJB476M010RNJ CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

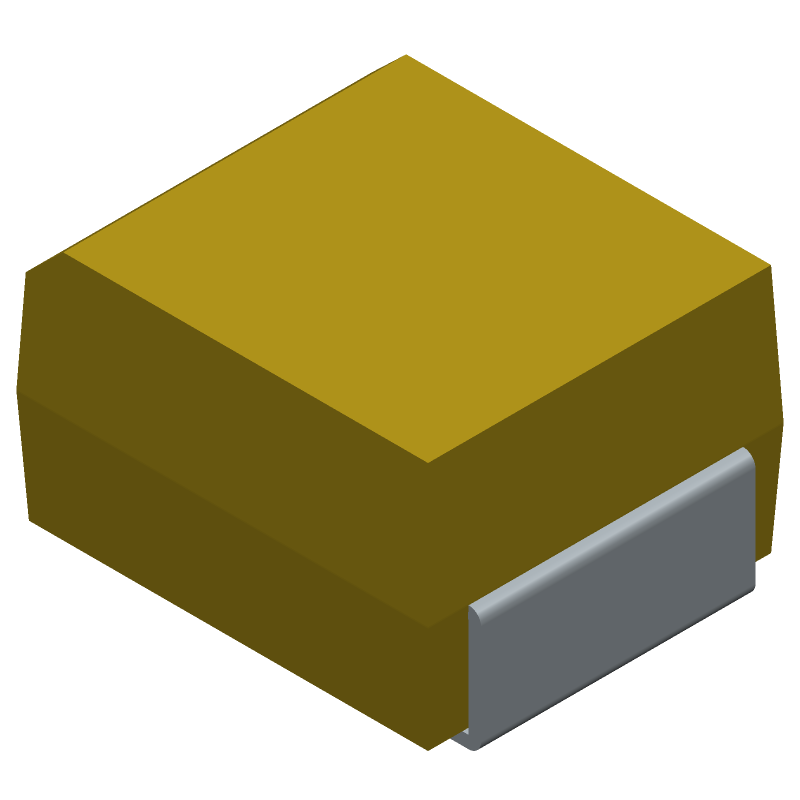

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TAJB476M010RNJ Part Data Attributes

Parametric Data
TAJB476M010RNJ Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TAJB476M010RNJ Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Additional Feature Esr And Ripple Current Is Measured At 100khz
Capacitance 47 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Dry/Solid)
ESR 1000 MΩ
Height 1.9 Mm
JESD-609 Code e3
Leakage Current 0.0047 Ma
Length 3.5 Mm
Mounting Feature Surface Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Plastic, 7 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Ripple Current 117 Ma
Size Code 1210
Surface Mount Yes
Tan Delta 0.08
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape J Bend
Width 2.8 Mm

Alternate Parts for TAJB476M010RNJ

This table gives cross-reference parts and alternative options found for TAJB476M010RNJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TAJB476M010RNJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TBJB476M010CBSZ0H45 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010CBSZ0H45
TBJB476M010LRSZ0024 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010LRSZ0024
TBJB476M010LBSC0845 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010LBSC0845
TBJB476M010CSLB0900 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010CSLB0900
TBJB476M010CBLC0H45 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010CBLC0H45
TBJB476M010CBLB0923 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010CBLB0923
TBJB476M010CBSB0845 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010CBSB0845
TBJB476M010LSSZ0H45 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010LSSZ0H45
TBJB476M010LSLC0845 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010LSLC0845
TBJB476M010LBSC0045 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 47uF, 1411, TAJB476M010RNJ vs TBJB476M010LBSC0045
equivalents icon

TAJB476M010RNJ Related Parts

TAJB476M010RNJ Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the TAJB476M010RNJ is 260°C (500°F) for a maximum of 10 seconds.

  • Yes, the TAJB476M010RNJ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The maximum operating voltage for the TAJB476M010RNJ is 10VDC.

  • Yes, the TAJB476M010RNJ is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • No, the TAJB476M010RNJ is a non-polarized capacitor, meaning it can be used in AC or DC circuits without worrying about polarity.
