Part Details for TC4422AVOA713 by Microchip Technology Inc
Results Overview of TC4422AVOA713 by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
Automotive
TC4422AVOA713 Information
TC4422AVOA713 by Microchip Technology Inc is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TC4422AVOA713
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22K2736
|
Newark | Ic, single Mosfet Driver, cmos, sop,8Pin, plastic Rohs Compliant: Yes |Microchip TC4422AVOA713 RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.9400 | Buy Now |
|
DISTI #
TC4422AVOA713
|
Avnet Americas | MOSFET DRVR 10A 1-OUT Lo Side Non-Inv 8-Pin SOIC N T/R - Tape and Reel (Alt: TC4422AVOA713) COO: China RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$1.9875 / $2.2714 | Buy Now |
|
DISTI #
TC4422AVOA713
|
Microchip Technology Inc | 9A SNGL MOSFET DRVR, SOIC, Projected EOL: 2034-05-03 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Reel | In Stock: 0 and Alternates Available |
|
$1.8000 / $2.4600 | Buy Now |
|
DISTI #
70453997
|
RS | 9A SNGL MOSFET DRVR8 SOIC 3.90MM(.150IN) T/R Min Qty: 3300 Package Multiple: 1 Lead time: 41 Weeks, 0 Days Container: Bulk | 0 |
|
$2.3700 | RFQ |
|
|
NAC | 9A Low Side Single Non-Inv Gate Drvr, SOIC-8. Package: 8 SOIC 3.90mm(.150in) T/R - DRIVERS Product Line RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 | 0 |
|
$1.9900 / $2.4500 | Buy Now |
|
DISTI #
TC4422AVOA713
|
Avnet Silica | MOSFET DRVR 10A 1OUT Lo Side NonInv 8Pin SOIC N TR (Alt: TC4422AVOA713) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | ICGATEDRVRLOW-SIDE8SOICLow-SideGateDriverICNon-Inverting8-SOIC | 11500 |
|
RFQ | |
|
DISTI #
TC4422AVOA713
|
EBV Elektronik | MOSFET DRVR 10A 1OUT Lo Side NonInv 8Pin SOIC N TR (Alt: TC4422AVOA713) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 7 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 1 SOIC-8 Gate Drivers RoHS | 194 |
|
$1.7295 / $2.6794 | Buy Now |
|
|
Win Source Electronics | 9A High-Speed MOSFET Drivers | IC MOSFET DRVR 9A N-INV 8SOIC | 10000 |
|
$1.9131 / $2.4710 | Buy Now |
US Tariff Estimator: TC4422AVOA713 by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TC4422AVOA713
TC4422AVOA713 CAD Models
-

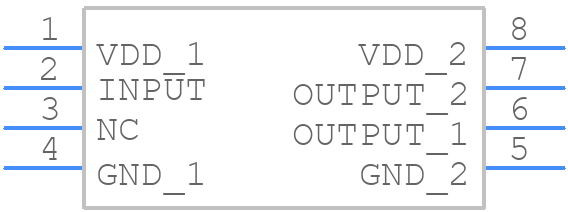

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TC4422AVOA713 Part Data Attributes
|
|
TC4422AVOA713
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC4422AVOA713
Microchip Technology Inc
9A SNGL MOSFET DRVR
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOIC-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 5 Weeks | |
| High Side Driver | Yes | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Buffer Or Inverter Based Mosfet Driver | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Totem-Pole | |
| Output Peak Current Limit-Nom | 10 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 0.5 Ma | |
| Supply Voltage-Max | 18 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 12 V | |
| Supply Voltage1-Max | 18 V | |
| Supply Voltage1-Min | 4.5 V | |
| Supply Voltage1-Nom | 12 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Turn-off Time | 0.1 µS | |
| Turn-on Time | 0.105 µS | |
| Width | 3.91 Mm |
Alternate Parts for TC4422AVOA713
This table gives cross-reference parts and alternative options found for TC4422AVOA713. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC4422AVOA713, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC4422AVOA713-VAO | Microchip Technology Inc | Check for Price | 9A SNGL MOSFET DRVR | TC4422AVOA713 vs TC4422AVOA713-VAO |
TC4422AVOA713 Frequently Asked Questions (FAQ)
-
The TC4422AVOA713 is a high-speed buffer/driver, and its maximum operating frequency is typically 100 MHz, but it can be used at higher frequencies with proper design and layout considerations.
-
To prevent signal reflections, it's essential to properly terminate the TC4422AVOA713. This can be done by using a series resistor at the output, and a parallel resistor and capacitor at the input. The values of these components depend on the specific application and frequency of operation.
-
To ensure stable operation, it's recommended to decouple the power supply pins (VCC and GND) with a 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel. This helps to filter out noise and reduce power supply ripple.
-
Yes, the TC4422AVOA713 can be used as a line driver for long cables. However, it's essential to consider the cable's capacitance and inductance, as well as the signal frequency and amplitude, to ensure signal integrity and prevent signal degradation.
-
To protect the TC4422AVOA713 from ESD, it's recommended to handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container. Additionally, consider adding ESD protection diodes or resistors in the circuit design.
