Part Details for TC7107ACPL by Microchip Technology Inc
Results Overview of TC7107ACPL by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
Robotics and Drones
TC7107ACPL Information
TC7107ACPL by Microchip Technology Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for TC7107ACPL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96K4041
|
Newark | Analog To Digital Converter Adc, 3.5Bit, Dip-40, No. Of Digits:3.5 Digits, Sampling Rate:-, Input Channel Type:Differential, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:-, Supply Voltage Max:5V, Msl:- Rohs Compliant: Yes |Microchip TC7107ACPL RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.2000 / $6.5100 | Buy Now |
|
DISTI #
TC7107ACPL
|
Avnet Americas | - Rail/Tube (Alt: TC7107ACPL) COO: China RoHS: Compliant Min Qty: 90 Package Multiple: 10 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$3.5942 / $3.6814 | Buy Now |
|
DISTI #
TC7107ACPL
|
Microchip Technology Inc | 3-1/2 Digit A/D, w/ LED Driver, PDIP, Projected EOL: 2034-01-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 300 and Alternates Available |
|
$4.7800 / $8.1900 | Buy Now |
|
DISTI #
70045788
|
RS | MICROCHIP TC7107ACPL, ADC, DIFFERENTIAL INPUT, 40-PIN PDIP Min Qty: 90 Package Multiple: 1 Lead time: 36 Weeks, 0 Days Container: Bulk | 0 |
|
$7.3700 / $8.1900 | RFQ |
|
|
Bristol Electronics | 338 |
|
RFQ | ||
|
DISTI #
TC7107ACPL
|
IBS Electronics | SINGLE CHANNEL SINGLE ANALOG TO DIGITAL CONVERTER DUAL SLOW PE 3 1/2DIGIT LED 40-PIN PDIP Min Qty: 140 Package Multiple: 1 | 0 |
|
$5.2640 / $5.6280 | Buy Now |
|
|
NAC | 3-1/2 Digit A/D, w/ LED Driver. Package: 40 PDIP .600in TUBE - MIXED SIGNAL PRODUCTS Product Line RoHS: Compliant Min Qty: 80 Package Multiple: 10 Container: Tube | 0 |
|
$3.8000 / $4.5900 | Buy Now |
|
DISTI #
TC7107ACPL
|
Avnet Silica | (Alt: TC7107ACPL) RoHS: Compliant Min Qty: 90 Package Multiple: 10 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | DisplayDriveADConverter,3.5Digits,Differential,Dual(+/-),6V,40Pins,PDIP | 1125 |
|
RFQ | |
|
DISTI #
TC7107ACPL
|
EBV Elektronik | (Alt: TC7107ACPL) RoHS: Compliant Min Qty: 90 Package Multiple: 10 Lead time: 7 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: TC7107ACPL by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TC7107ACPL
TC7107ACPL CAD Models
-

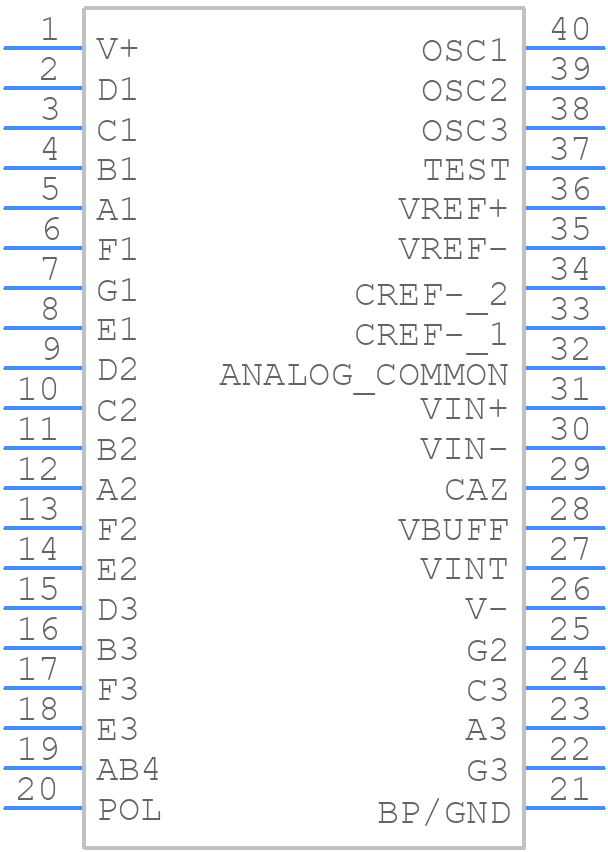

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TC7107ACPL Part Data Attributes
|
|
TC7107ACPL
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC7107ACPL
Microchip Technology Inc
3-1/2 Digit A/D, w/ LED Driver
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip40,.6 | |
| Pin Count | 40 | |
| Manufacturer Package Code | PDIP-40 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Analog Input Voltage-Max | 3.35 V | |
| Analog Input Voltage-Min | 2.7 V | |
| Converter Type | Adc, Dual-Slope | |
| JESD-30 Code | R-PDIP-T40 | |
| JESD-609 Code | e3 | |
| Length | 51.753 Mm | |
| Number of Analog In Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP40,.6 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Qualification Status | Not Qualified | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 6.35 Mm | |
| Supply Current-Max | 1.8 Ma | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 15.24 Mm |
Alternate Parts for TC7107ACPL
This table gives cross-reference parts and alternative options found for TC7107ACPL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC7107ACPL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC7106IKW | Microchip Technology Inc | $10.0254 | 3-1/2 Digit A/D, w/LCD Driver | TC7107ACPL vs TC7106IKW |
| TC7107IPL | Microchip Technology Inc | $12.1923 | 3-1/2 Digit A/D, w/ LED Driver | TC7107ACPL vs TC7107IPL |
| TC7129CKW | Microchip Technology Inc | $20.8027 | 4-1/2 Digit A/D w/LCD Driver | TC7107ACPL vs TC7129CKW |
| TC7116CKW | Microchip Technology Inc | $6.9059 | 3-1/2 Digit A/D, w/ Hold | TC7107ACPL vs TC7116CKW |
| TC7106ACKW | Microchip Technology Inc | $9.3449 | 3-1/2 Digit A/D, w/ LCD Driver | TC7107ACPL vs TC7106ACKW |
| TC7107IPT713 | Microchip Technology Inc | Check for Price | 3-1/2 Digit A/D, w/LED Driver | TC7107ACPL vs TC7107IPT713 |
| TC7116CPT713 | Microchip Technology Inc | Check for Price | 3-1/2 Digit A/D, w/Hold | TC7107ACPL vs TC7116CPT713 |
| TC7107AILW | Microchip Technology Inc | Check for Price | 3-1/2 Digit A/D, w/LCD Driver | TC7107ACPL vs TC7107AILW |
| TC7107AIKW713 | Microchip Technology Inc | Check for Price | 3-1/2 Digit A/D, w/LCD Driver | TC7107ACPL vs TC7107AIKW713 |
| TC7107AIKW | Microchip Technology Inc | Check for Price | 3-1/2 Digit A/D, w/LCD Driver | TC7107ACPL vs TC7107AIKW |
TC7107ACPL Frequently Asked Questions (FAQ)
-
The TC7107ACPL can handle input voltages up to 40V, but it's recommended to operate within the specified range of 4.5V to 30V for optimal performance.
-
To ensure accurate voltage measurement, make sure to use a high-impedance input source, minimize noise and interference, and use a stable reference voltage. Also, calibrate the device according to the datasheet recommendations.
-
The 'Zero' pin is used to set the zero-scale voltage reference for the device. It's typically connected to a stable voltage reference or a voltage divider network to set the desired zero-scale voltage.
-
The TC7107ACPL is designed for low-frequency applications, and its bandwidth is limited to around 100 kHz. For high-frequency applications, consider using a different device or a specialized high-frequency voltage-to-frequency converter.
-
The TC7107ACPL can be interfaced with a microcontroller using a digital counter or a timer to measure the frequency output. The microcontroller can then convert the frequency measurement to a voltage reading using the device's transfer function.
