Part Details for TDA7850
TDA7850 CAD Models
-

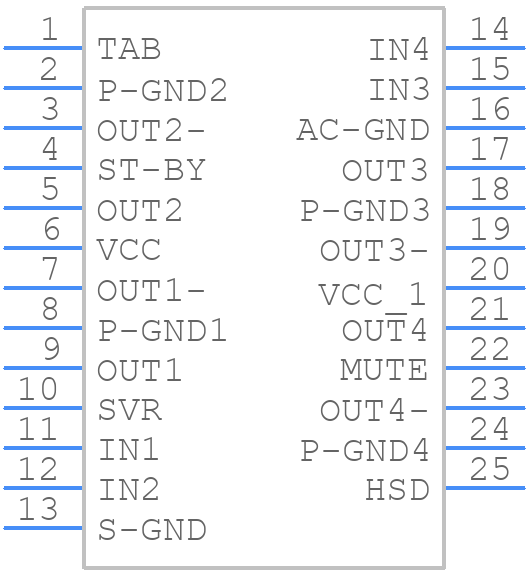

Part Symbol
-

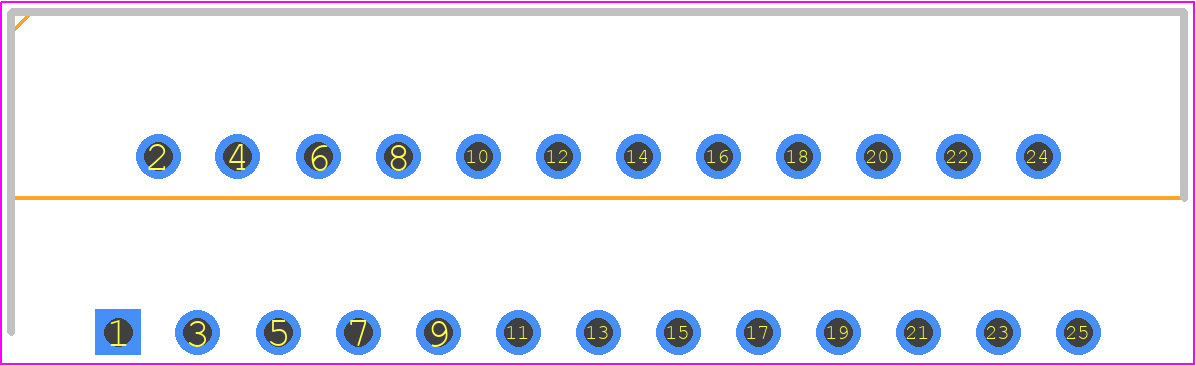

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TDA7850 Part Data Attributes
|
|
TDA7850
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TDA7850
STMicroelectronics
4 x 50 W MOSFET quad bridge power amplifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | ZFM | |
| Package Description | ROHS COMPLIANT, FLEXIWATT-25 | |
| Pin Count | 25 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Bandwidth-Nom | 20 kHz | |
| Consumer IC Type | CLASS AB AUDIO AMPLIFIER | |
| Gain | 26 dB | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | R-XZIP-T25 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 25 | |
| Output Power-Nom | 80 W | |
| Package Body Material | UNSPECIFIED | |
| Package Code | ZIP | |
| Package Equivalence Code | ZIP25,.16,.16,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Supply Current-Max | 280 mA | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Surface Mount | NO | |
| Technology | MOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1 mm | |
| Terminal Position | ZIG-ZAG |
Alternate Parts for TDA7850
This table gives cross-reference parts and alternative options found for TDA7850. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TDA7850, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TA8266HQ | Toshiba America Electronic Components | Check for Price | IC 23 W, 4 CHANNEL, AUDIO AMPLIFIER, PZFM25, 1 MM PITCH, PLASTIC, HZIP-25, Audio/Video Amplifier | TDA7850 vs TA8266HQ |
TDA7850 Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and grounding to minimize EMI.
-
According to STMicroelectronics, a decoupling capacitor of 10uF to 22uF should be placed as close as possible to the TDA7850's power pins, with a voltage rating of at least 16V. Additionally, a 100nF capacitor can be added in parallel to filter high-frequency noise.
-
The maximum allowed voltage on the TDA7850's input pins is 12V, but it's recommended to keep the input voltage below 10V to ensure reliable operation and prevent damage to the device.
-
The TDA7850's gain settings can be configured using external resistors and capacitors. STMicroelectronics provides a gain calculation tool and application notes (e.g., AN2863) to help engineers optimize the gain settings for their specific application.
-
STMicroelectronics recommends using a heat sink with a thermal resistance of less than 10°C/W to keep the TDA7850's junction temperature below 150°C. A thermal interface material (TIM) can be used to improve heat transfer between the device and heat sink.
