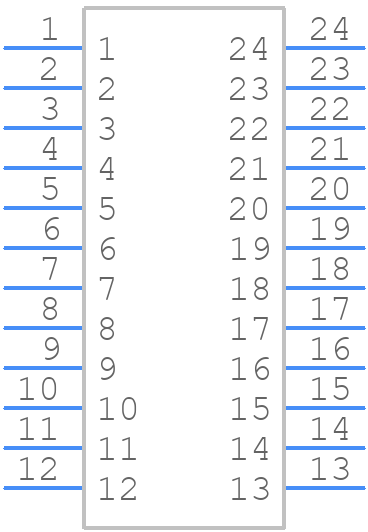

Part Symbol
-

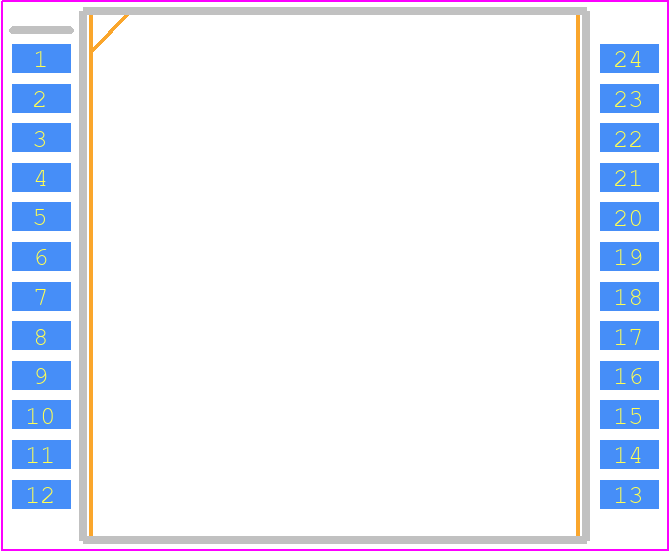

Footprint
-

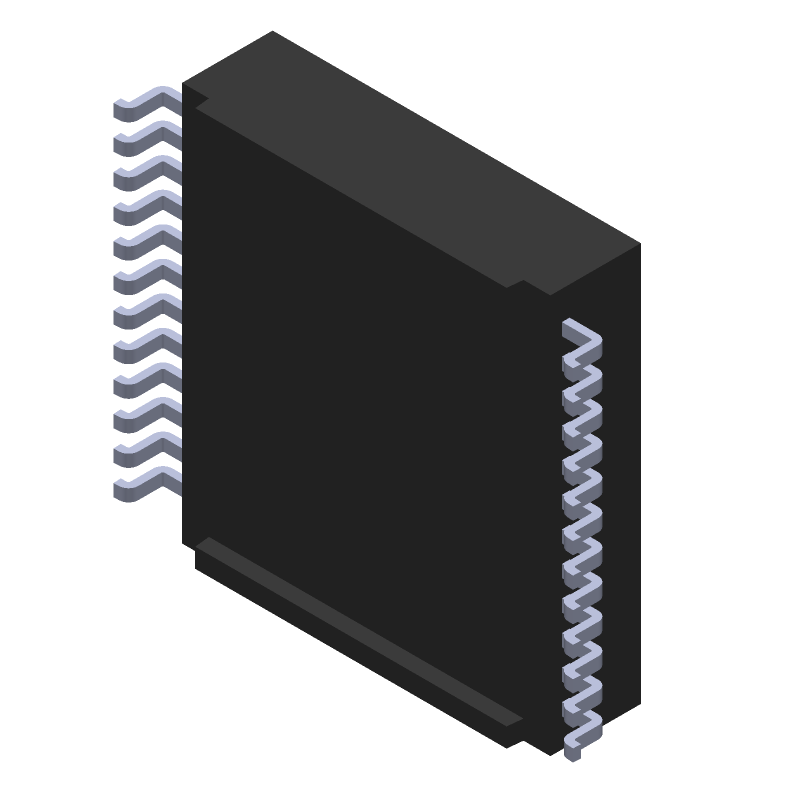

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TG111-E001J24RL by Halo Electronics Inc
Results Overview of TG111-E001J24RL by Halo Electronics Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TG111-E001J24RL Information
TG111-E001J24RL by Halo Electronics Inc is a Pulse/Datacom Transformer.
Pulse/Datacom Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for TG111-E001J24RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TG111-E001J24RL
|
Avnet Americas | TRANSFORMERS AUDIO & SIGNAL GIGABIT ISO MOD SMD 24P LW PRFL 1 PORT - Rail/Tube (Alt: TG111-E001J24RL) COO: China RoHS: Compliant Min Qty: 532 Package Multiple: 38 Lead time: 14 Weeks, 0 Days Container: Tube | 0 |
|
$4.2048 / $4.4590 | Buy Now |
|
|
Chip Stock | DatacomTransformer,10/100BASE-TX, ETHERNETApplication(s) | 5403 |
|
RFQ |
Part Details for TG111-E001J24RL
TG111-E001J24RL CAD Models
TG111-E001J24RL Part Data Attributes
|
|
TG111-E001J24RL
Halo Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
TG111-E001J24RL
Halo Electronics Inc
Datacom Transformer, 10/100 BASE-TX; ETHERNET Application(s),
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Additional Feature | Height Dimension Includes Terminals Also | |
| Application | 10/100 Base-Tx; Ethernet | |
| Height | 3.76 Mm | |
| Isolation Voltage | 1500 V | |
| Length | 13.21 Mm | |
| Mounting Feature | Surface Mount | |
| Number of Functions | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Primary Inductance | 350 µH | |
| Surface Mount | Yes | |
| Transformer Type | Datacom Transformer | |
| Width | 12.19 Mm |
TG111-E001J24RL Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting Halo Electronics Inc directly. A good rule of thumb is to follow the IPC-7351 standard for land pattern design and to ensure a solid ground plane under the component.
-
To ensure optimal thermal performance, ensure good airflow around the component, use a thermal interface material (TIM) between the component and the heat sink, and design the PCB to dissipate heat efficiently. A heat sink with a thermal resistance of 10°C/W or lower is recommended.
-
The recommended soldering profile for the TG111-E001J24RL is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. It's essential to follow the manufacturer's recommended soldering profile to prevent damage to the component.
-
To handle the component's ESD sensitivity, ensure that all personnel handling the component are grounded, use ESD-safe packaging and storage materials, and follow proper ESD handling procedures. The component should be stored in a dry, ESD-safe environment.
-
The reliability and lifespan expectations for the TG111-E001J24RL are dependent on various factors, including operating conditions, storage conditions, and handling practices. According to the manufacturer's specifications, the component is designed to meet a minimum of 100,000 hours of operation at 40°C. However, actual lifespan may vary depending on the application and operating conditions.
