THS4522IPW Information
THS4522IPW by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for THS4522IPW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
THS4522IPW
|
TME | IC: operational amplifier, 145MHz, Ch: 2, TSSOP16, tube Min Qty: 1 | 0 |
|
$4.2800 / $4.9700 | RFQ |
|
|
Ameya Holding Limited | 16DUAL FULLY DIFF RAIL-RAIL IN/OUTPUT AMP | 152074 |
|
RFQ | |
|
DISTI #
THS4522IPW
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 90 |
|
$2.7400 / $6.4800 | Buy Now |
|
|
Chip Stock | Verylowpowerdualchannelrail-to-railoutputfullydifferentialamplifier16-TSSOP-40to85 | 19300 |
|
RFQ | |
|
|
Win Source Electronics | VERY LOW POWER, NEGATIVE RAIL INPUT, RAIL-TO-RAIL OUTPUT, FULLY DIFFERENTIAL AMPLIFIER | IC OPAMP DIFF 2 CIRCUIT 16TSSOP | 15800 |
|
$2.8124 / $3.6325 | Buy Now |
US Tariff Estimator: THS4522IPW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for THS4522IPW
THS4522IPW CAD Models
-

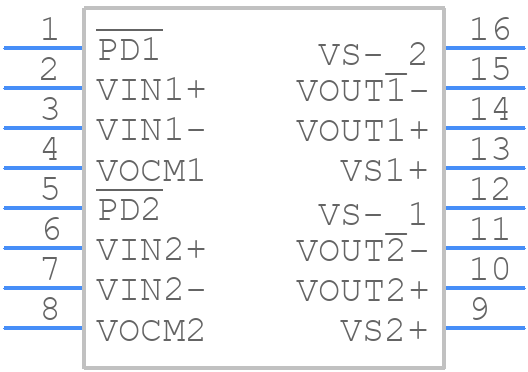

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
THS4522IPW Part Data Attributes
|
|
THS4522IPW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
THS4522IPW
Texas Instruments
Very low power dual channel rail-to-rail output fully differential amplifier 16-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.95 µA | |
| Bandwidth (3dB)-Nom | 9.3 Mhz | |
| Bias Current-Max (IIB) @25C | 0.9 µA | |
| Common-mode Reject Ratio-Min | 80 Db | |
| Common-mode Reject Ratio-Nom | 102 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.18 µA | |
| Input Offset Voltage-Max | 2000 µV | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | Yes | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Slew Rate-Nom | 490 V/Us | |
| Supply Current-Max | 2.5 Ma | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 95000 | |
| Voltage Gain-Min | 100000 | |
| Wideband | Yes | |
| Width | 4.4 Mm |
Alternate Parts for THS4522IPW
This table gives cross-reference parts and alternative options found for THS4522IPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of THS4522IPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| THS4522IPWR | Texas Instruments | $4.0350 | Very low power dual channel rail-to-rail output fully differential amplifier 16-TSSOP -40 to 85 | THS4522IPW vs THS4522IPWR |
THS4522IPW Frequently Asked Questions (FAQ)
-
A good PCB layout for the THS4522IPW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. A higher gain resistor value will result in higher gain but may compromise bandwidth. TI provides a gain resistor calculator tool to help with the selection.
-
The maximum power dissipation of the THS4522IPW is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and thermal management. It's essential to ensure proper thermal design to prevent overheating.
-
Yes, the THS4522IPW can be used in a single-supply configuration. However, this will affect the output voltage swing and may require additional circuitry to level-shift the output. Consult the datasheet and application notes for more information.
-
To filter out noise and interference, use a combination of bypass capacitors, ferrite beads, and shielding. Place bypass capacitors close to the device, and use ferrite beads to filter out high-frequency noise. Shielding can help reduce electromagnetic interference.
