THS4524IDBTR Information
THS4524IDBTR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for THS4524IDBTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 30 |
|
RFQ | ||
|
|
Rochester Electronics | Operational Amplifier, 4 Func, 2000uV Offset-Max, 9.3MHz Band Width, BIPolar, PDSO38 RoHS: Compliant Status: Active Min Qty: 1 | 12 |
|
$4.0400 / $5.0500 | Buy Now |
|
DISTI #
THS4524IDBTR
|
TME | IC: operational amplifier, 145MHz, Ch: 4, TSSOP38, reel,tape Min Qty: 1 | 0 |
|
$5.8100 / $9.0500 | RFQ |
|
|
ComSIT USA | NEGATIVE RAIL INPUT, RAIL-TO-RAIL OUTPUT, FULLY DIFFERENTIAL AMPLIFIER Operational Amplifier, 4 Func, 2000uV Offset-Max, 9.3MHz Band Width, BIPolar, PDSO38 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip Stock | Verylowpowerquadchannelrail-to-railoutputfullydifferentialamplifier38-TSSOP-40to85 | 6940 |
|
RFQ | |
|
|
LCSC | 2mV 950nA 490V/us 100dB 95MHz 4 Rail-to-Rail Input Rail-to-Rail Output TSSOP-38-4.4mm Amplifiers RoHS | 26 |
|
$4.4017 / $6.5184 | Buy Now |
|
|
Win Source Electronics | IC OPAMP DIFF 95MHZ RRO 38TSSOP | 5440 |
|
$4.2451 / $6.3676 | Buy Now |
US Tariff Estimator: THS4524IDBTR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for THS4524IDBTR
THS4524IDBTR CAD Models
-

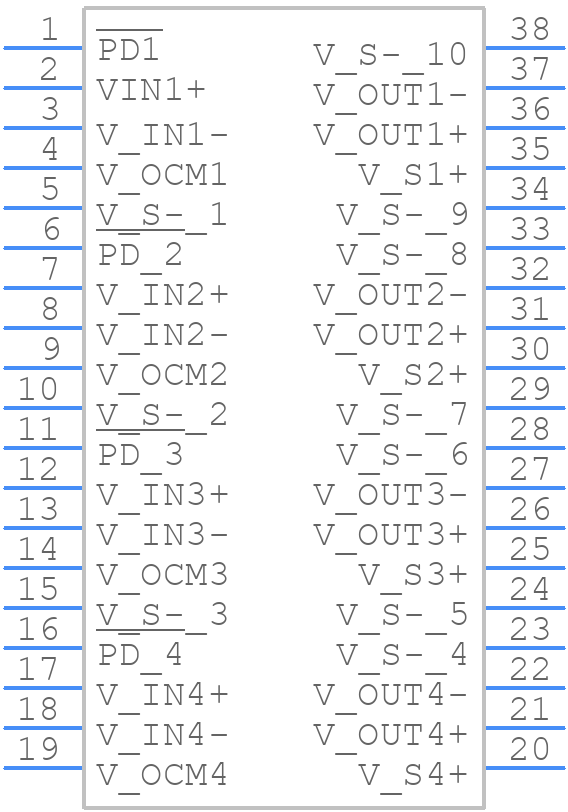

Part Symbol
-
