Part Details for TJA1043T,118 by NXP Semiconductors
Results Overview of TJA1043T,118 by NXP Semiconductors
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
TJA1043T,118 Information
TJA1043T,118 by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TJA1043T,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC7099
|
Newark | Can Transceiver, 5Mbps, -40 To 150Deg C, Ic Interface Type:Can, No. Of Tx Buffers:-, No. Of Rx Buffers:-, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Interface Case Style:Soic, No. Of Pins:14Pins, Product Range:-, Msl:- Rohs Compliant: Yes |Nxp TJA1043T,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 290 |
|
$1.3700 / $2.0500 | Buy Now |
|
DISTI #
81R3317
|
Newark | High-Speed Can Transceiver With Standby And Sleep Mode/ Reel Rohs Compliant: Yes |Nxp TJA1043T,118 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9700 / $1.3100 | Buy Now |
|
DISTI #
31AC7099
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 31AC7099) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 340 Partner Stock |
|
$1.3700 / $2.0500 | Buy Now |
|
DISTI #
TJA1043T,118
|
Avnet Americas | - Tape and Reel (Alt: TJA1043T,118) COO: Thailand RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.8746 / $0.9318 | Buy Now |
|
DISTI #
TJA1043T,118
|
Avnet Americas | - Tape and Reel (Alt: TJA1043T,118) COO: Thailand RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
TJA1043T,118
|
Avnet Americas | - Tape and Reel (Alt: TJA1043T,118) COO: Thailand RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
|
Bristol Electronics | Min Qty: 3 | 598 |
|
$0.8400 / $2.4000 | Buy Now |
|
|
Rochester Electronics | CAN Transceiver, 1-Trnsvr, PDSO14 RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 4309 |
|
$0.8184 / $1.3200 | Buy Now |
|
DISTI #
TJA1043T.118
|
TME | IC: interface, transceiver, 5Mbps, 4.5÷5.5VDC, SO14, No.of rec: 1 Min Qty: 1 | 1594 |
|
$0.9500 / $1.7400 | Buy Now |
|
DISTI #
SMC-TJA1043T,118
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC | 11782 |
|
RFQ |
US Tariff Estimator: TJA1043T,118 by NXP Semiconductors
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TJA1043T,118
TJA1043T,118 CAD Models
-

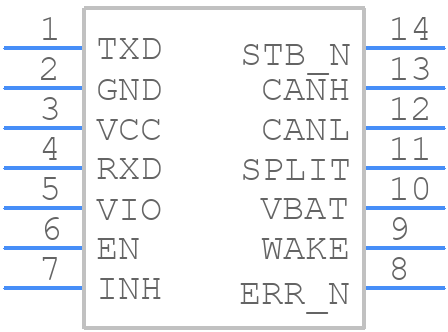

Part Symbol
-
Footprint
-

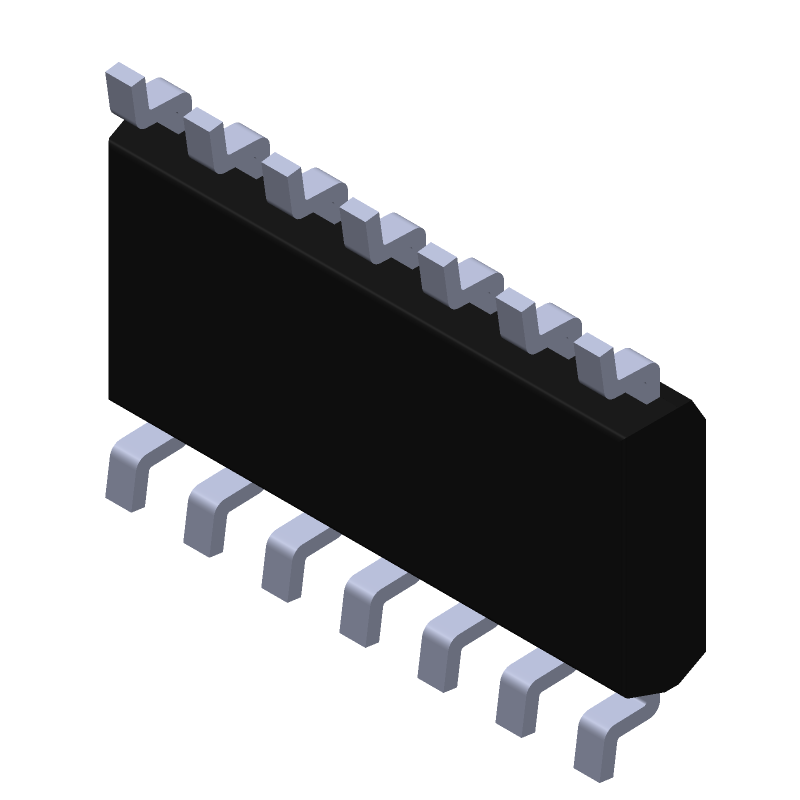

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TJA1043T,118 Part Data Attributes
|
|
TJA1043T,118
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1043T,118
NXP Semiconductors
TJA1043 - High-speed CAN transceiver SOIC 14-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP14,.25 | |
| Pin Count | 14 | |
| Manufacturer Package Code | SOT108-1 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | NXP | |
| Data Rate | 1000 Mbps | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Number of Transceivers | 1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 0.065 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | CAN TRANSCEIVER | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
TJA1043T,118 Frequently Asked Questions (FAQ)
-
A good PCB layout for the TJA1043T,118 involves keeping the transmitter and receiver lines as short as possible, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a common mode filter and to decouple the power supply lines.
-
To ensure EMC with the TJA1043T,118, follow proper PCB design guidelines, use shielding, and implement filtering and shielding on the CAN bus lines. Additionally, ensure that the device is properly grounded and that the power supply is decoupled.
-
The TJA1043T,118 has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Also, follow proper PCB thermal design guidelines.
-
To troubleshoot issues with the TJA1043T,118, start by checking the power supply, then verify the CAN bus signals using an oscilloscope. Check for proper termination, and ensure that the device is properly configured and initialized. Consult the datasheet and application notes for more information.
-
When using the TJA1043T,118 in a redundant CAN bus system, ensure that the devices are properly synchronized, and that the system is designed to handle bus faults and failures. Implement a proper redundancy scheme, and consider using a bus guardian or other fault-tolerant mechanisms.
