TL084HIPWR Information
TL084HIPWR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TL084HIPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TL084HIPWR-TEX-0
|
TME | IC: operational amplifier Min Qty: 2000 | 2000 |
|
$0.1213 | Buy Now |
|
|
Ameya Holding Limited | 10 |
|
RFQ | ||
|
|
Chip Stock | ICOpampJfet4Circuit14TSSOPJ-fetAmplifier4Circuit14-TSSOP | 36500 |
|
RFQ | |
|
|
LCSC | 1mV 120pA 20V/us 105dB 5.25MHz 4 TSSOP-14 Amplifiers RoHS | 100 |
|
$0.1414 / $0.1497 | Buy Now |
|
|
Win Source Electronics | IC OPAMP JFET 4 CIRCUIT 14TSSOP / J-FET Amplifier 4 Circuit 14-TSSOP | 30060 |
|
$0.1372 / $0.1771 | Buy Now |
US Tariff Estimator: TL084HIPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TL084HIPWR
TL084HIPWR CAD Models
-

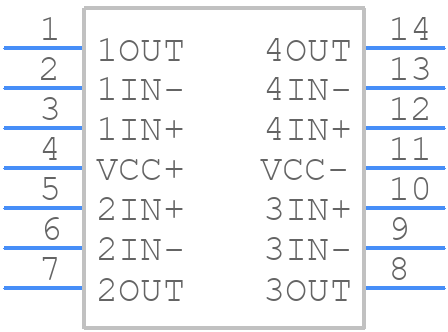

Part Symbol
-
