TLC274IDR Information
TLC274IDR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLC274IDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 51 |
|
RFQ | ||
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
DISTI #
TLC274IDR
|
TME | IC: operational amplifier, 2MHz, Ch: 4, SO14, ±2÷8VDC,4÷16VDC Min Qty: 1 | 264 |
|
$1.3700 / $2.1400 | Buy Now |
|
|
Ameya Holding Limited | IC OPAMP GP 2.2MHZ 14SOIC | 41702 |
|
RFQ | |
|
|
ComSIT USA | AVAILABLE EU | 608 |
|
RFQ | |
|
|
ComSIT USA | LINCMOS PRECISION QUAD OPERATIONAL AMPLIFIER Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
DISTI #
TLC274IDR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1260 |
|
$0.7300 / $1.8700 | Buy Now |
|
|
Win Source Electronics | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC T/R / IC OPAMP GP 2.2MHZ 14SOIC | 14791 |
|
$1.1131 / $1.4377 | Buy Now |
US Tariff Estimator: TLC274IDR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLC274IDR
TLC274IDR CAD Models
-

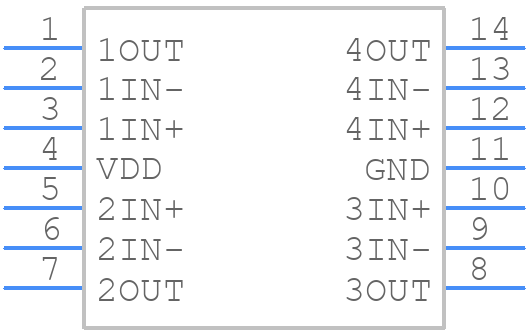

Part Symbol
-
