TLC59116FIRHBR Information
TLC59116FIRHBR by Texas Instruments is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLC59116FIRHBR | Texas Instruments | 16-Bit Fast-Mode Plus (FM+) I2C-Bus LED Driver 32-VQFN -40 to 85 |
Price & Stock for TLC59116FIRHBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | LED Driver, 16-Segment, PQCC32 RoHS: Compliant Status: Active Min Qty: 1 | 9 |
|
$0.9734 / $1.5700 | Buy Now |
|
|
Ameya Holding Limited | IC LED DRIVER W/I2C BUS 32QFN | 35 |
|
RFQ | |
|
|
Chip Stock | ICLEDDRVRLINI2C120MA32VQFNLEDDriverIC16OutputLinearI2CDimming120mA32-VQFN(5x5) | 194318 |
|
RFQ | |
|
|
LCSC | 97kHz 16 120mA 3V5.5V VQFN-32-EP(5x5) LED Drivers ICs RoHS | 290 |
|
$0.6898 / $1.3259 | Buy Now |
|
|
Win Source Electronics | IC LED DRVR LIN DIM 120MA 32VQFN | 181818 |
|
$0.6760 / $0.8731 | Buy Now |
US Tariff Estimator: TLC59116FIRHBR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLC59116FIRHBR
TLC59116FIRHBR CAD Models
-

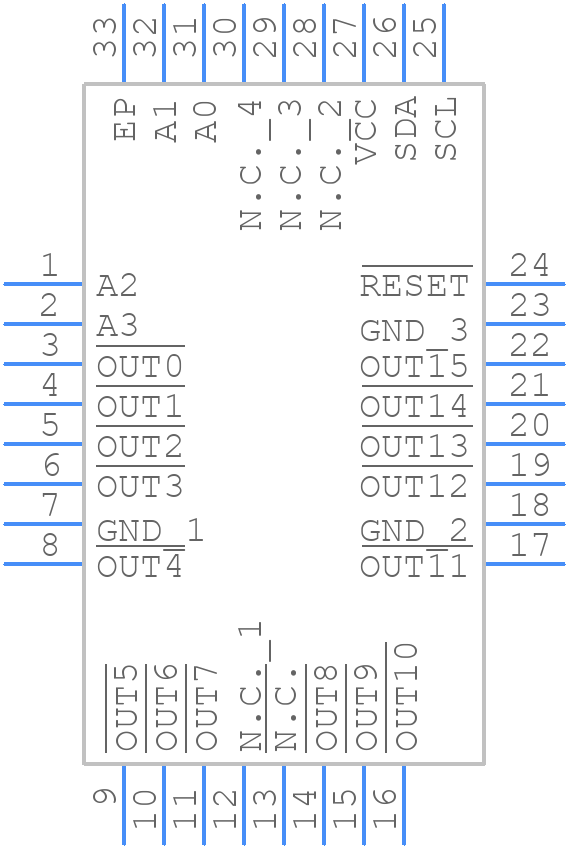

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLC59116FIRHBR Part Data Attributes
|
|
TLC59116FIRHBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC59116FIRHBR
Texas Instruments
16-bit Fast-Mode Plus (FM+) I2C-Bus LED driver 32-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Hvqccn, Lcc32,.2sq,20 | |
| Pin Count | 32 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Data Input Mode | Serial | |
| Input Characteristics | Standard | |
| Interface IC Type | Led Display Driver | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 2 | |
| Multiplexed Display Capability | No | |
| Number of Channels | 16 | |
| Number of Functions | 1 | |
| Number of Segments | 16 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Constant-Current | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max | 13 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 4.5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 Mm | |
| fmax-Min | 1 Mhz |
Alternate Parts for TLC59116FIRHBR
This table gives cross-reference parts and alternative options found for TLC59116FIRHBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC59116FIRHBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLC5941RHBT | Texas Instruments | $1.4011 | 16 channel LED driver with dot correction and grayscale PWM control 32-VQFN -40 to 85 | TLC59116FIRHBR vs TLC5941RHBT |
| TLC5941PWPG4 | Texas Instruments | $1.6727 | 16 channel LED driver with dot correction and grayscale PWM control 28-HTSSOP -40 to 85 | TLC59116FIRHBR vs TLC5941PWPG4 |
| TLC5941PWP | Texas Instruments | $2.1642 | 16 channel LED driver with dot correction and grayscale PWM control 28-HTSSOP -40 to 85 | TLC59116FIRHBR vs TLC5941PWP |
| TLC59116ITPWTQ1 | Texas Instruments | $2.2802 | Automotive 16-channel FM+ I2C-Bus constant-current LED sink driver 28-TSSOP -40 to 105 | TLC59116FIRHBR vs TLC59116ITPWTQ1 |
| TLC59116IRHBR | Texas Instruments | $2.3215 | 16-bit Fast-Mode Plus (FM+) I2C-Bus constant-current LED sink driver 32-VQFN -40 to 85 | TLC59116FIRHBR vs TLC59116IRHBR |
| TLC5941RHBRG4 | Texas Instruments | Check for Price | 16 Channel LED Driver with Dot Correction and Grayscale PWM Control 32-VQFN | TLC59116FIRHBR vs TLC5941RHBRG4 |
| TLC5941QPWPRQ1 | Texas Instruments | Check for Price | Automotive catalog 16 channel LED driver with dot correction and grayscale PWM control 28-HTSSOP -40 to 125 | TLC59116FIRHBR vs TLC5941QPWPRQ1 |
| TLC5941RHBTG4 | Texas Instruments | Check for Price | 16 channel LED driver with dot correction and grayscale PWM control 32-VQFN -40 to 85 | TLC59116FIRHBR vs TLC5941RHBTG4 |
| TLC5941PWPR | Texas Instruments | Check for Price | 16 channel LED driver with dot correction and grayscale PWM control 28-HTSSOP | TLC59116FIRHBR vs TLC5941PWPR |
| CAT4016VSR-T2 | onsemi | Check for Price | LED Driver, 16-Channel, Constant Current, QSOP 24, 150 mils, 2000-REEL | TLC59116FIRHBR vs CAT4016VSR-T2 |
TLC59116FIRHBR Frequently Asked Questions (FAQ)
-
The TLC59116FIRHBR has a maximum current rating of 30mA per output channel, but it's recommended to limit the current to 20mA per channel for reliable operation.
-
To ensure consistent LED current across all channels, make sure to use identical LEDs and resistors for each channel, and also ensure that the voltage supply is stable and well-regulated.
-
The recommended clock frequency for the TLC59116FIRHBR is between 100 kHz to 400 kHz. However, the device can operate up to 1 MHz clock frequency, but with reduced performance.
-
To handle thermal issues, ensure good thermal design and layout, use a heat sink if necessary, and keep the device within the recommended operating temperature range of -40°C to 85°C.
-
Yes, the TLC59116FIRHBR can operate with a 5V power supply, but the output voltage will be limited to 3.3V. If you need a 5V output, you'll need to use an external voltage regulator or a level shifter.
