TLF80511EJV33XUMA1 Information
TLF80511EJV33XUMA1 by Infineon Technologies AG is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TLF80511EJV33XUMA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43AC4083
|
Newark | Ldo, Aec-Q100, Fixed, 3.3V, 0.4A, Soic-8, Output Type:Fixed, Input Voltage Min:3.3V, Input Voltage Max:40V, Fixed Output Voltage Nom.:3.3V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:400Ma, Rohs Compliant: Yes |Infineon TLF80511EJV33XUMA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 698 |
|
$0.6790 / $1.2300 | Buy Now |
|
DISTI #
TLF80511EJV33XUMA1
|
Avnet Americas | LDO Linear Voltage Regulator Pos 3.3V 0.4A 8-Pin DSO EP T/R - Tape and Reel (Alt: TLF80511EJV33XUMA1) COO: Malaysia RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 20000 |
|
$0.6222 / $0.7178 | Buy Now |
|
|
Rochester Electronics | TLF80511 - Fixed Positive LDO Regulator RoHS: Compliant Status: Active Min Qty: 1 | 220296 |
|
$0.4906 / $0.7913 | Buy Now |
|
DISTI #
TLF80511EJV33XUMA1
|
IBS Electronics | LDO LINEAR VOLTAGE REGULATOR POS 3.3V 0.4A 8-PIN DSO EP T/R - TAPE AND REEL Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.8190 / $0.8330 | Buy Now |
|
DISTI #
TLF80511EJV33XUMA1
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 793 |
|
$0.4900 / $0.8190 | Buy Now |
|
DISTI #
SP001207626
|
EBV Elektronik | LDO Linear Voltage Regulator Pos 33V 04A 8Pin DSO EP TR (Alt: SP001207626) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 55dB(100Hz) Positive Fixed 3.3V DSO-8 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 78 |
|
$0.8807 / $1.5246 | Buy Now |
US Tariff Estimator: TLF80511EJV33XUMA1 by Infineon Technologies AG
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLF80511EJV33XUMA1
TLF80511EJV33XUMA1 CAD Models
-

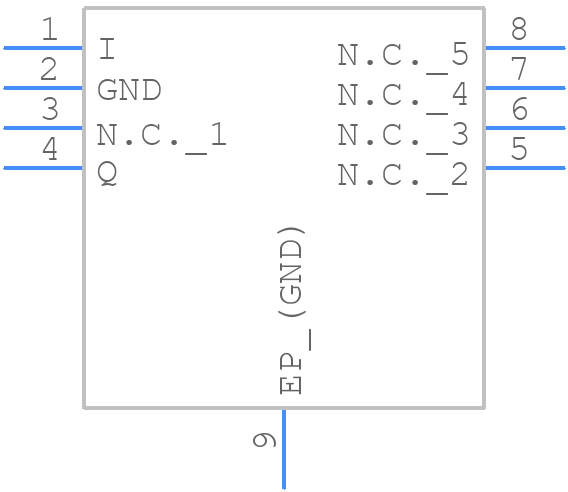

Part Symbol
-

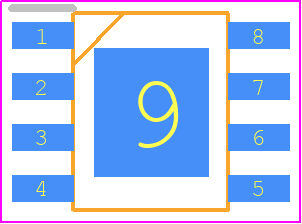

Footprint
-
