Part Details for TLP187(TPR,E by Toshiba America Electronic Components
Results Overview of TLP187(TPR,E by Toshiba America Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Industrial Automation
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
TLP187(TPR,E Information
TLP187(TPR,E by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLP187 | Toshiba Electronic Devices & Storage Corporation | Photocoupler (photodarlington transistor output), DC input, 3750 Vrms, 4pin SO6 |
Price & Stock for TLP187(TPR,E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLP187(TPR,E
|
Avnet Americas | - Tape and Reel (Alt: TLP187(TPR,E) COO: Japan RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.3616 / $0.3690 | Buy Now |
US Tariff Estimator: TLP187(TPR,E by Toshiba America Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLP187(TPR,E
TLP187(TPR,E CAD Models
-

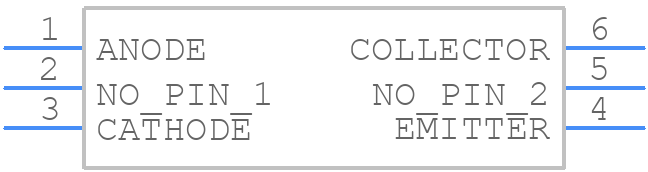

Part Symbol
-

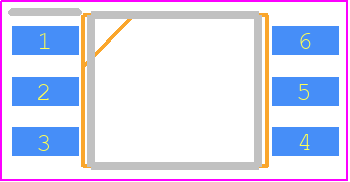

Footprint
-

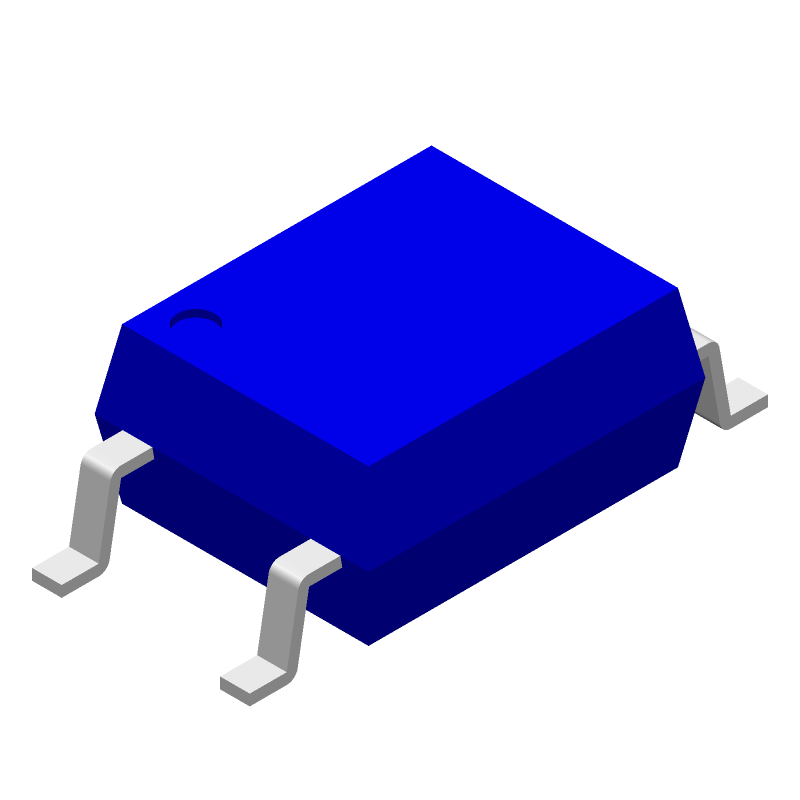

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLP187(TPR,E Part Data Attributes
|
|
TLP187(TPR,E
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP187(TPR,E
Toshiba America Electronic Components
Darlington Transistor Output Devices
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop-4 | |
| Reach Compliance Code | Unknown | |
| HTS Code | 8541.49.80.00 | |
| Factory Lead Time | 14 Weeks | |
| Additional Feature | Ul Approved | |
| Coll-Emtr Bkdn Voltage-Min | 300 V | |
| Configuration | Single With Built-In Diode And Resistor | |
| Current Transfer Ratio-Min | 1000% | |
| Current Transfer Ratio-Nom | 4000% | |
| Dark Current-Max | 200 Na | |
| Forward Current-Max | 0.05 A | |
| Forward Voltage-Max | 1.4 V | |
| Isolation Voltage-Max | 3750 V | |
| Mounting Feature | Surface Mount | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.15 A | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | Darlington Output Optocoupler | |
| Power Dissipation-Max | 0.15 W | |
| Surface Mount | Yes |
Alternate Parts for TLP187(TPR,E
This table gives cross-reference parts and alternative options found for TLP187(TPR,E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLP187(TPR,E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLP187(TPL,E(T | Toshiba America Electronic Components | $0.2448 | 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER | TLP187(TPR,E vs TLP187(TPL,E(T |
| TLP187 | Toshiba America Electronic Components | Check for Price | Optocoupler - Transistor Output, DARLINGTON OUTPUT OPTOCOUPLER | TLP187(TPR,E vs TLP187 |
| TLP187(TPRE | Toshiba America Electronic Components | Check for Price | Darlington Output Optocoupler | TLP187(TPR,E vs TLP187(TPRE |
| TLP187(TPL,E | Toshiba America Electronic Components | Check for Price | Darlington Output Optocoupler, 1-Element, 3750V Isolation | TLP187(TPR,E vs TLP187(TPL,E |
| TLP187(TLP,E | Toshiba America Electronic Components | Check for Price | Darlington Output Optocoupler | TLP187(TPR,E vs TLP187(TLP,E |
| TLP187(V4) | Toshiba America Electronic Components | Check for Price | Optocoupler - Transistor Output, DARLINGTON OUTPUT OPTOCOUPLER | TLP187(TPR,E vs TLP187(V4) |
| TLP187(TPR,E(T | Toshiba America Electronic Components | Check for Price | Darlington Output Optocoupler | TLP187(TPR,E vs TLP187(TPR,E(T |
| TLP187(V4-TPL,E(T | Toshiba America Electronic Components | Check for Price | Darlington Output Optocoupler, 1-Element, 3750V Isolation | TLP187(TPR,E vs TLP187(V4-TPL,E(T |
TLP187(TPR,E Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TLP187 is -20°C to 85°C.
-
Handle the TLP187 by the edges to prevent damage to the photodiode. Avoid touching the optical surface or the leads. Use an anti-static wrist strap or mat to prevent electrostatic discharge.
-
The maximum allowable reverse voltage for the TLP187 is 20V.
-
Store the TLP187 in a dry, dark place at room temperature (20°C to 30°C) and humidity below 60%. Avoid exposure to direct sunlight, moisture, or contaminants.
-
While the TLP187 is designed to operate in a normal humidity environment, it's not recommended for use in high-humidity environments (above 80% RH) without proper protection, such as conformal coating or hermetic sealing.
