TLP785F(D4GLT7,F Information
TLP785F(D4GLT7,F by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLP785F | Toshiba Electronic Devices & Storage Corporation | Photocoupler (phototransistor output), DC input, 5000 Vrms, DIP4(TLP785F) |
Price & Stock for TLP785F(D4GLT7,F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLP785F(D4GLT7,F
|
Avnet Americas | - Tape and Reel (Alt: TLP785F(D4GLT7,F) COO: China RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.2957 / $0.3018 | Buy Now |
US Tariff Estimator: TLP785F(D4GLT7,F by Toshiba America Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLP785F(D4GLT7,F
TLP785F(D4GLT7,F CAD Models
-

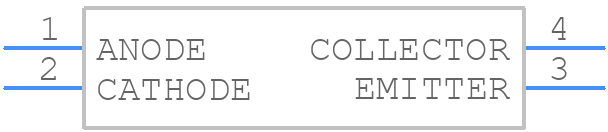

Part Symbol
-

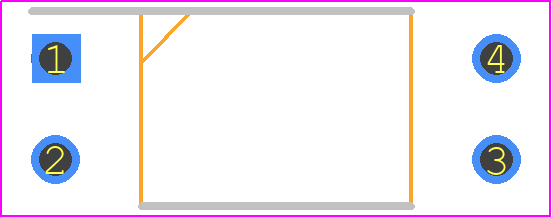

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLP785F(D4GLT7,F Part Data Attributes
|
|
TLP785F(D4GLT7,F
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP785F(D4GLT7,F
Toshiba America Electronic Components
Transistor Output Devices
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant, Plastic, 11-5l102, Dip-4 | |
| Reach Compliance Code | Unknown | |
| HTS Code | 8541.49.80.00 | |
| Factory Lead Time | 16 Weeks | |
| Additional Feature | Ul Approved, Vde Approved | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | Single | |
| Current Transfer Ratio-Nom | 100% | |
| Dark Current-Max | 100 Na | |
| Forward Current-Max | 0.025 A | |
| Isolation Voltage-Max | 5000 V | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | Transistor Output Optocoupler | |
| Terminal Finish | Tin (Sn) |
Alternate Parts for TLP785F(D4GLT7,F
This table gives cross-reference parts and alternative options found for TLP785F(D4GLT7,F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLP785F(D4GLT7,F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLP785(D4,F | Toshiba America Electronic Components | Check for Price | Optocoupler - Transistor Output, TRANSISTOR OUTPUT OPTOCOUPLER | TLP785F(D4GLT7,F vs TLP785(D4,F |
TLP785F(D4GLT7,F Frequently Asked Questions (FAQ)
-
A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
-
Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider using a heat sink or thermal interface material to reduce thermal resistance.
-
The TLP785F(D4GLT7) has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and testing to prevent damage.
-
Yes, the TLP785F(D4GLT7) is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, additional testing and validation may be required for specific use cases.
-
Consult the datasheet and application notes for troubleshooting guidelines. Also, consider using a logic analyzer or oscilloscope to monitor signal activity and identify potential issues.
