TLV70012DDCR Information
TLV70012DDCR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TLV70012DDCR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC REG LDO 1.2V 0.2A 5SOT | 33391 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 2953 |
|
RFQ | |
|
|
Chip Stock | 200-mA,high-PSRR,low-IQ,low-dropoutvoltageregulatorwithenable5-SOT-23-THIN-40to125 | 42400 |
|
RFQ | |
|
|
LCSC | 68dB(1kHz) Positive Fixed 1.2V SOT-23-5 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 430 |
|
$0.0634 / $0.1260 | Buy Now |
|
|
New Advantage Corporation | IC-70012 VOLTAJ REG LINEAR 1.2V 200MA SOT23-5 RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 1767 |
|
$0.2000 | Buy Now |
|
|
Win Source Electronics | LDO Regulator Pos 1.2V 0.2A 5-Pin TSOT-23 T/R / IC REG LDO 1.2V 0.2A 5SOT | 38900 |
|
$0.1189 / $0.1534 | Buy Now |
US Tariff Estimator: TLV70012DDCR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLV70012DDCR
TLV70012DDCR CAD Models
-

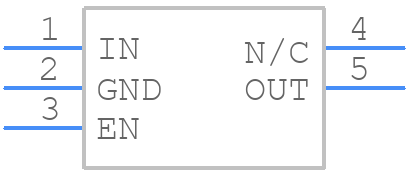

Part Symbol
-
Footprint
-

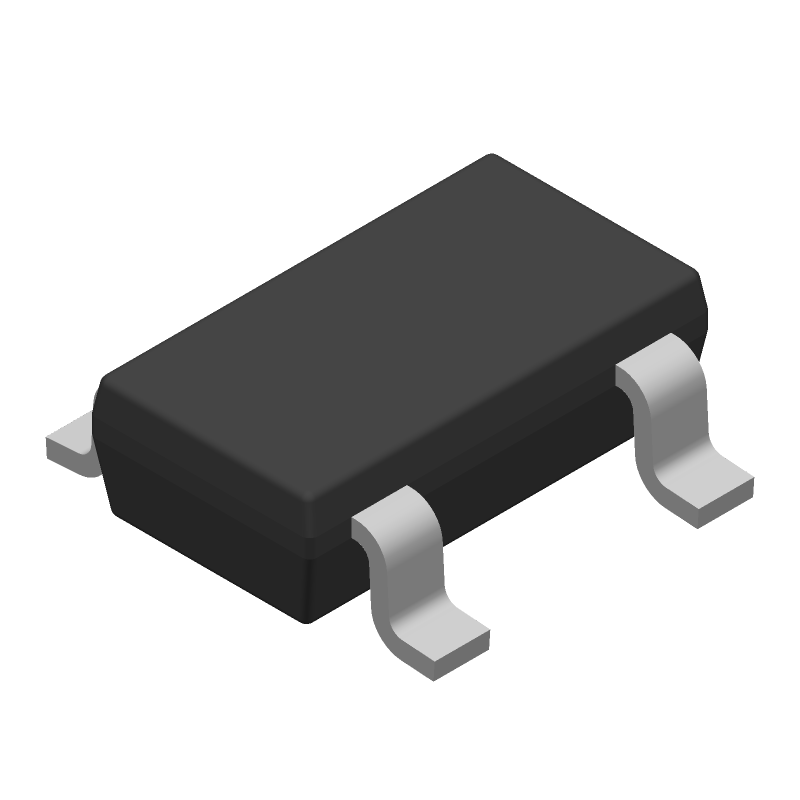

3D Model
