Part Details for TLVH431AQDBVRQ1 by Texas Instruments
Results Overview of TLVH431AQDBVRQ1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
TLVH431AQDBVRQ1 Information
TLVH431AQDBVRQ1 by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLVH431AQDBVRQ1 | Texas Instruments | Automotive catalog low-voltage adjustable precision shunt regulator 5-SOT-23 -40 to 125 |
Price & Stock for TLVH431AQDBVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 7 | 995 |
|
$0.2100 / $0.7500 | Buy Now |
|
|
Ameya Holding Limited | IC VREF SHUNT ADJ SOT23-5 | 3814 |
|
RFQ | |
|
|
Chip Stock | V-RefAdjustable1.24Vto18V80mAAutomotive5-PinSOT-23T/R | 14326 |
|
RFQ | |
|
|
LCSC | 1.24V18V 1% 70mA Adjustable SOT-23-5 Voltage Reference RoHS | 85 |
|
$0.4496 / $0.8884 | Buy Now |
|
|
Win Source Electronics | IC VREF SHUNT ADJ SOT23-5 | 10826 |
|
$0.2943 / $0.4414 | Buy Now |
US Tariff Estimator: TLVH431AQDBVRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLVH431AQDBVRQ1
TLVH431AQDBVRQ1 CAD Models
-

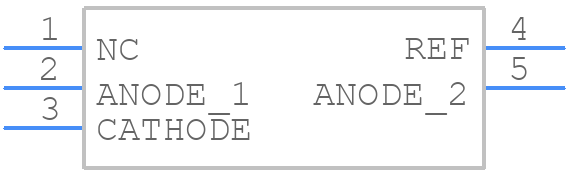

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLVH431AQDBVRQ1 Part Data Attributes
|
|
TLVH431AQDBVRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLVH431AQDBVRQ1
Texas Instruments
Automotive, low-voltage adjustable precision shunt regulator 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | LSSOP, TSOP5/6,.11,37 | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.08 A | |
| Output Voltage-Max | 18 V | |
| Output Voltage-Min | 1.228 V | |
| Output Voltage-Nom | 1.24 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 161 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 1% | |
| Width | 1.6 mm |
Alternate Parts for TLVH431AQDBVRQ1
This table gives cross-reference parts and alternative options found for TLVH431AQDBVRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLVH431AQDBVRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLVH431BQDBVRQ1 | Texas Instruments | Check for Price | Automotive, low-voltage adjustable precision shunt regulator (reverse pinout) 5-SOT-23 -40 to 125 | TLVH431AQDBVRQ1 vs TLVH431BQDBVRQ1 |
TLVH431AQDBVRQ1 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for TLVH431AQDBVRQ1 is 2.5V to 5.5V.
-
To ensure stability, it is recommended to decouple the input pin with a 10nF to 100nF capacitor and use a low-ESR capacitor (e.g., ceramic or film capacitor) for the output capacitor.
-
The typical output impedance of TLVH431AQDBVRQ1 is around 0.5 ohms.
-
No, TLVH431AQDBVRQ1 is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, not to regulate voltage.
-
The accuracy of TLVH431AQDBVRQ1 can be affected by temperature. The device has a temperature coefficient of ±2 ppm/°C, which means that the output voltage can vary by ±2 ppm for every 1°C change in temperature.
