Part Details for TM4C123GH6PGEI7 by Texas Instruments
Results Overview of TM4C123GH6PGEI7 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TM4C123GH6PGEI7 Information
TM4C123GH6PGEI7 by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TM4C123GH6PGEI7 | Texas Instruments | High performance 32-bit ARM® Cortex®-M4F based MCU 144-LQFP -40 to 85 | |
| TM4C123GH6PGEI7R | Texas Instruments | High performance 32-bit ARM® Cortex®-M4F based MCU 144-LQFP -40 to 85 |
Price & Stock for TM4C123GH6PGEI7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC MCU 32BIT 256KB FLASH 144LQFP | 3949 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 144LQFP / ARM® Cortex®-M4F Tiva™ C Microcontroller IC 32-Bit Single-Core 80MHz 256KB (256K x 8) FLASH 144-LQFP (20x20) | 3800 |
|
$10.7479 / $16.1217 | Buy Now |
US Tariff Estimator: TM4C123GH6PGEI7 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TM4C123GH6PGEI7
TM4C123GH6PGEI7 CAD Models
-

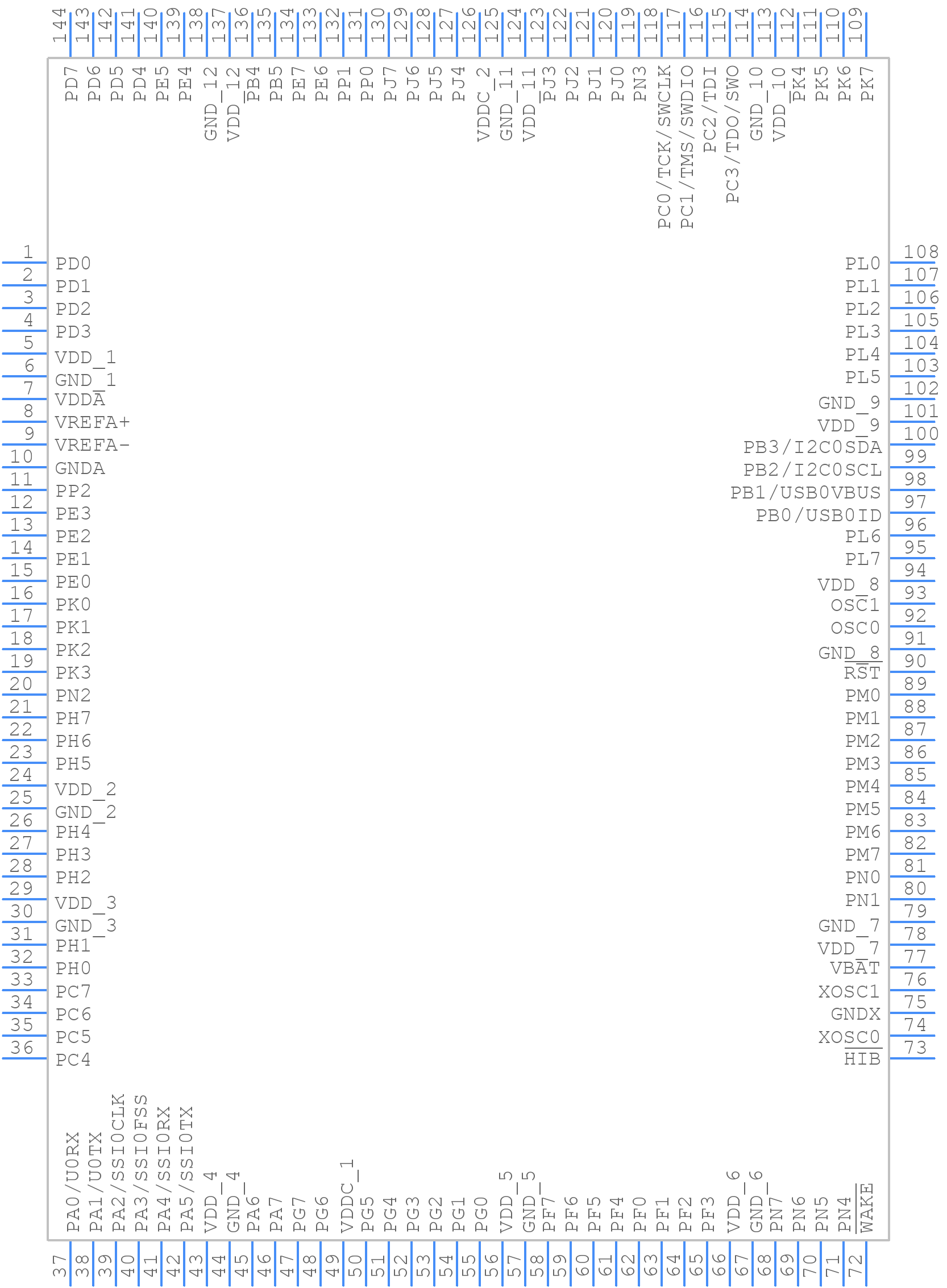

Part Symbol
-

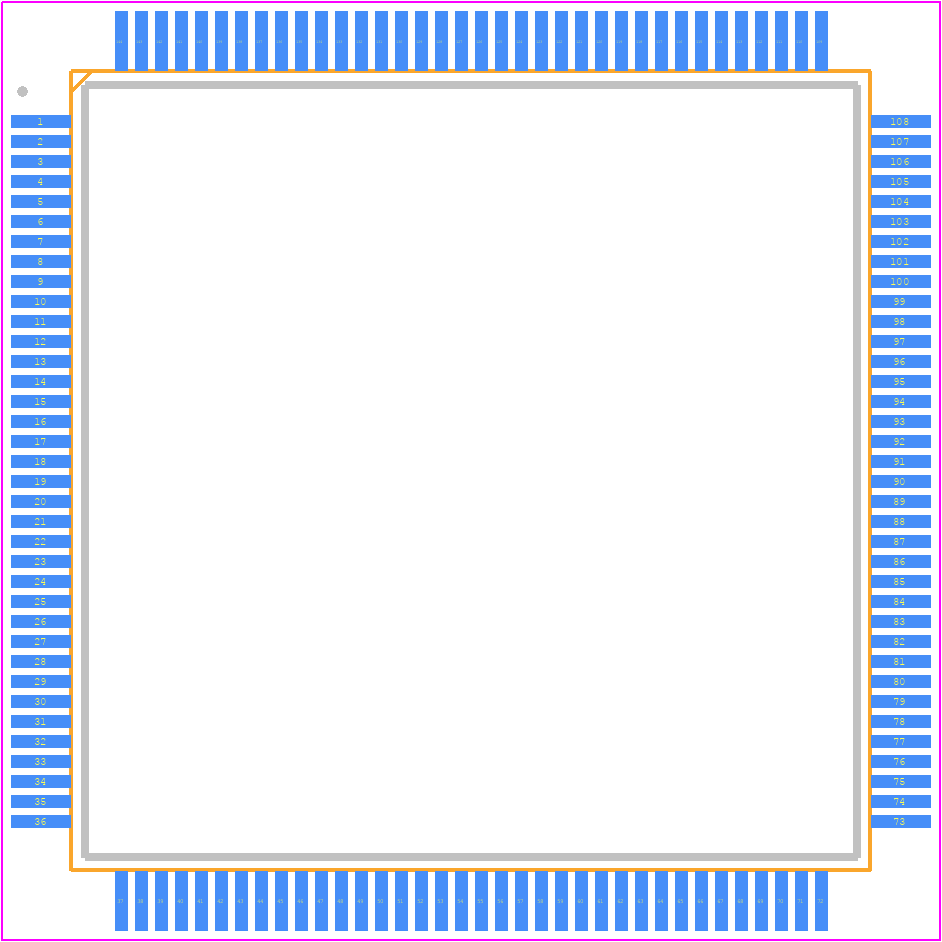

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TM4C123GH6PGEI7 Part Data Attributes
|
|
TM4C123GH6PGEI7
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TM4C123GH6PGEI7
Texas Instruments
32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 144-pin LQFP 144-LQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | LFQFP, | |
| Pin Count | 144 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.50 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M4F | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e4 | |
| Length | 20 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 32 | |
| Number of External Interrupts | ||
| Number of I/O Lines | 105 | |
| Number of Serial I/Os | 21 | |
| Number of Terminals | 144 | |
| Number of Timers | 12 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 32768 | |
| RAM (words) | 32 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 80 MHz | |
| Supply Current-Max | 54.9 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TM4C123GH6PGEI7
This table gives cross-reference parts and alternative options found for TM4C123GH6PGEI7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TM4C123GH6PGEI7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TM4C1237H6PGEI7 | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, CAN, RTC, USB, 144-pin LQFP 144-LQFP -40 to 85 | TM4C123GH6PGEI7 vs TM4C1237H6PGEI7 |
| TM4C123GH6PGET7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 144-pin LQFP 144-LQFP -40 to 105 | TM4C123GH6PGEI7 vs TM4C123GH6PGET7R |
| TM4C1237H6PGEI7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, CAN, RTC, USB, 144-pin LQFP 144-LQFP -40 to 85 | TM4C123GH6PGEI7 vs TM4C1237H6PGEI7R |
| TM4C123GH6PGET7 | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 144-pin LQFP 144-LQFP -40 to 105 | TM4C123GH6PGEI7 vs TM4C123GH6PGET7 |
| TM4C123GH6PGEI7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 144-pin LQFP 144-LQFP -40 to 85 | TM4C123GH6PGEI7 vs TM4C123GH6PGEI7R |
TM4C123GH6PGEI7 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TM4C123GH6PGEI7 is 80 MHz.
-
The pin muxing on the TM4C123GH6PGEI7 can be configured using the Pin Mux Utility tool provided by Texas Instruments or by manually setting the registers according to the datasheet.
-
The maximum amount of current that can be sourced or sunk by the GPIO pins on the TM4C123GH6PGEI7 is 4 mA.
-
The ADC on the TM4C123GH6PGEI7 can be used by configuring the ADC module, selecting the input channel, and starting the conversion. The ADC result can be read from the ADC FIFO.
-
The NMI (Non-Maskable Interrupt) pin on the TM4C123GH6PGEI7 is used to trigger a non-maskable interrupt, which can be used to respond to critical events such as a watchdog timer timeout.
