TMS320C6655CZH by: Texas Instruments

High performance single-core C66x fixed and floating-point DSP- up to 1.25GHz 625-FCBGA 0 to 85

Part Details for TMS320C6655CZH by Texas Instruments

Results Overview of TMS320C6655CZH by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TMS320C6655CZH Information

TMS320C6655CZH by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for TMS320C6655CZH

Part # Distributor Description Stock Price Buy
Bristol Electronics   116
RFQ
Rochester Electronics Digital Signal Processor, 32-Bit Size, 16-Ext Bit, 1000MHz, CMOS, PBGA625 RoHS: Compliant Status: Active Min Qty: 1 6
  • 25 $79.6500
  • 100 $75.6700
  • 500 $71.6900
  • 1,000 $67.7000
  • 10,000 $63.7200
$63.7200 / $79.6500 Buy Now
Ameya Holding Limited FCBGA 625/ Fixed and Floating Point Digital Signal Processor 27
RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 9
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Chip Stock Highperformancesingle-coreC66xfixedandfloating-pointDSP-upto1.25GHz625-FCBGA0to85 379
RFQ
Component Electronics, Inc BGA TRAY 4
  • 1 $126.9200
  • 100 $95.1900
  • 1,000 $82.5000
$82.5000 / $126.9200 Buy Now
LCSC 1.25GHz 32 FCBGA-625(21x21) DSP (Digital Signal Processors) RoHS 6
  • 1 $44.3733
  • 30 $42.7885
$42.7885 / $44.3733 Buy Now
Win Source Electronics Fixed and Floating-Point Digital Signal Processor | IC DSP FIX/FLOAT POINT 625FCBGA 254
  • 1 $64.4881
  • 2 $52.9134
  • 3 $51.2598
  • 5 $49.6063
  • 6 $47.9527
  • 7 $42.9921
$42.9921 / $64.4881 Buy Now

US Tariff Estimator: TMS320C6655CZH by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

TMS320C6655CZH
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for TMS320C6655CZH

TMS320C6655CZH Part Data Attributes

Parametric Data
TMS320C6655CZH Texas Instruments
Buy Now Datasheet
Compare Parts:
TMS320C6655CZH Texas Instruments High performance single-core C66x fixed and floating-point DSP- up to 1.25GHz 625-FCBGA 0 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active

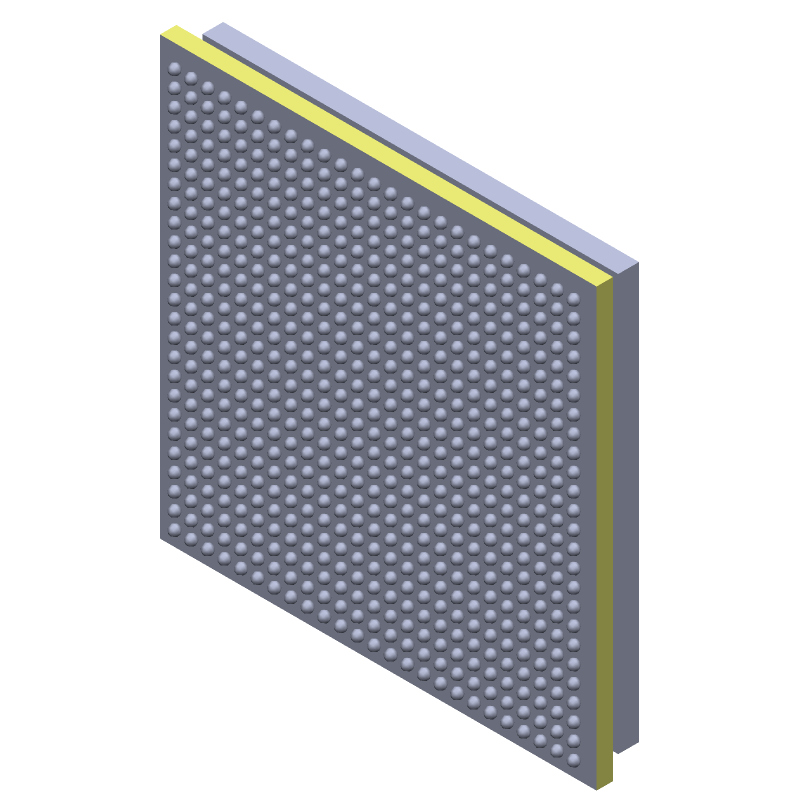

Part Package Code BGA
Package Description Fbga, Bga625,25x25,32
Pin Count 625
Reach Compliance Code Compliant
ECCN Code 5A991.B.1
HTS Code 8542.31.00.35
Address Bus Width 24
Barrel Shifter No
Bit Size 32
Boundary Scan Yes
Clock Frequency-Max 1000 Mhz
External Data Bus Width 16
Format Floating Point
Integrated Cache Yes
Internal Bus Architecture Multiple
JESD-30 Code S-PBGA-B625
JESD-609 Code e1
Length 21 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels 72
Number of Terminals 625
Number of Timers 8
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min
Package Body Material Plastic/Epoxy
Package Code FBGA
Package Equivalence Code BGA625,25X25,32
Package Shape Square
Package Style Grid Array, Fine Pitch
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
RAM (words) 8192
ROM Programmability Mrom
Seated Height-Max 2.99 Mm
Supply Voltage-Max 1.236 V
Supply Voltage-Min 1.164 V
Supply Voltage-Nom 1.2 V
Surface Mount Yes
Technology Cmos
Temperature Grade Other
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form Ball
Terminal Pitch 0.8 Mm
Terminal Position Bottom
Time@Peak Reflow Temperature-Max (s) 30
Width 21 Mm
uPs/uCs/Peripheral ICs Type Digital Signal Processor, Other

Alternate Parts for TMS320C6655CZH

This table gives cross-reference parts and alternative options found for TMS320C6655CZH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMS320C6655CZH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TMS320C6655GZHA Texas Instruments $59.2200 High performance single-core C66x fixed and floating-point DSP- up to 1.25GHz 625-FCBGA -40 to 100 TMS320C6655CZH vs TMS320C6655GZHA
TMS320C6655SCZH Texas Instruments Check for Price High performance single-core C66x fixed and floating-point DSP- up to 1.25GHz 625-FCBGA 0 to 85 TMS320C6655CZH vs TMS320C6655SCZH
TMS320C6655SCZHL Texas Instruments Check for Price IC 16-BIT, OTHER DSP, PBGA625, 21 X 21 MM, LEAD FREE, PLASTIC, BGA-625, Digital Signal Processor TMS320C6655CZH vs TMS320C6655SCZHL
TMS320C6655SCZHA Texas Instruments Check for Price IC 16-BIT, OTHER DSP, PBGA625, 21 X 21 MM, LEAD FREE, PLASTIC, BGA-625, Digital Signal Processor TMS320C6655CZH vs TMS320C6655SCZHA
TMS320C6655GZHL Texas Instruments Check for Price IC 16-BIT, OTHER DSP, PBGA625, 21 X 21 MM, PLASTIC, BGA-625, Digital Signal Processor TMS320C6655CZH vs TMS320C6655GZHL
TMS320C6655SGZHA Texas Instruments Check for Price IC 16-BIT, OTHER DSP, PBGA625, 21 X 21 MM, PLASTIC, BGA-625, Digital Signal Processor TMS320C6655CZH vs TMS320C6655SGZHA
equivalents icon

TMS320C6655CZH Related Parts

TMS320C6655CZH Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the TMS320C6655CZH is -40°C to 100°C.

  • The EMIF configuration for the TMS320C6655CZH is done through the EMIF Configuration Registers. Refer to the TMS320C6655CZH Technical Reference Manual for detailed information on configuring the EMIF.

  • The maximum frequency of the DDR3 interface on the TMS320C6655CZH is 1066 MHz.

  • The TMS320C6655CZH has a built-in watchdog timer module. To implement a watchdog timer, configure the Watchdog Timer Registers and enable the watchdog timer interrupt. Refer to the TMS320C6655CZH Technical Reference Manual for detailed information.

  • The maximum throughput of the PCIe interface on the TMS320C6655CZH is 5 Gbps.
