Part Details for TMS320C6713BPYP200 by Texas Instruments
Results Overview of TMS320C6713BPYP200 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320C6713BPYP200 Information
TMS320C6713BPYP200 by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320C6713BPYP200
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH5637
|
Newark | 16Bit Dsp, Smd, 320C6713, Tqfp208, Dsp Type:Floating Point, No. Of Bits:32/64Bit, Frequency:200Mhz, Flash Memory Size:-, Dsp Case Style:Lqfp, No. Of Pins:208Pins, No. Of I/O S:16I/O S, No. Of Mips:-, Embedded Interface Type:Hpi, Rohs Compliant: Yes |Texas Instruments TMS320C6713BPYP200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$32.9700 / $35.6500 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 36 |
|
$21.4422 / $22.3008 | Buy Now |
|
|
Bristol Electronics | 6 |
|
RFQ | ||
|
DISTI #
TMS320C6713BPYP200
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray | 77 |
|
$19.9000 / $35.9000 | Buy Now |
|
|
LCSC | LQFP-208-EP(28x28) DSP (Digital Signal Processors) RoHS | 3 |
|
$28.6957 / $30.2240 | Buy Now |
US Tariff Estimator: TMS320C6713BPYP200 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TMS320C6713BPYP200
TMS320C6713BPYP200 CAD Models
-

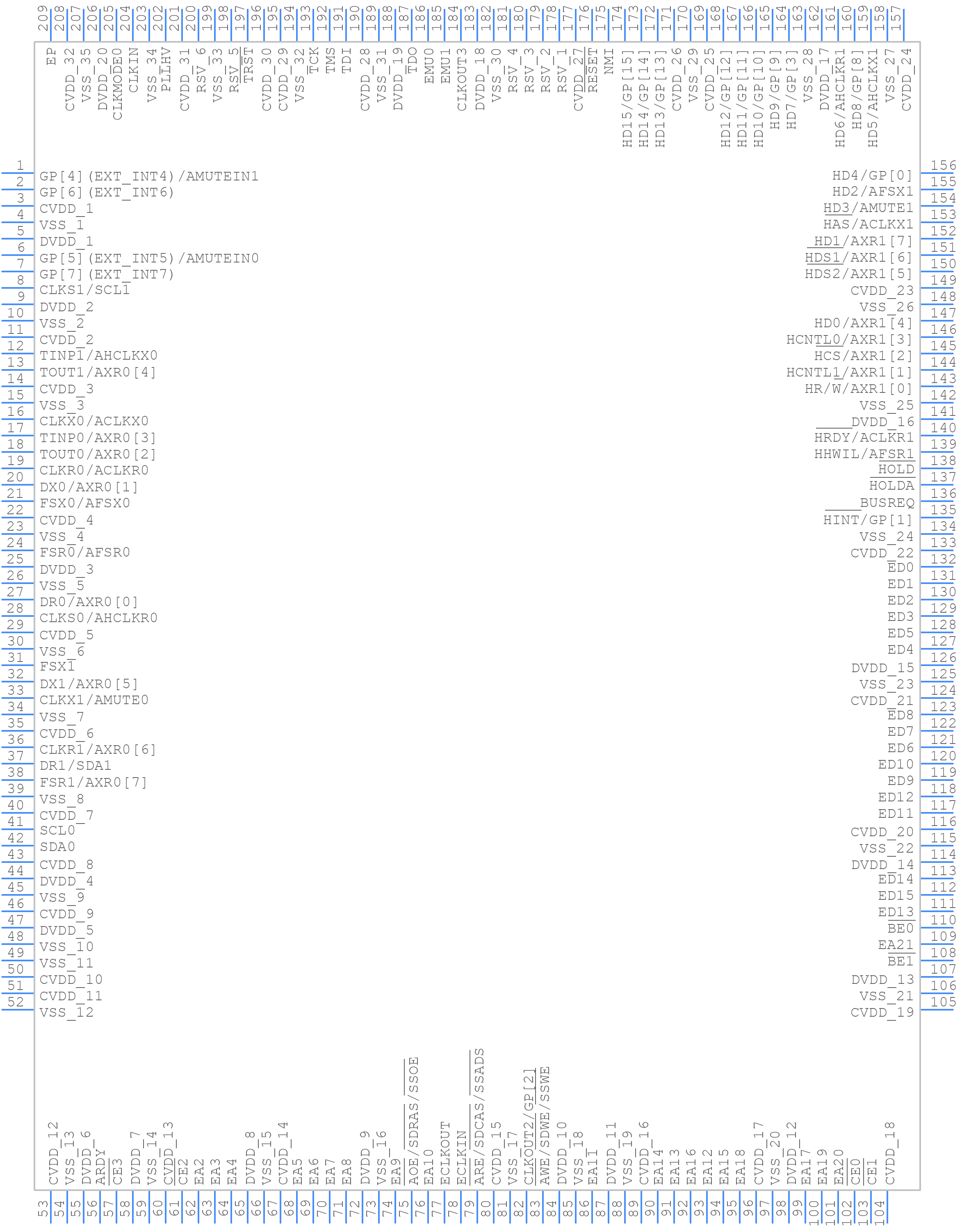

Part Symbol
-

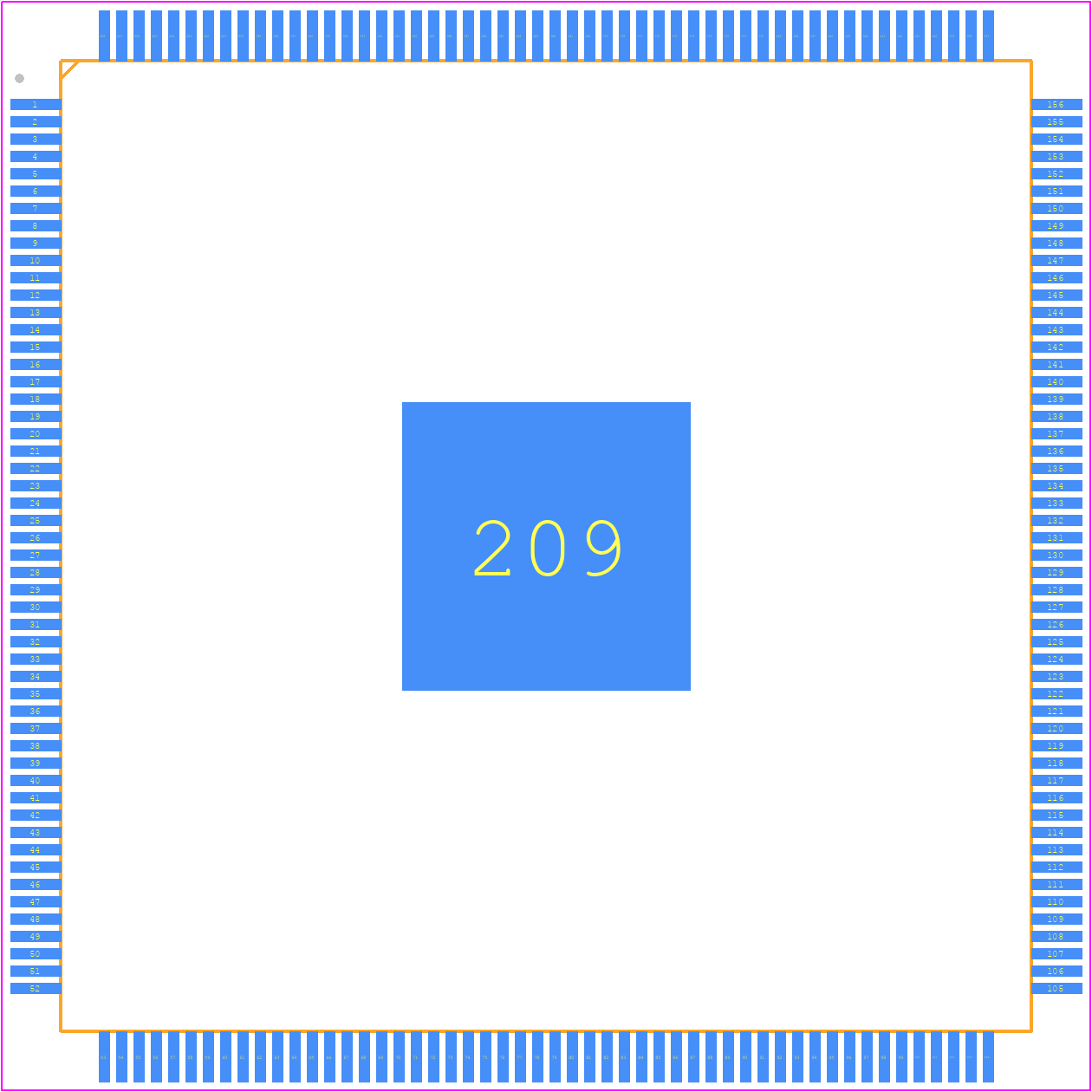

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TMS320C6713BPYP200 Part Data Attributes
|
|
TMS320C6713BPYP200
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320C6713BPYP200
Texas Instruments
C67x floating-point DSP- up to 300MHz, McBSP, 16-Bit EMIFA 208-HLQFP 0 to 90
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | HLFQFP, QFP208,1.2SQ,20 | |
| Pin Count | 208 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.35 | |
| Samacsys Manufacturer | Texas Instruments | |
| Address Bus Width | 22 | |
| Barrel Shifter | NO | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 200 MHz | |
| External Data Bus Width | 32 | |
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PQFP-G208 | |
| JESD-609 Code | e4 | |
| Length | 28 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 4 | |
| Number of DMA Channels | 16 | |
| Number of External Interrupts | 4 | |
| Number of Terminals | 208 | |
| Number of Timers | 2 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLFQFP | |
| Package Equivalence Code | QFP208,1.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 65536 | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 28 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
Alternate Parts for TMS320C6713BPYP200
This table gives cross-reference parts and alternative options found for TMS320C6713BPYP200. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMS320C6713BPYP200, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMS320C6713PYPX200 | Texas Instruments | Check for Price | Floating-Point Digital Signal Processor 208-HLQFP | TMS320C6713BPYP200 vs TMS320C6713PYPX200 |
| TMS320C6713PYP200B | Texas Instruments | Check for Price | Floating-Point Digital Signal Processor 208-HLQFP | TMS320C6713BPYP200 vs TMS320C6713PYP200B |
TMS320C6713BPYP200 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TMS320C6713BPYP200 is -40°C to 100°C.
-
To optimize power consumption, use the low-power modes (Idle, Standby, and Shutdown), reduce the clock frequency, and minimize the use of peripherals when not needed.
-
The maximum clock frequency supported by the TMS320C6713BPYP200 is 225 MHz.
-
Implement a boot loader by using the ROM boot loader, creating a custom boot loader using the DSP's flash memory, or using a third-party boot loader.
-
The maximum amount of external memory that can be interfaced with the TMS320C6713BPYP200 is 16MB of asynchronous memory and 64MB of synchronous memory.
