TMS320F28034PAGT Information
TMS320F28034PAGT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMS320F28034PAGT | Texas Instruments | Piccolo™ 32-bit MCU with 60 MHz, 128 KB Flash 64-TQFP -40 to 105 |
Price & Stock for TMS320F28034PAGT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
LCSC | Other Series 60MHz 33 TQFP-64(10x10) Microcontrollers RoHS | 313 |
|
$2.0864 / $3.1264 | Buy Now |
|
|
Win Source Electronics | Piccolo Microcontrollers | 20000 |
|
$1.9962 / $2.9942 | Buy Now |
US Tariff Estimator: TMS320F28034PAGT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TMS320F28034PAGT
TMS320F28034PAGT CAD Models
-

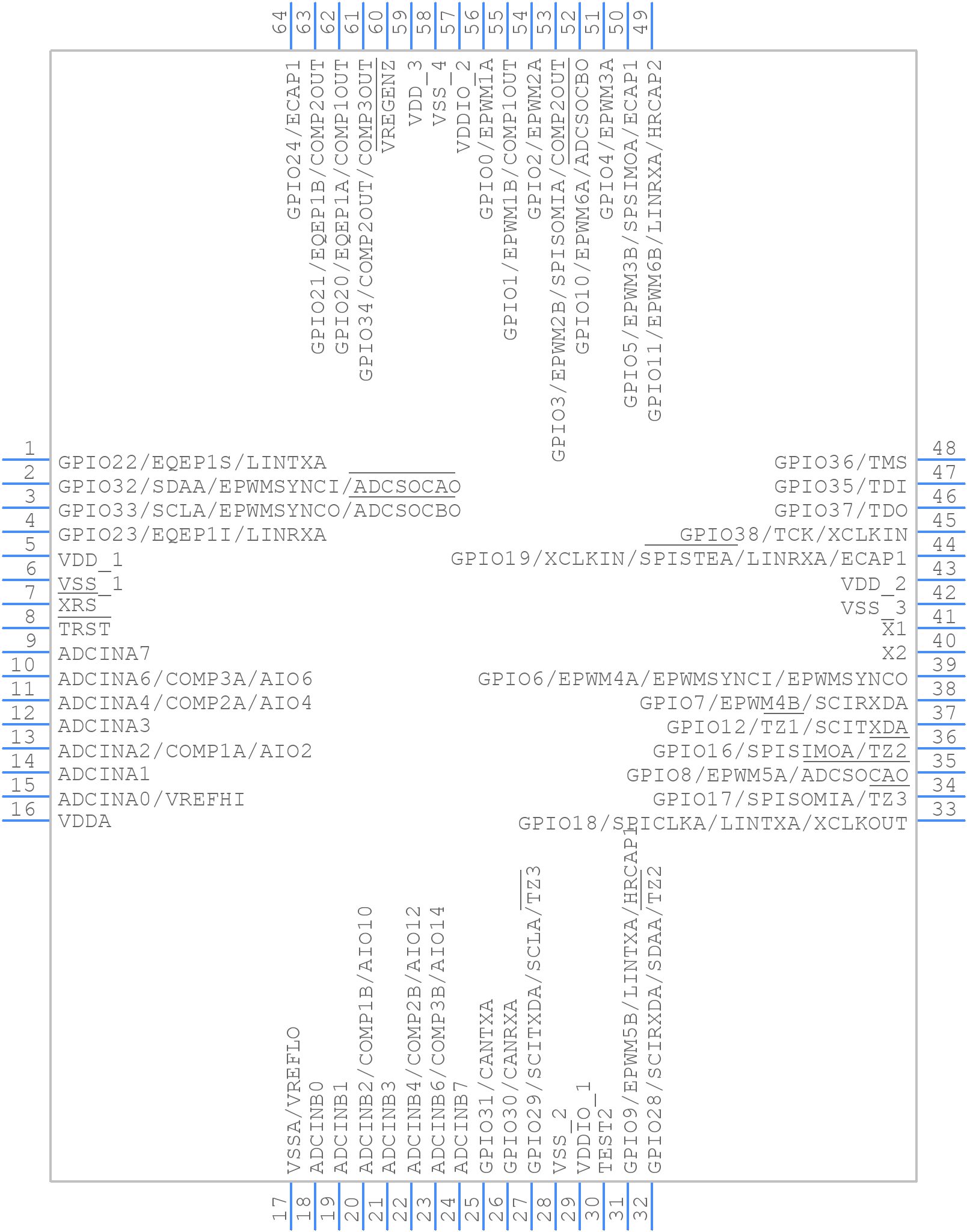

Part Symbol
-
