Part Details for TPS2111PWR by Texas Instruments
Results Overview of TPS2111PWR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Renewable Energy
Telecommunications
Entertainment and Gaming
TPS2111PWR Information
TPS2111PWR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS2111PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | ICORCTRLRSRCSELECT8TSSOPORControllerSourceSelectorSwitchN-Channel2:18-TSSOP | 8000 |
|
RFQ | |
|
|
Win Source Electronics | IC OR CTRLR SRC SELECT 8TSSOP | 6500 |
|
$1.3488 / $2.0233 | Buy Now |
US Tariff Estimator: TPS2111PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS2111PWR
TPS2111PWR CAD Models
-

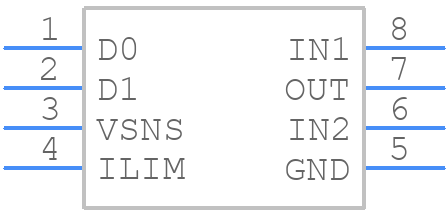

Part Symbol
-

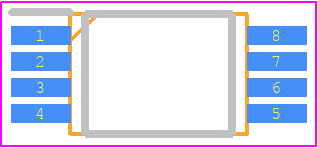

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS2111PWR Part Data Attributes
|
|
TPS2111PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS2111PWR
Texas Instruments
2.8-V to 5.5-V, 84-mΩ, 1.25-A, power mux with manual, automatic and slow switchover 8-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Tssop, Tssop8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Can Switch A Voltage As Low As 1.5v As Long As There Is A Min Of 2.8v At One Of The I/P Power Pins | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Power Supply Support Circuit | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max (Isup) | 0.09 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.5 V | |
| Supply Voltage-Nom (Vsup) | 2.8 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for TPS2111PWR
This table gives cross-reference parts and alternative options found for TPS2111PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS2111PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS2111PWG4 | Texas Instruments | Check for Price | Dual In/Single Out Autoswitching Power MUX, Manual/Auto Sw, Adj. Cur Limit, Adj. Vol Threshold 8-TSSOP -40 to 85 | TPS2111PWR vs TPS2111PWG4 |
| TPS2111PWRG4 | Texas Instruments | Check for Price | Dual In/Single Out Autoswitching Power MUX, Manual/Auto Sw, Adj. Cur Limit, Adj. Vol Threshold 8-TSSOP -40 to 85 | TPS2111PWR vs TPS2111PWRG4 |
TPS2111PWR Frequently Asked Questions (FAQ)
-
The maximum current rating of the TPS2111PWR is 2A per channel, with a total current limit of 4A for both channels combined.
-
To configure the TPS2111PWR for automatic switching, connect the USBIN pin to the USB power source, and the BAT pin to the battery. The device will automatically switch between the two power sources based on the availability of USB power.
-
The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled and power is switched to the output. When the EN pin is low, the device is disabled and power is disconnected from the output.
-
The TPS2111PWR has built-in overcurrent protection, which limits the output current to prevent damage to the device or the load. If the output current exceeds the limit, the device will automatically limit the current to prevent damage.
-
The operating temperature range of the TPS2111PWR is -40°C to 85°C.
