TPS25921ADR Information
TPS25921ADR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS25921ADR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3123437
|
Farnell | EFUSE W/PRECISE CURRT LIMT/OV PROTECTION COO: MX RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Cut Tape | 849 |
|
$0.7401 / $1.5118 | Buy Now |
|
DISTI #
3123437RL
|
Farnell | EFUSE W/PRECISE CURRT LIMT/OV PROTECTION COO: MX RoHS: Compliant Min Qty: 100 Lead time: 53 Weeks, 2 Days Container: Reel | 849 |
|
$0.7401 / $0.8834 | Buy Now |
|
DISTI #
TPS25921ADR
|
TME | IC: eFuse, 0.4÷1.6A, SMD, SO8, reel,tape, -40÷85°C Min Qty: 1 | 250 |
|
$0.8600 / $1.5100 | Buy Now |
|
|
Chip Stock | 4.5-Vto18-V,90mΩ,0.4-1.6AeFusewithautoretryfaultresponse8-SOIC-40to85 | 34700 |
|
RFQ | |
|
|
Chip Stock | 24000 |
|
RFQ | ||
|
|
Win Source Electronics | IC PWR MGR EFUSE 18V 8SOIC / Precise Current Limit and Over Voltage Protection | 31800 |
|
$0.4286 / $0.5535 | Buy Now |
US Tariff Estimator: TPS25921ADR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS25921ADR
TPS25921ADR CAD Models
-

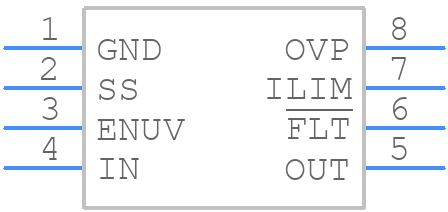

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS25921ADR Part Data Attributes
|
|
TPS25921ADR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS25921ADR
Texas Instruments
4.5-V to 18-V, 90mΩ, 0.4-1.6A eFuse with auto retry fault response 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Son, Sop8,.25 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Efuse | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1.6 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SON | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 0.58 Ma | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Threshold Voltage-Nom | +1.39v | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
